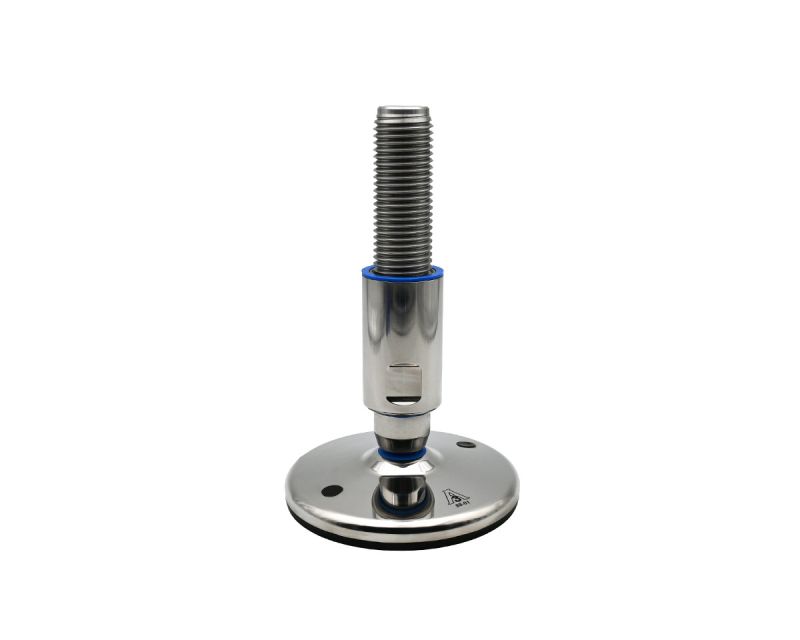

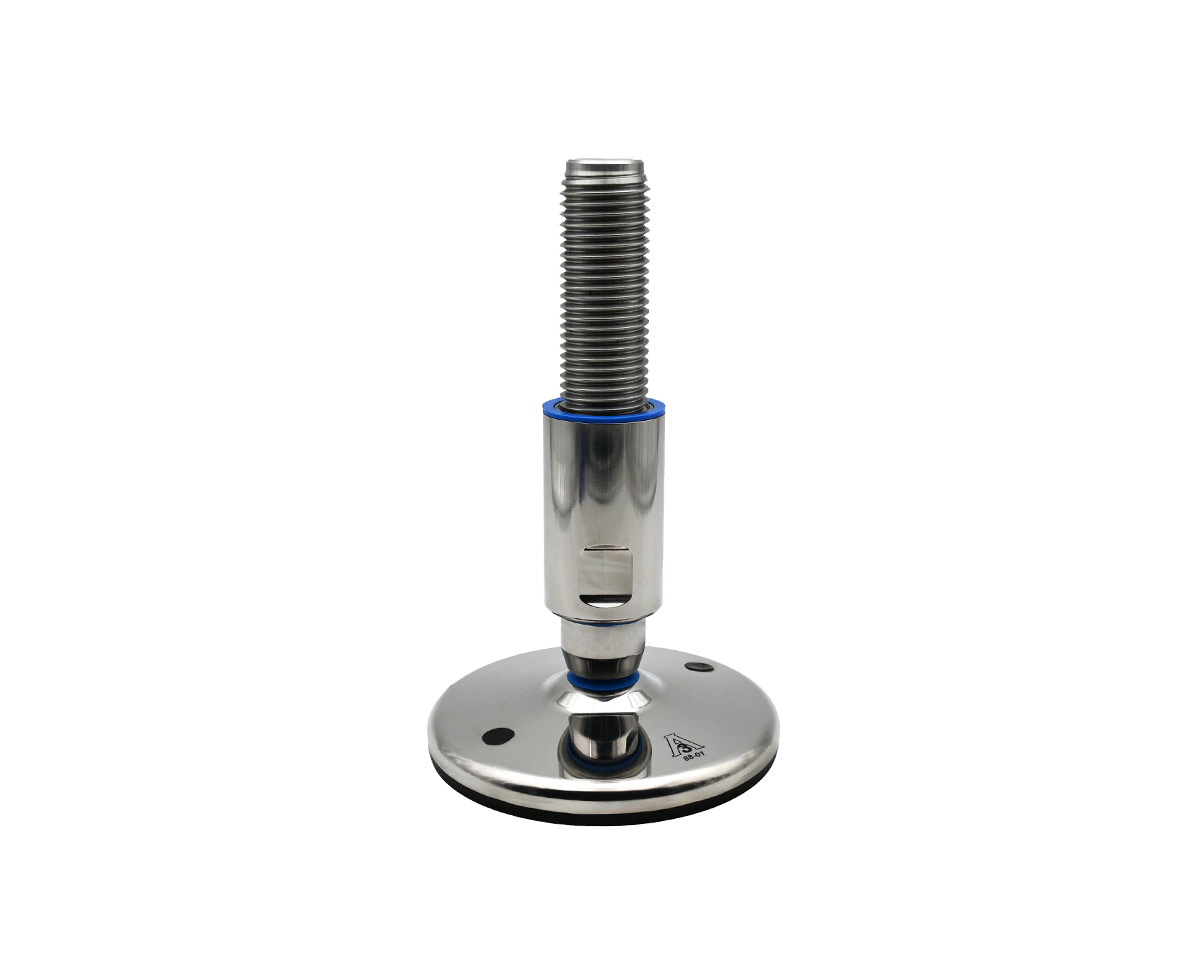

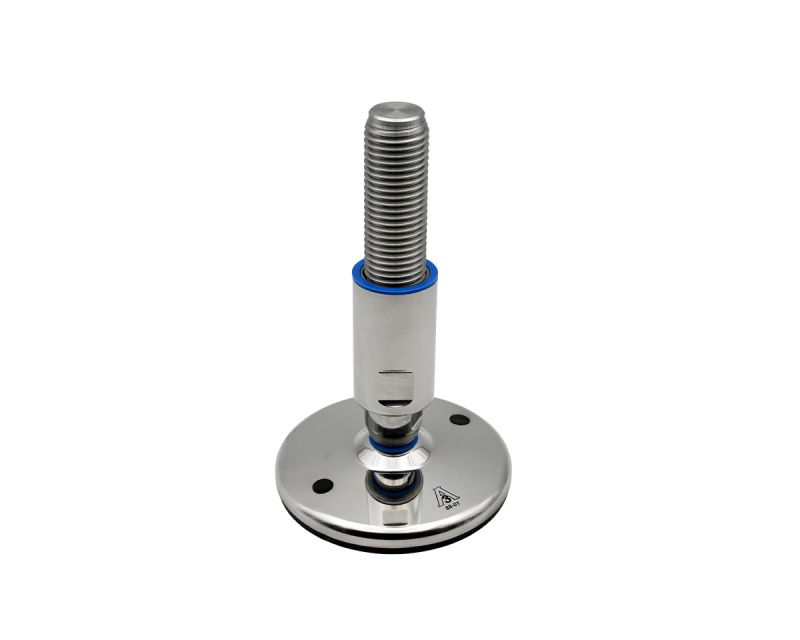

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M36 x 185 mm, Drills, NBR

EAN 4061408111541

Type 45827427F/3A

Ensure stability and hygiene in your applications with the TEKNO-HYGIENIC 3-A leveling foot. Featuring a stainless steel design, adjustable range, and 3-A certification, it's perfect for demanding environments.

Constructed from high-quality stainless steel for enhanced durability and corrosion resistance
Designed with a 15° articulated screw and an adjustment range of 65 mm for precise levelling
Features a robust static load capacity of up to 80,000 N, making it suitable for heavy-duty applications
Complies with the 3-A Sanitary Standard, ensuring optimal hygiene for sensitive environments
Equipped with non-slip NBR rubber to provide stable support and prevent slippage on various surfaces

Quantity	Price
From 1	€127.46*
From 13	€124.69*
From 41	€122.84*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€127.46* / piece

Our payment methods:

Accessories

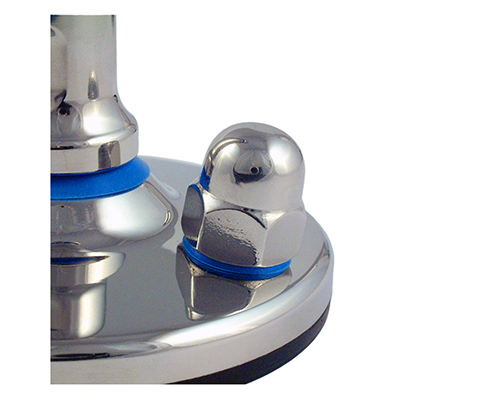

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	131-230
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	36
Spindle length (mm):	185
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M36 x 185 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 80.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
