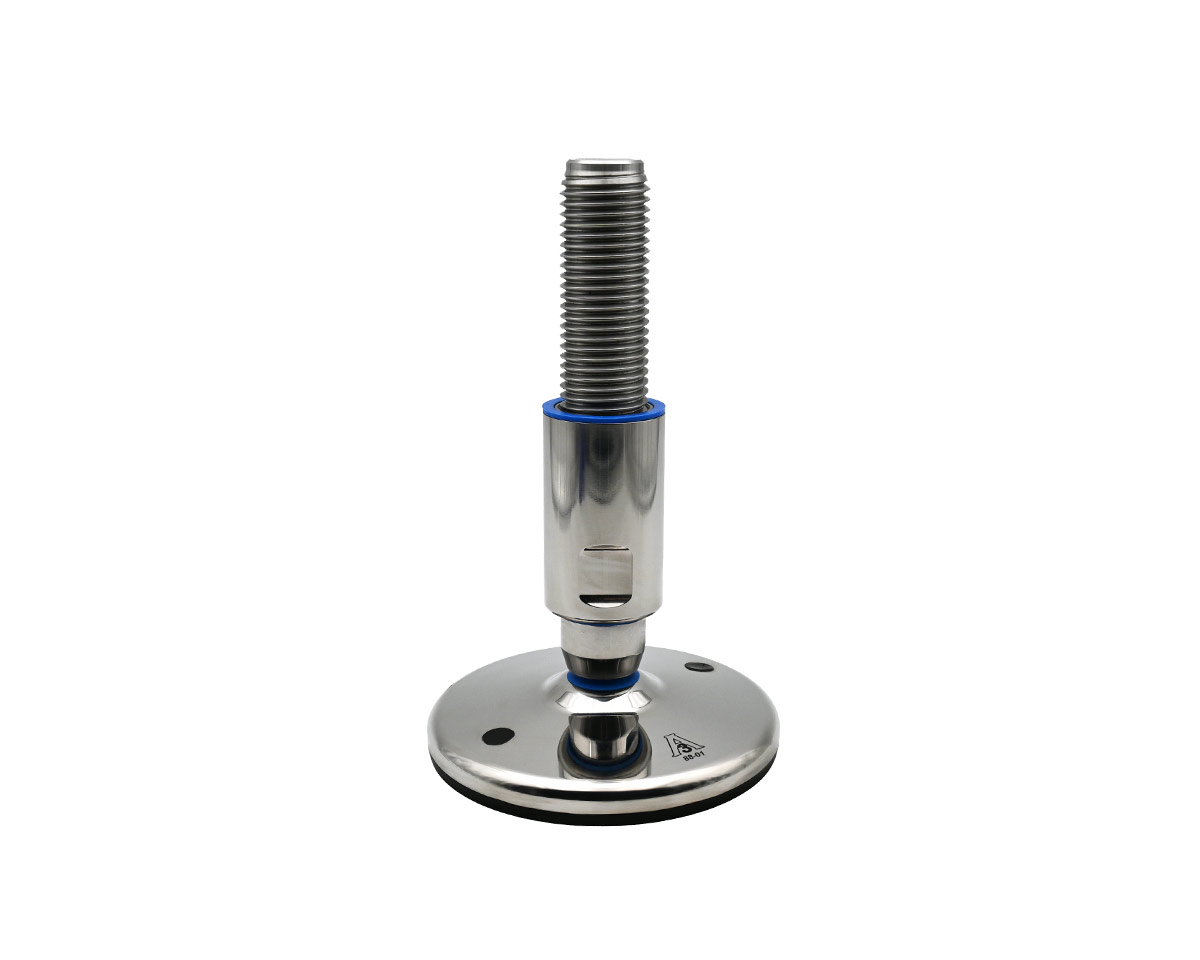

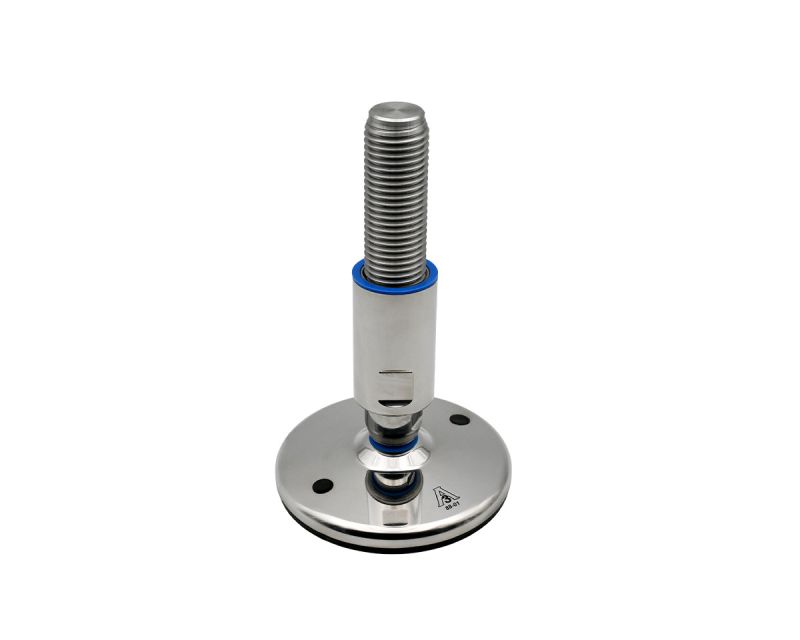

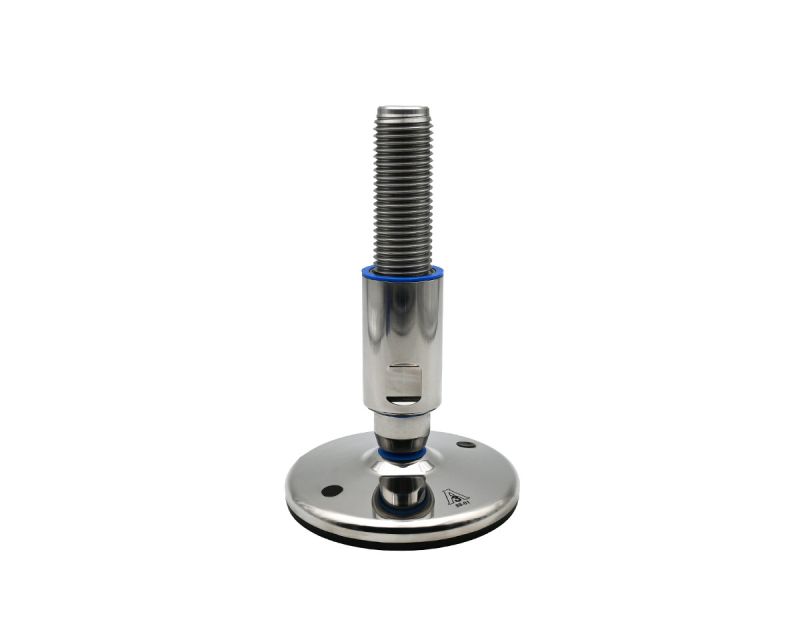

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 235 mm, Drills, NBR

EAN 4061408111527

Type 45827423F/3A

Optimize your equipment stability with the TEKNO-HYGIENIC 3-A leveling foot. Made of stainless steel with a hygienic 3-A certification, it supports static loads up to 80,000 N.

High load capacity of up to 80,000 N, ensuring stability in demanding applications
Constructed from stainless steel for corrosion resistance and durability in hygiene-sensitive environments
Features an articulated screw design allowing for 15° adjustment angle and a total height of 293 mm
Equipped with an anti-slip NBR base to prevent movement and enhance stability
Certified to the 3-A Sanitary Standard, making it ideal for use in hygiene-critical settings

Quantity	Price
From 1	€116.73*
From 13	€114.20*
From 41	€112.50*

Currently sold out, Refill time: 5 days

€116.73* / piece

Our payment methods:

Accessories

In Stock

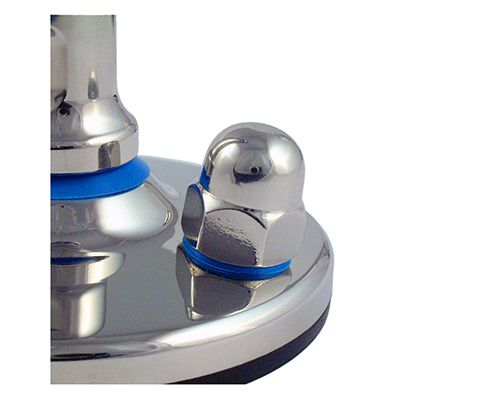

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€5.87*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	131-230
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	235
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

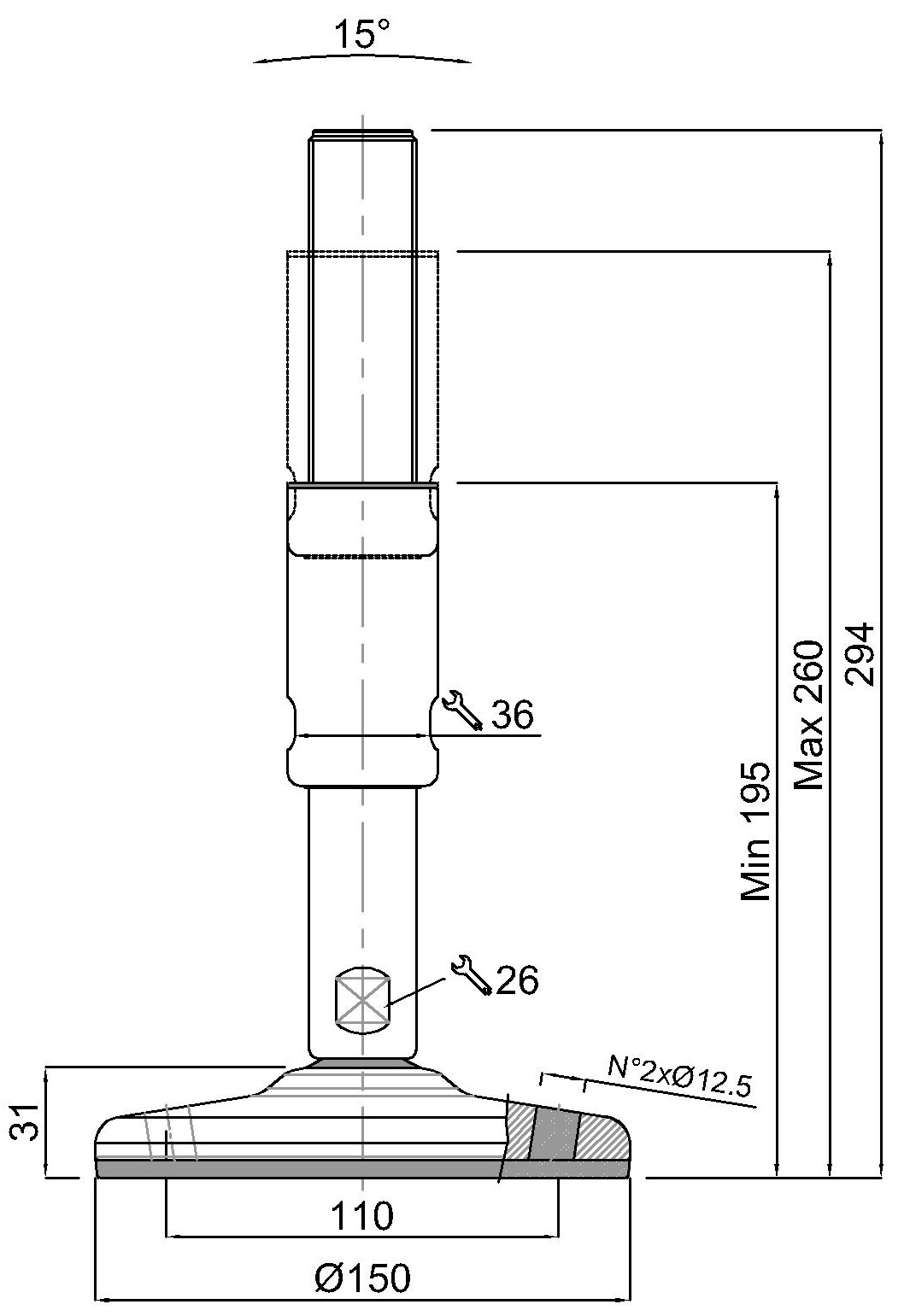

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 235 mm, Stainlees steel, Total height 293 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 80.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
