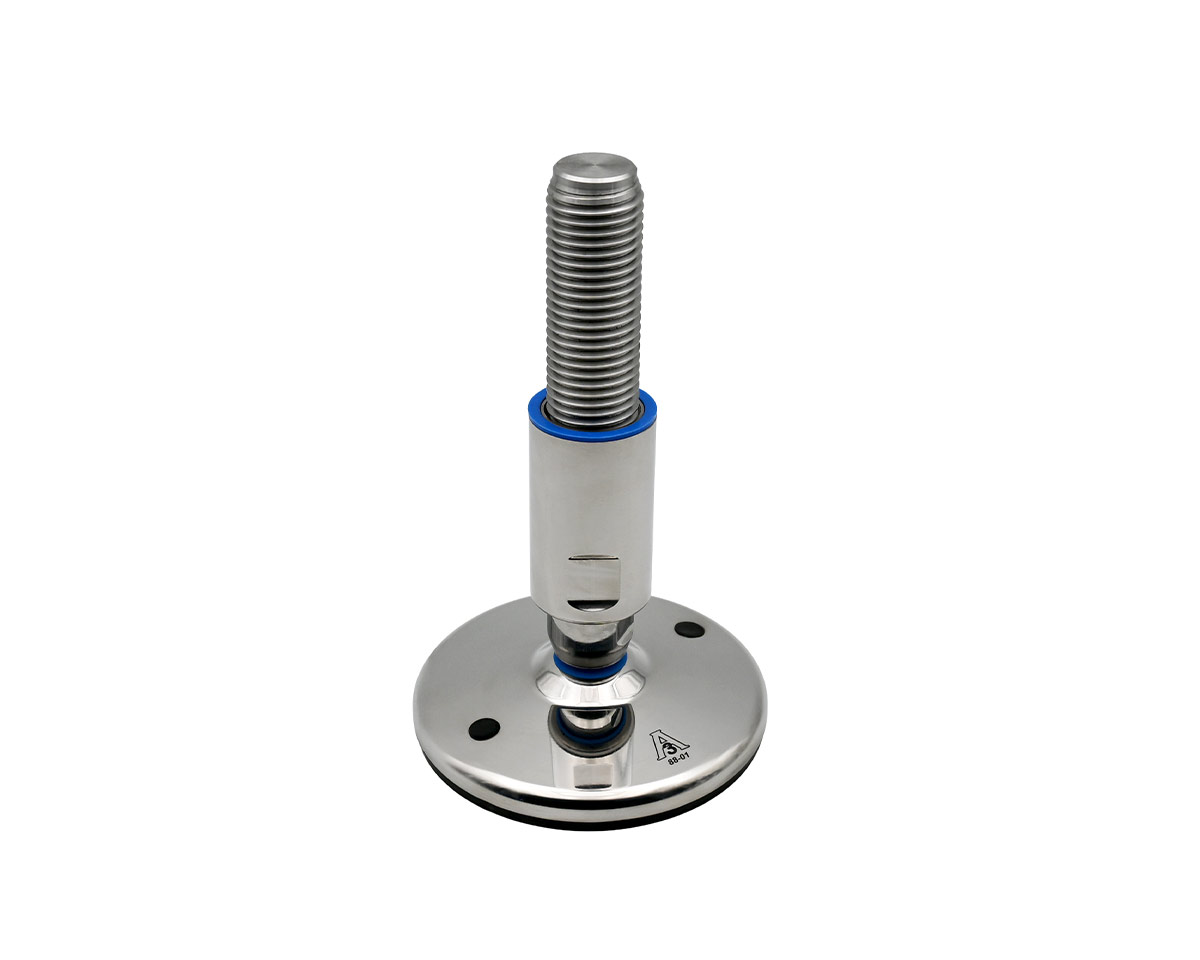

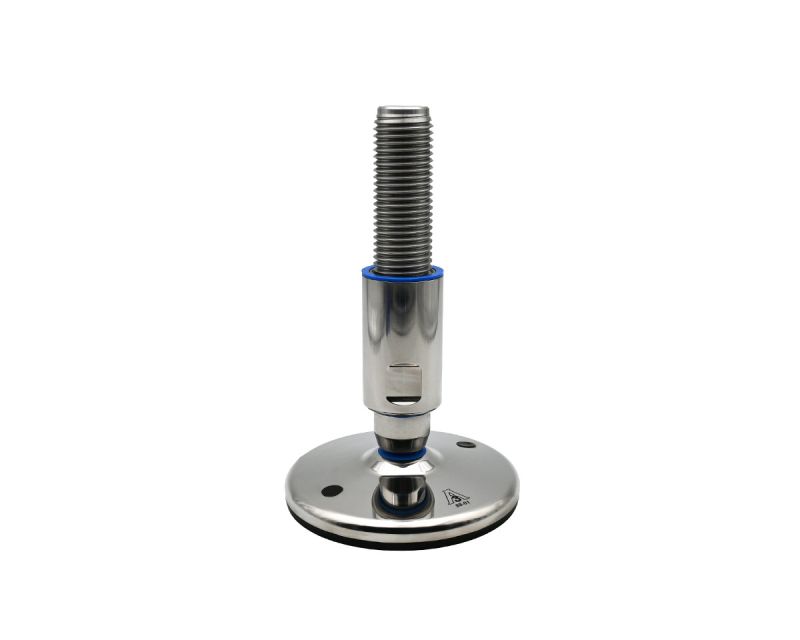

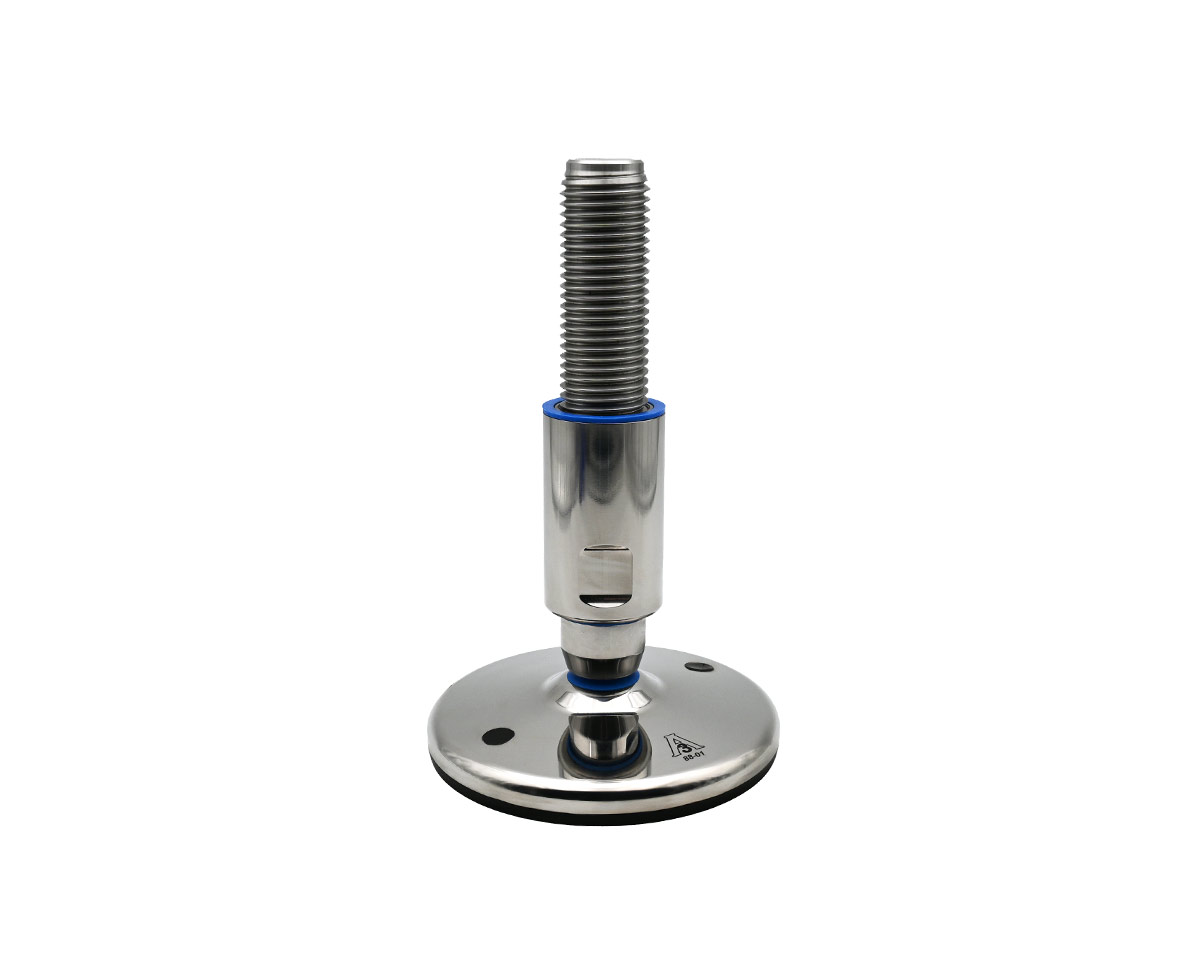

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 185 mm, Drills, NBR

EAN 4061408111510

Type 45827421F/3A

Introducing the TEKNO-HYGIENIC 3-A leveling foot: robust stainless steel construction, 15° articulation, optimal for sanitary applications. Features a 65 mm adjustment range and withstands static loads up to 80,000 N.

Constructed from durable stainless steel for long-lasting performance in harsh environments.
Features a hygienic design with 3-A Sanitary Certification, ensuring compliance with health standards.
Adjustable height with a total adjustment range of 65 mm and a 15° articulated screw for enhanced flexibility.
Secure and stable with a static load capacity of 80,000 N and non-slip NBR base for increased traction.
Easy installation with dual bore holes (Ø 12.5 mm) for reliable floor anchoring and stability.

Quantity	Price
From 1	€113.33*
From 13	€110.86*
From 41	€109.22*

4 on stock, Refill time: 5 days

€113.33* / piece

Our payment methods:

Accessories

In Stock

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€5.87*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	131-230
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	185
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

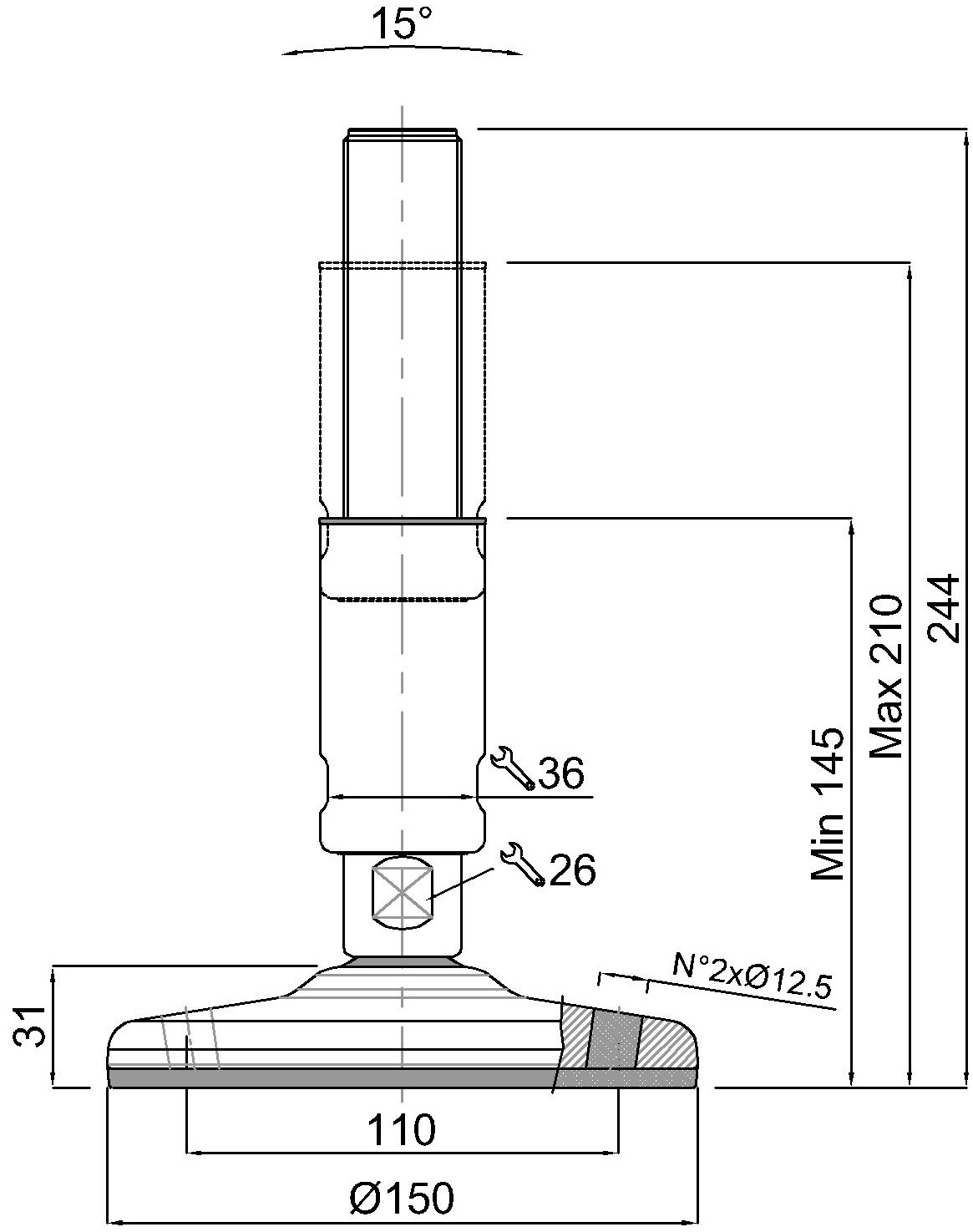

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 185 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 80.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
