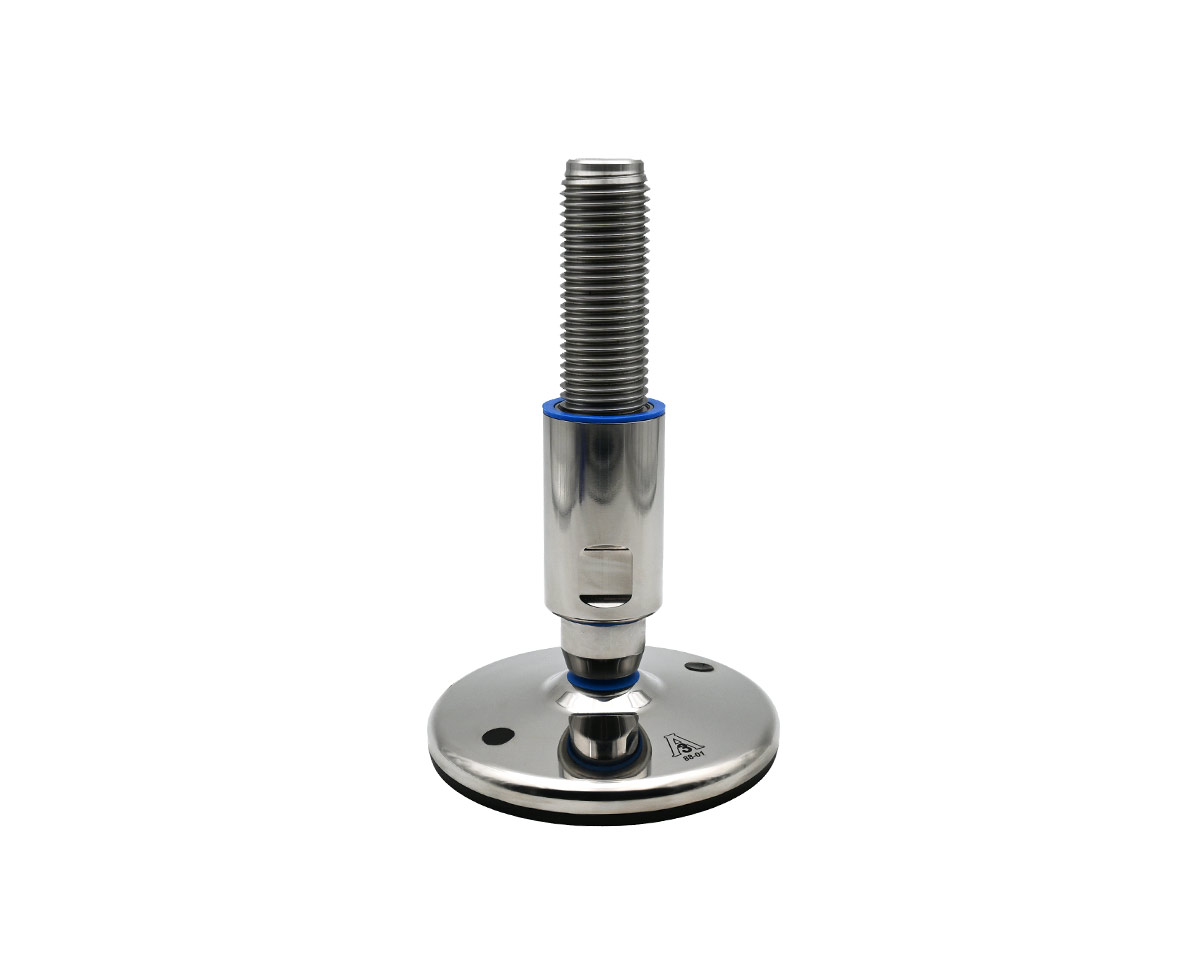

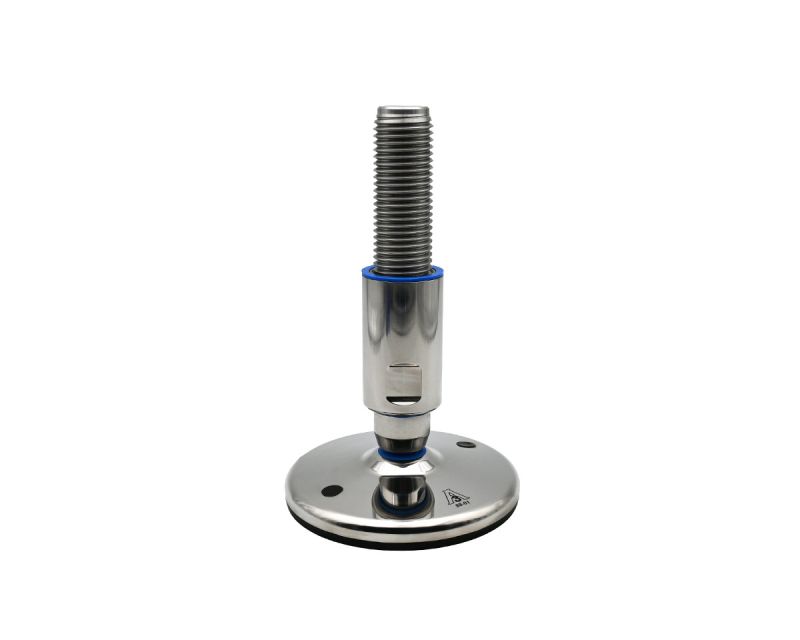

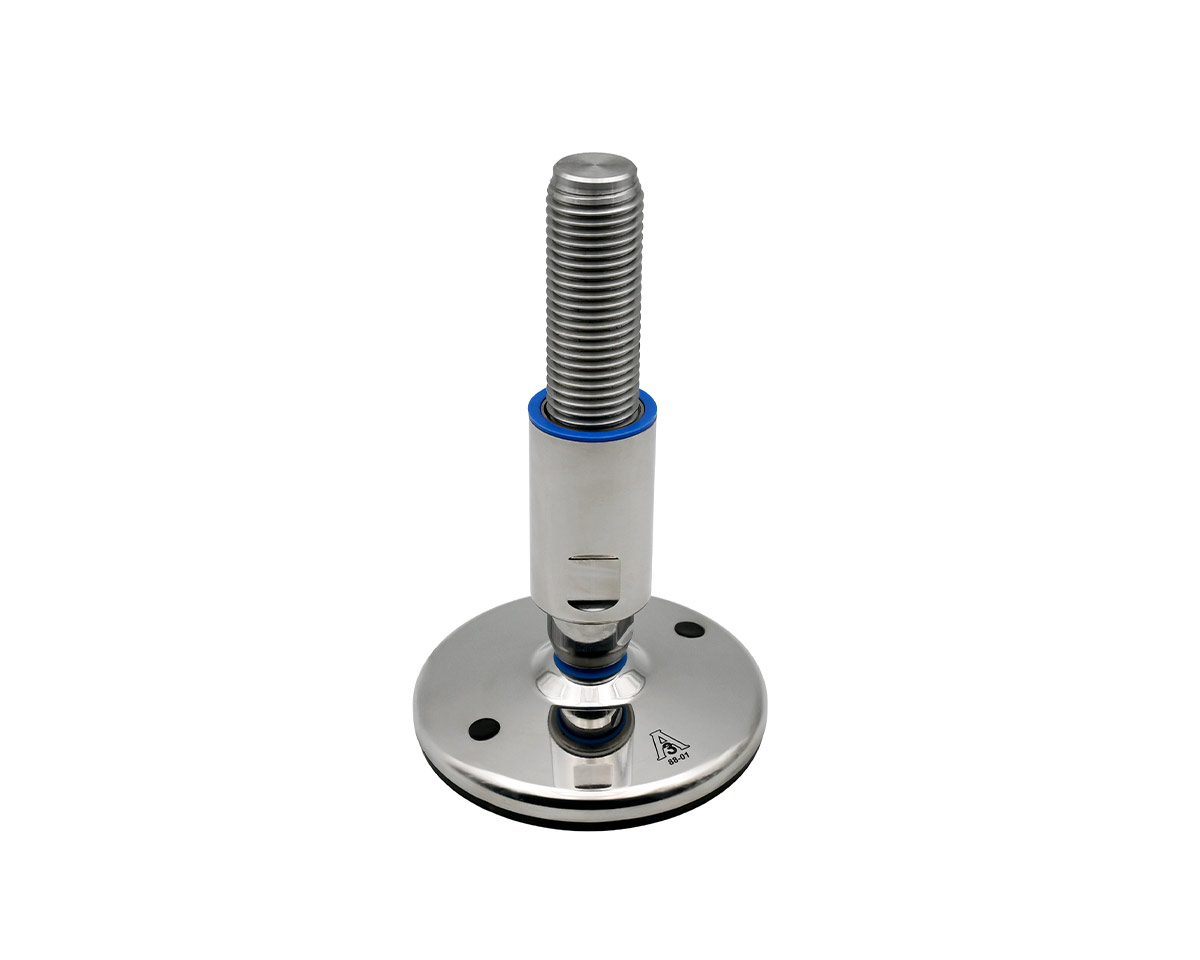

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M36 x 235 mm, Drills, NBR

EAN 4061408111466

Type 45827403F/3A

Enhance efficiency with the TEKNO-HYGIENIC 3-A leveling foot. Crafted from stainless steel, featuring a robust design, hygienic certification, and up to 80,000 N static load capacity.

Constructed from high-grade stainless steel, offering excellent corrosion resistance and durability in demanding environments.
Features a unique 3-A Sanitary Standard certification, ensuring compliance with strict hygiene regulations for food and pharmaceutical industries.
Adjustable height range of 65 mm with an articulated screw allowing a maximum tilt of 15°, providing flexible leveling options.
Capable of supporting a static load of up to 80,000 N, making it suitable for heavy-duty applications.
Equipped with an antislip NBR base and two bore holes (Ø 12.5 mm) for secure mounting and stability.

Quantity	Price
From 1	€112.13*
From 13	€109.69*
From 41	€108.06*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€112.13* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	36
Spindle length (mm):	235
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

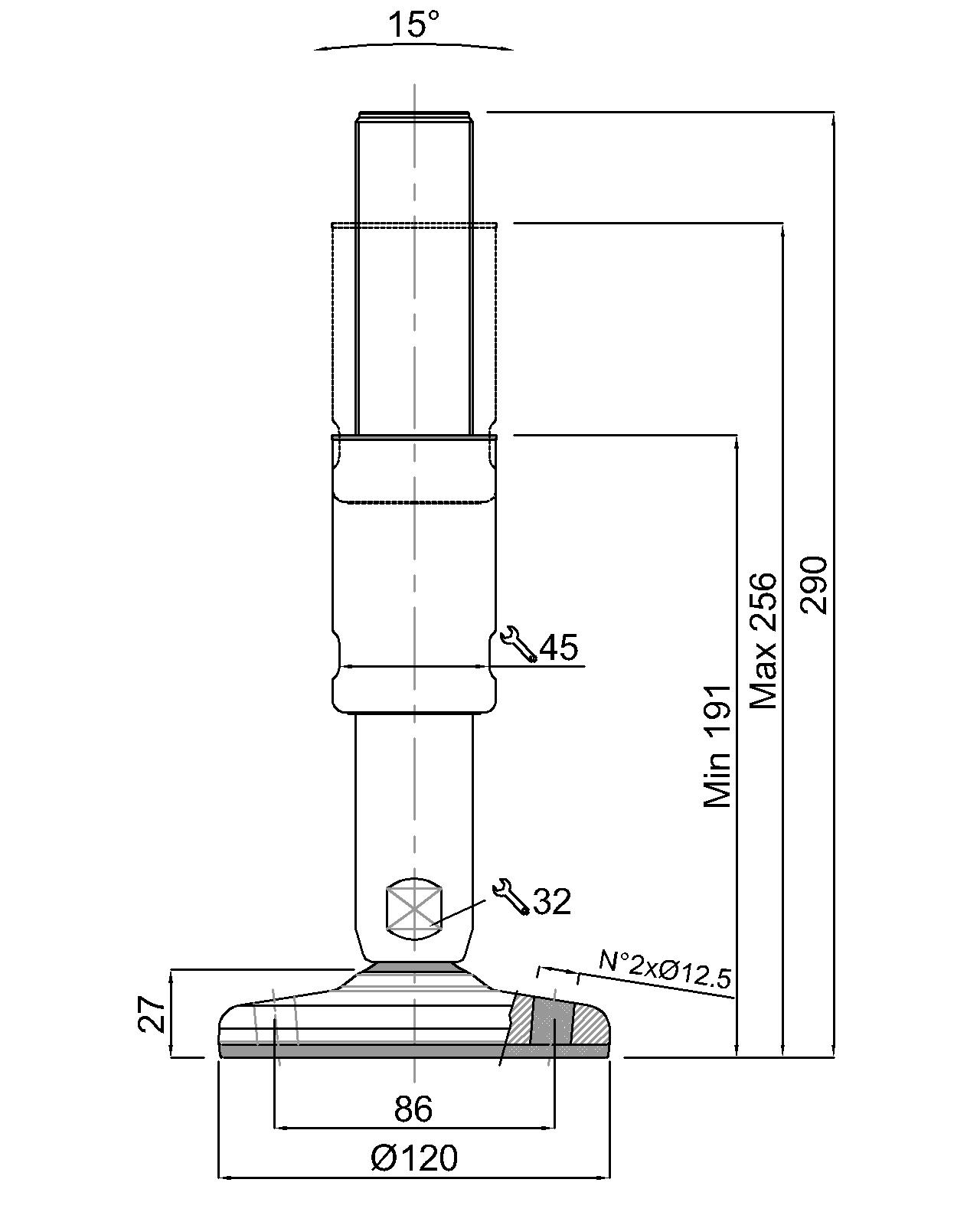

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M36 x 235 mm, Stainlees steel, Total height 290 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 80.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
