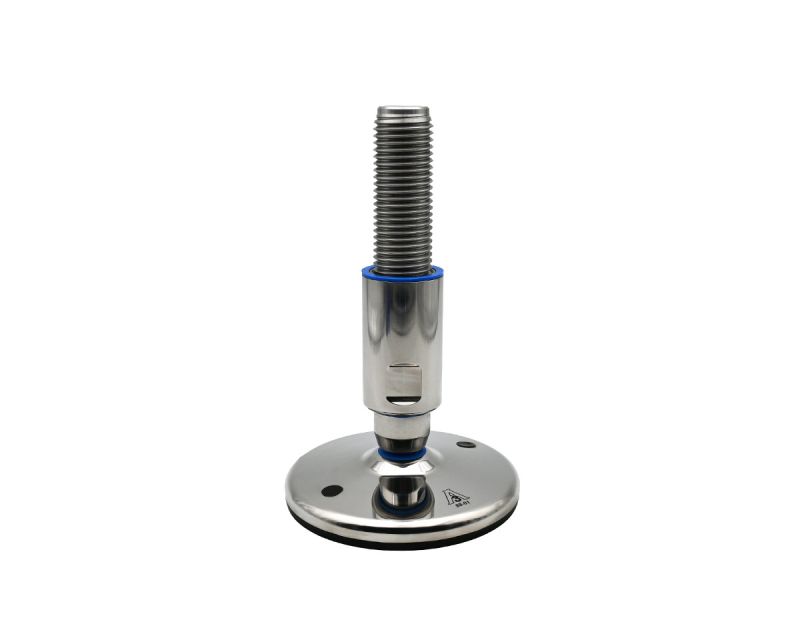

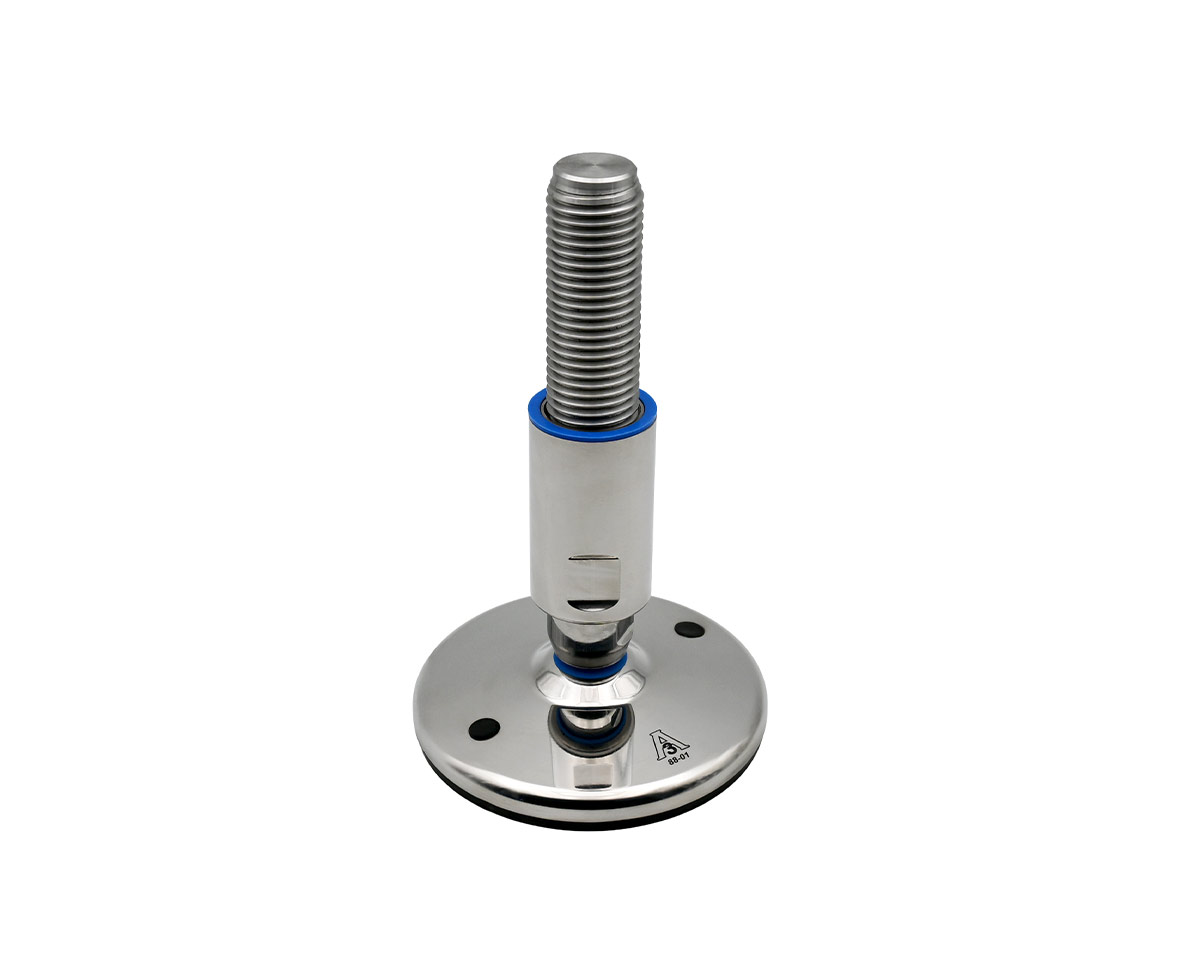

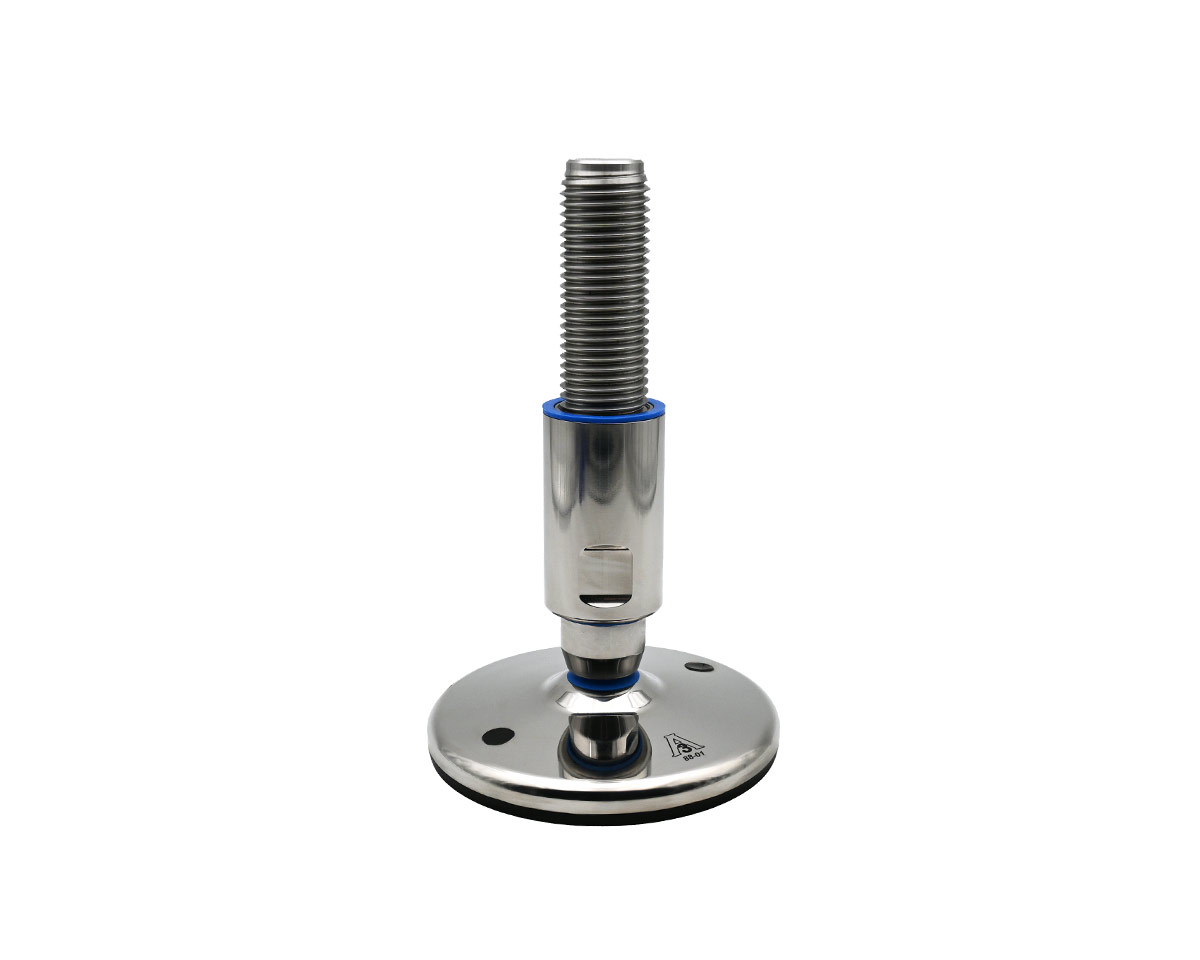

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M36 x 135 mm, Drills, NBR

EAN 4061408111442

Type 45827399F/3A

Experience superior stability and hygiene with the TEKNO-HYGIENIC 3-A leveling foot. Featuring a stainless steel design, adjustable height, and an anti-slip NBR base, it's perfect for demanding environments.

Made of high-quality stainless steel for enhanced durability and corrosion resistance
Hygienic design certified according to 3-A Sanitary Standard, ensuring compliance with stringent hygiene requirements
Adjustable height with a maximum adjustment range of 40 mm, providing flexibility for various applications
Features an articulated screw with a 15° tilt for precise leveling on uneven surfaces
Capable of supporting static loads up to 80,000 N, making it suitable for heavy-duty usage

Quantity	Price
From 1	€101.40*
From 13	€99.20*
From 41	€97.73*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€101.40* / piece

Our payment methods:

Accessories

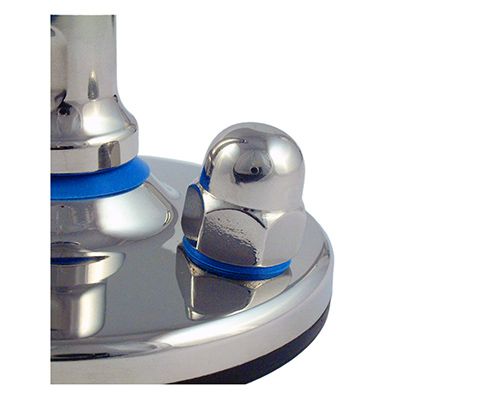

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	36
Spindle length (mm):	135
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

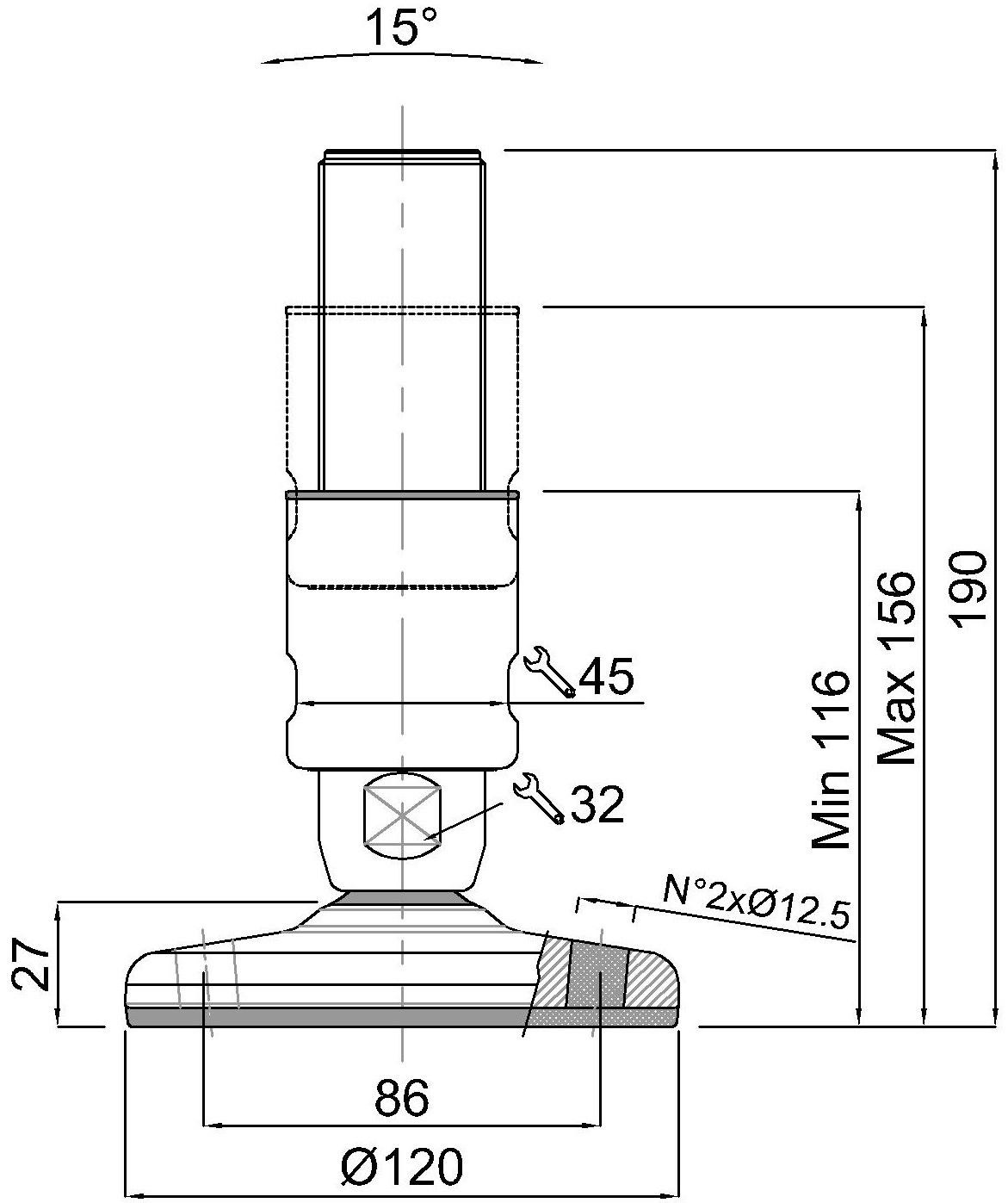

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M36 x 135 mm, Stainlees steel, Total height 190 mm, Articulated screw 15°, Adjustment range 40 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 80.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
