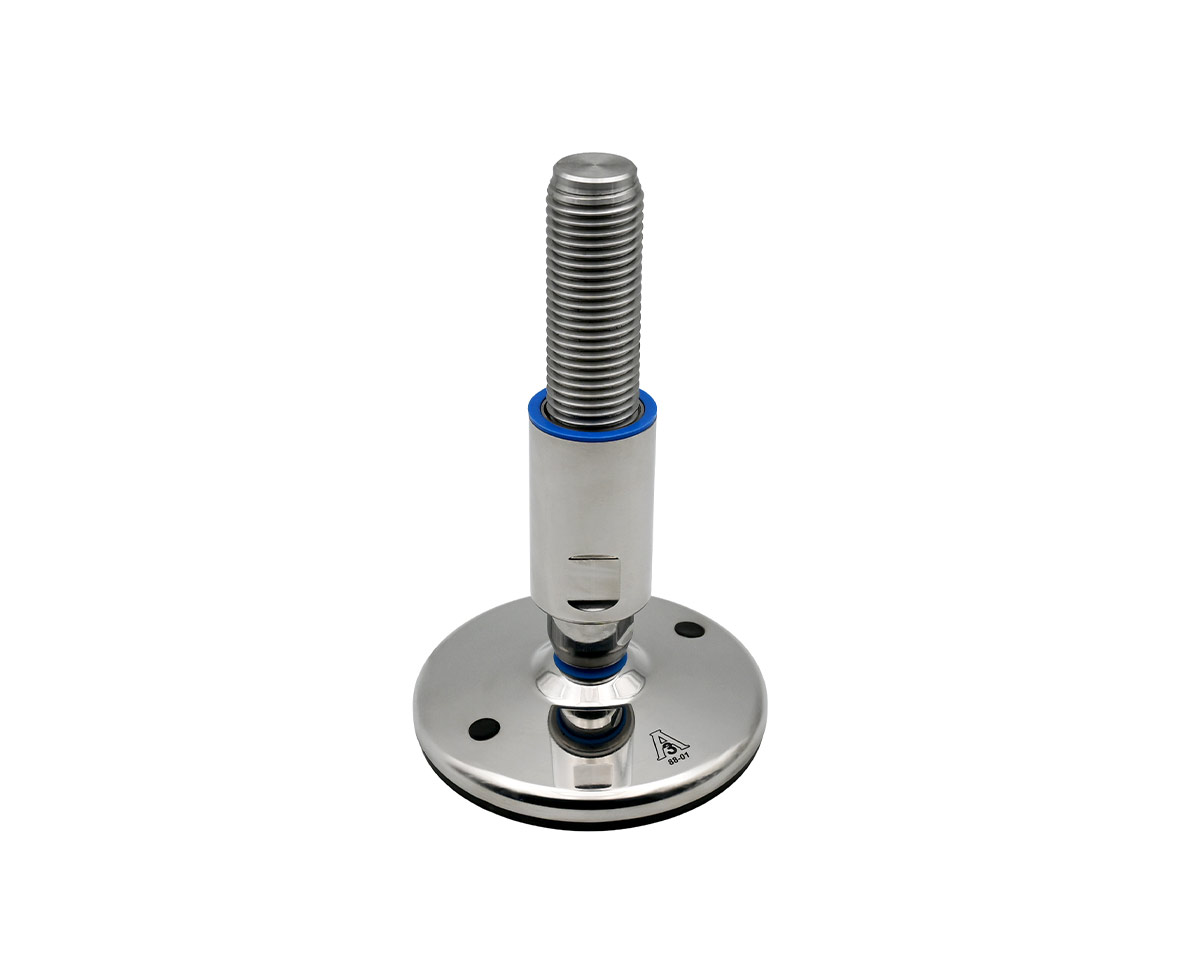

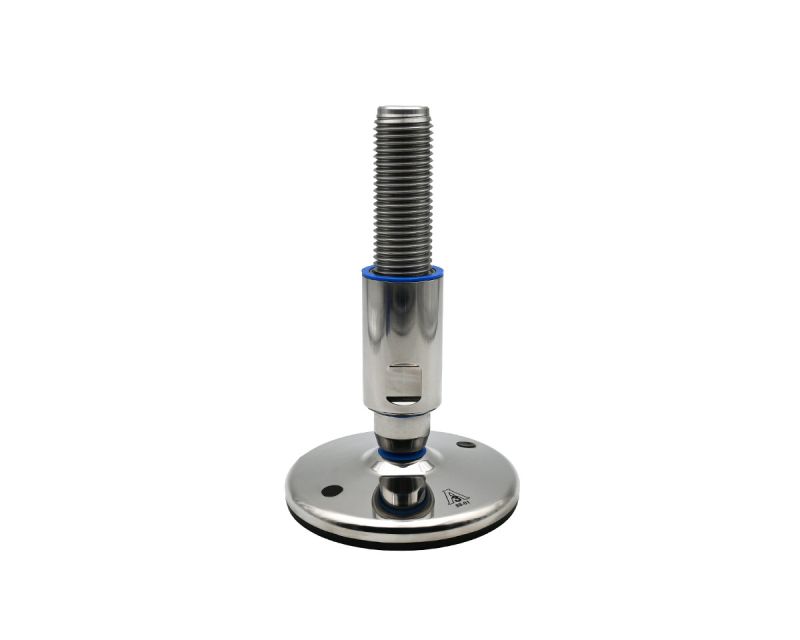

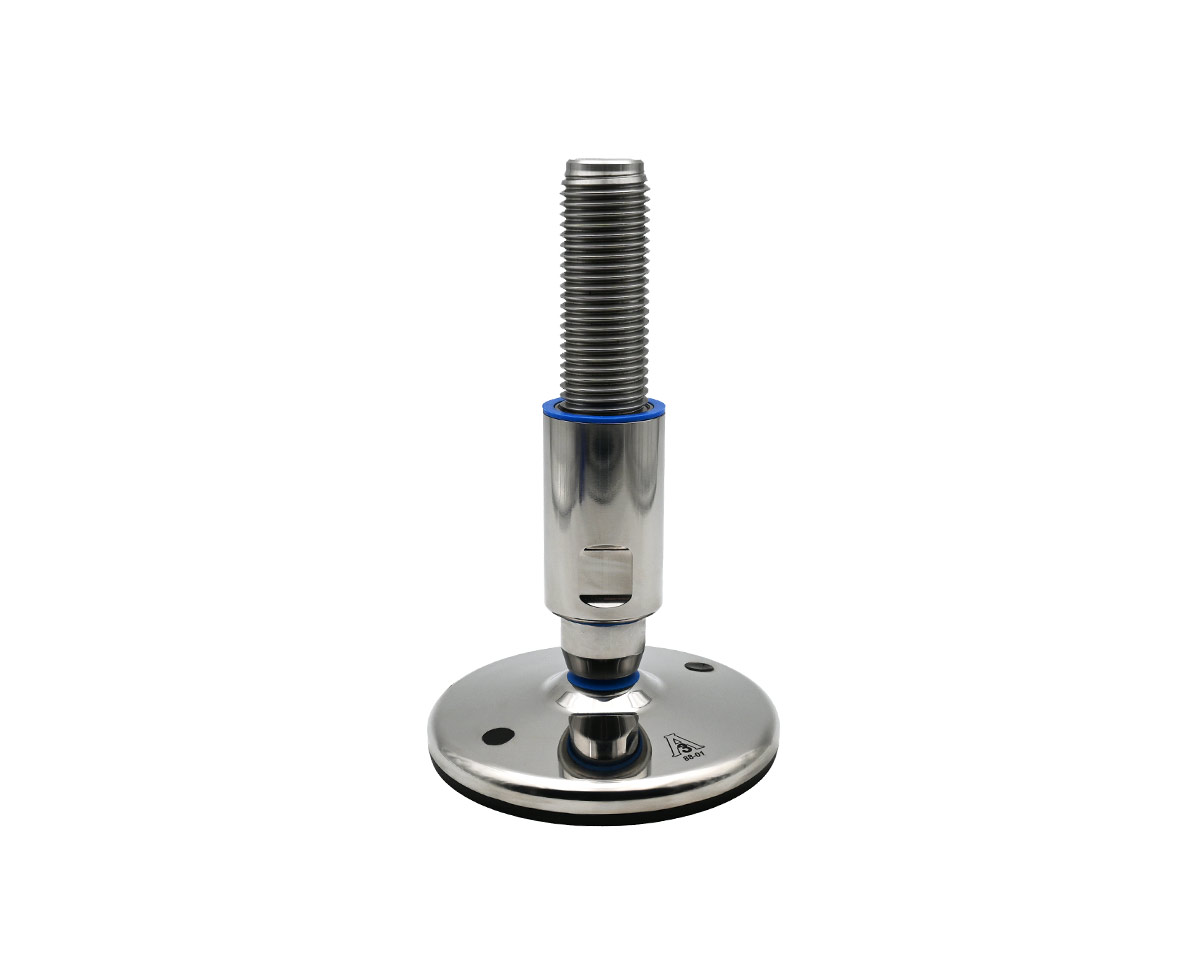

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 235 mm, Drills, NBR

EAN 4061408111435

Type 45827397F/3A

Ensure stability and hygiene in your industrial applications with the TEKNO-HYGIENIC 3-A levelling foot. Stainless steel construction, adjustable range, and high static load capacity.

High durability and corrosion resistance with stainless steel construction for both the footplate and spindle.
Large adjustment range of 65 mm and articulation angle of 15° for versatile leveling applications.
Excellent static load capacity of 80,000 N, ensuring stability in demanding environments.
Hygienic design meets 3-A Sanitary Standards, ideal for food processing and other cleanroom applications.
Antislip NBR black material provides superior grip, preventing slippage and enhancing safety.

Quantity	Price
From 1	€98.84*
From 13	€96.69*
From 41	€95.25*

Currently sold out, Refill time: 5 days

€98.84* / piece

Our payment methods:

Accessories

In Stock

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€5.87*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	235
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

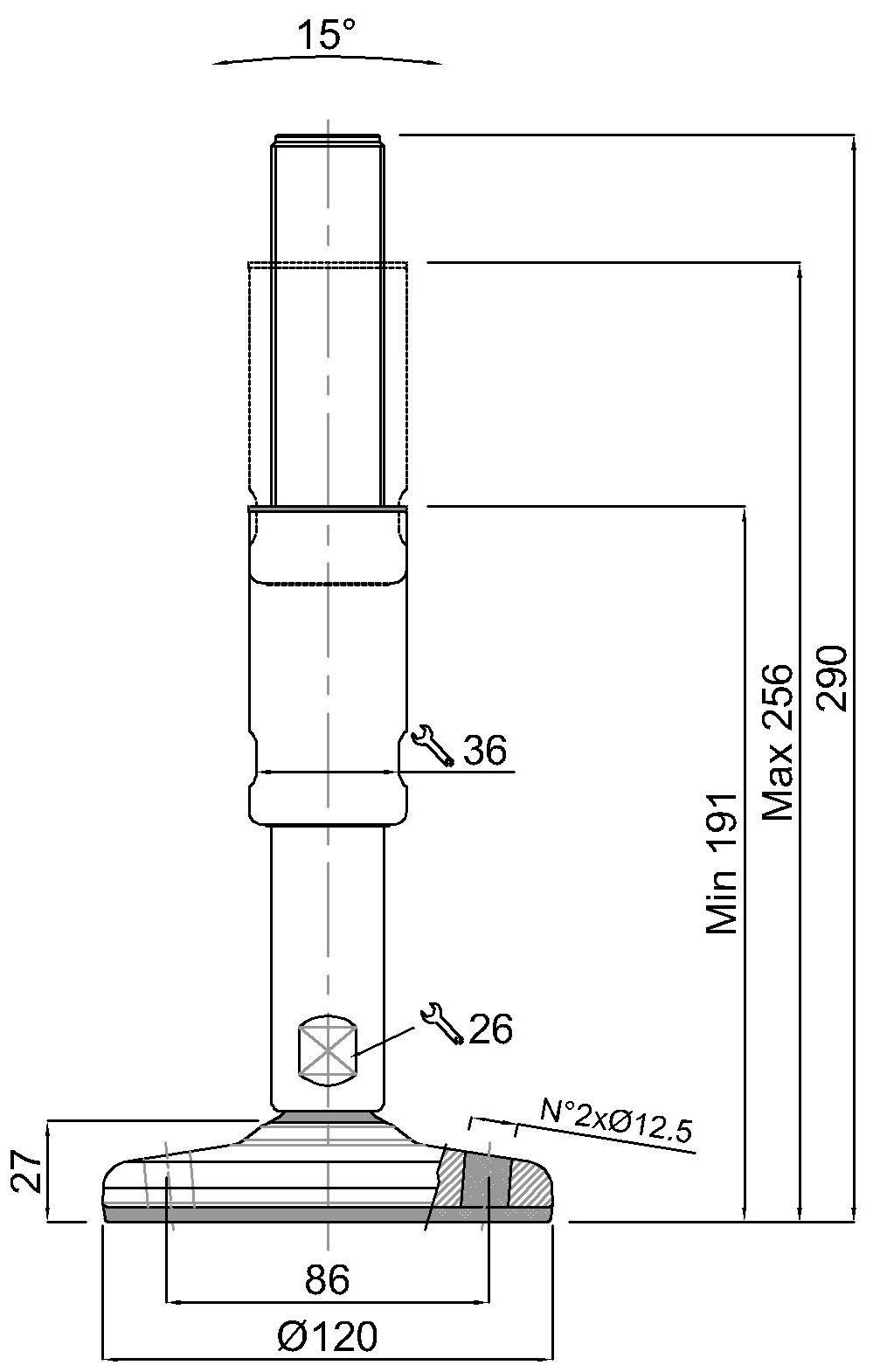

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 235 mm, Stainlees steel, Total height 290 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 80.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
