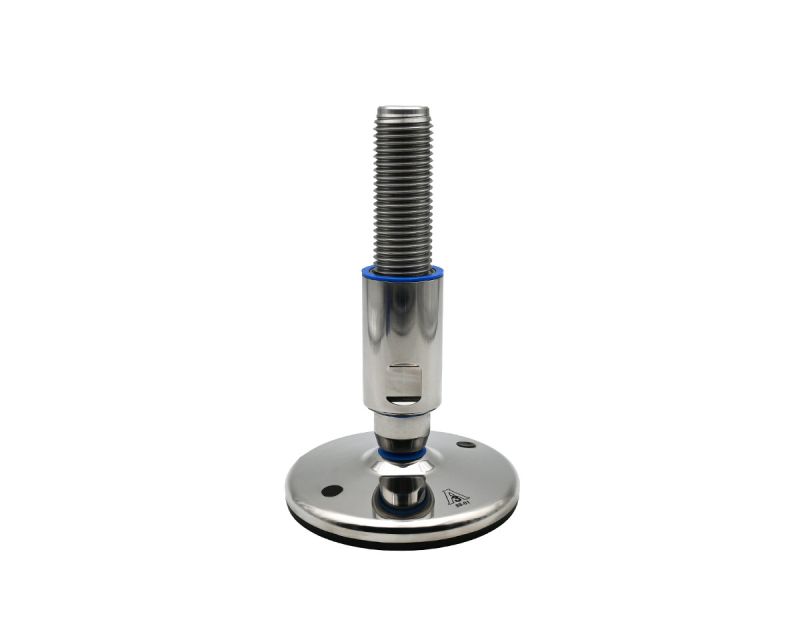

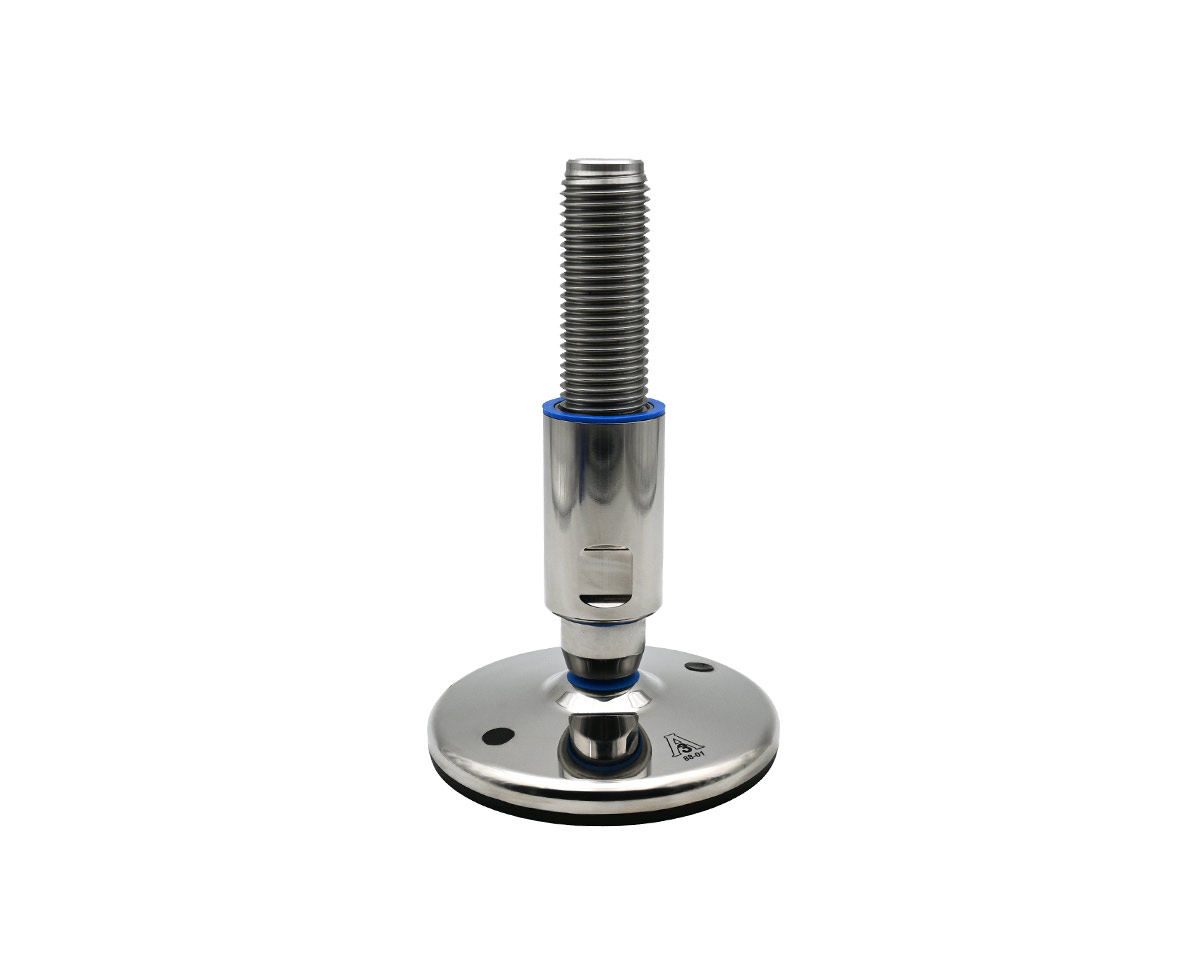

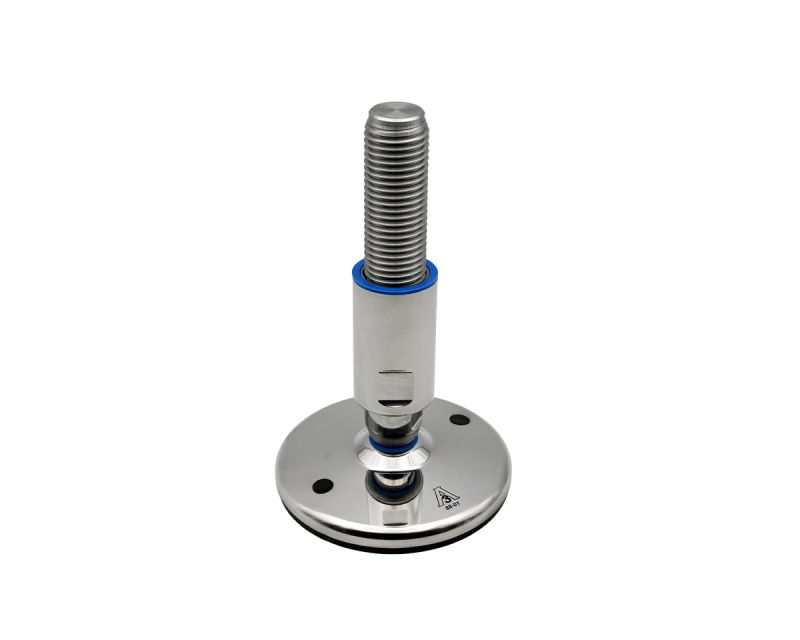

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 185 mm, Drills, NBR

EAN 4061408111428

Type 45827395F/3A

The TEKNO-HYGIENIC 3-A leveling foot ensures optimal stability with a 120 mm stainless steel base and a hygiene certification. Featuring an adjustable range of 65 mm and robust NBR anti-slip properties, it’s ideal for demanding sanitary applications.

Constructed from high-grade stainless steel for maximum durability and corrosion resistance.
Features a large contact area with a diameter of 120 mm, ensuring stability even under heavy loads.
Adjustable height with a total height of 240 mm and a 65 mm adjustment range for versatile installation options.
Designed with a 15° articulated screw for precise leveling in uneven surfaces.
Complies with 3-A Sanitary Standards, making it ideal for hygiene-sensitive environments.

Quantity	Price
From 1	€95.43*
From 13	€93.35*
From 41	€91.97*

Currently sold out, Refill time: 5 days

€95.43* / piece

Our payment methods:

Accessories

In Stock

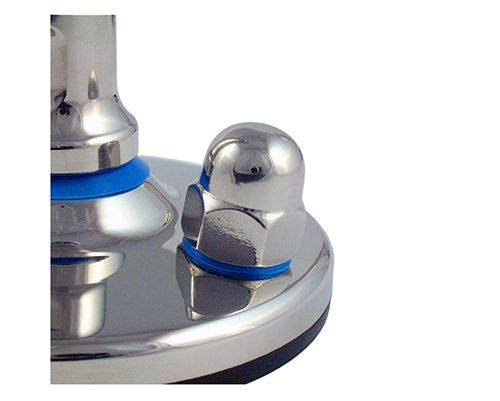

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€5.87*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	185
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

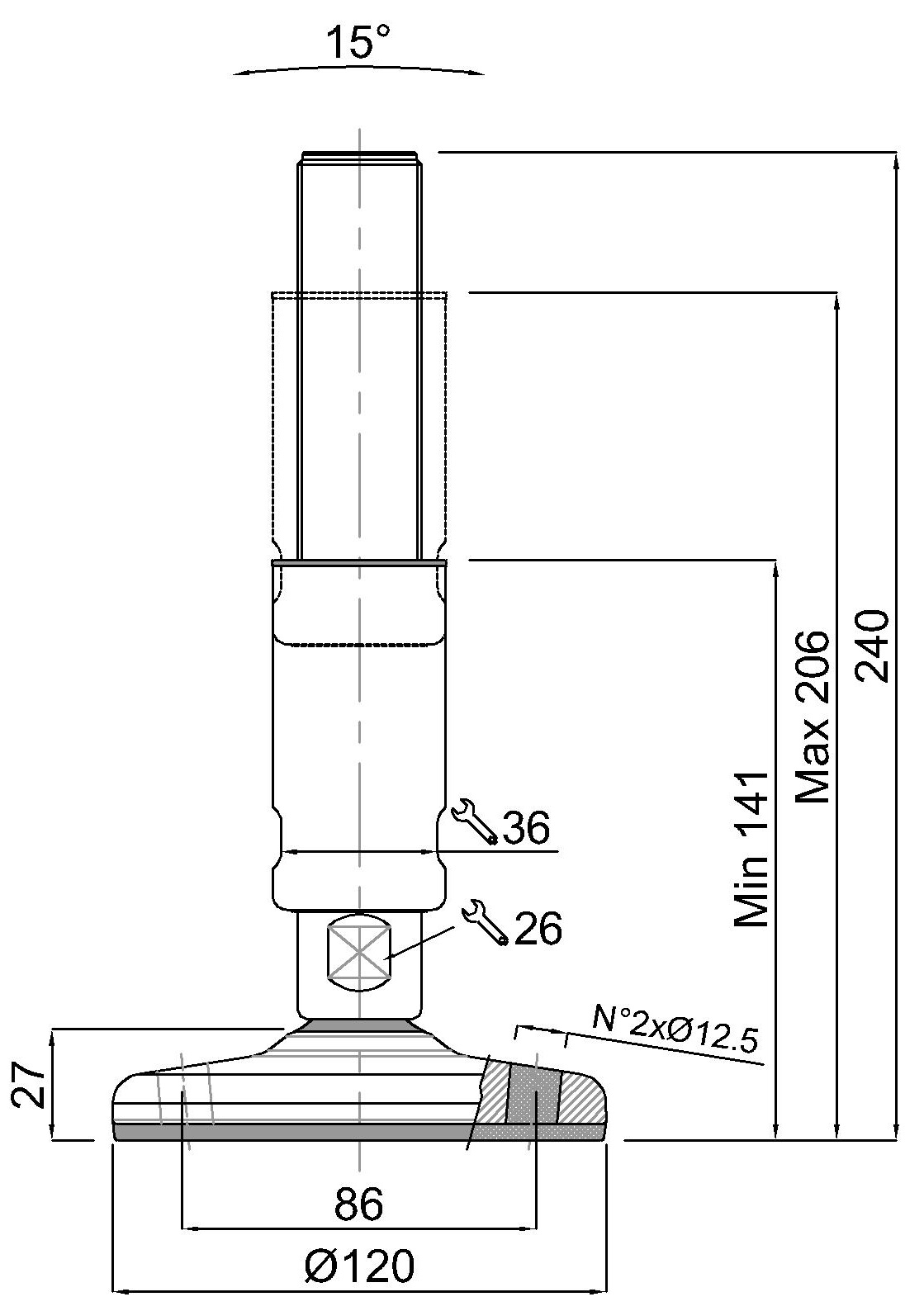

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 185 mm, Stainlees steel, Total height 240 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 80.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
