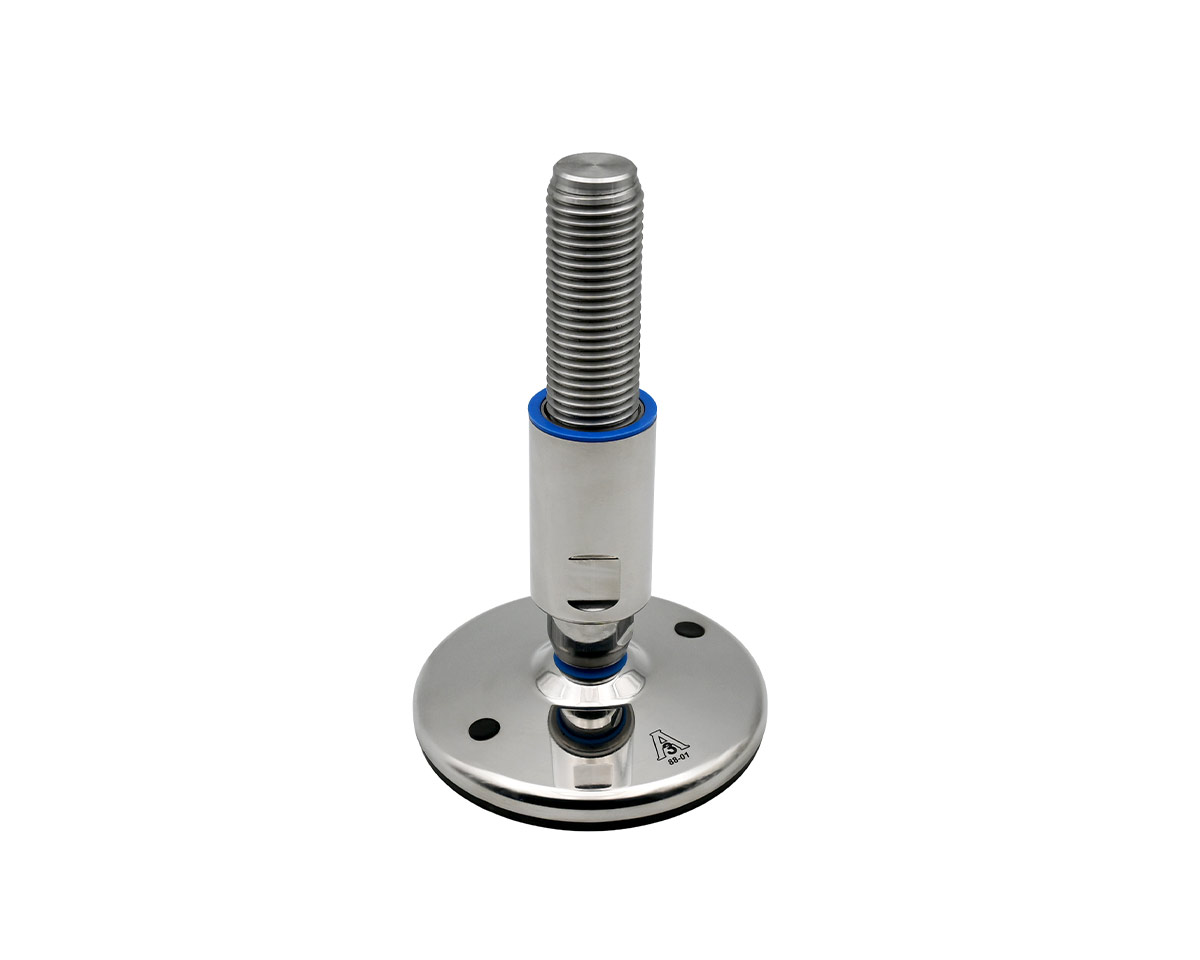

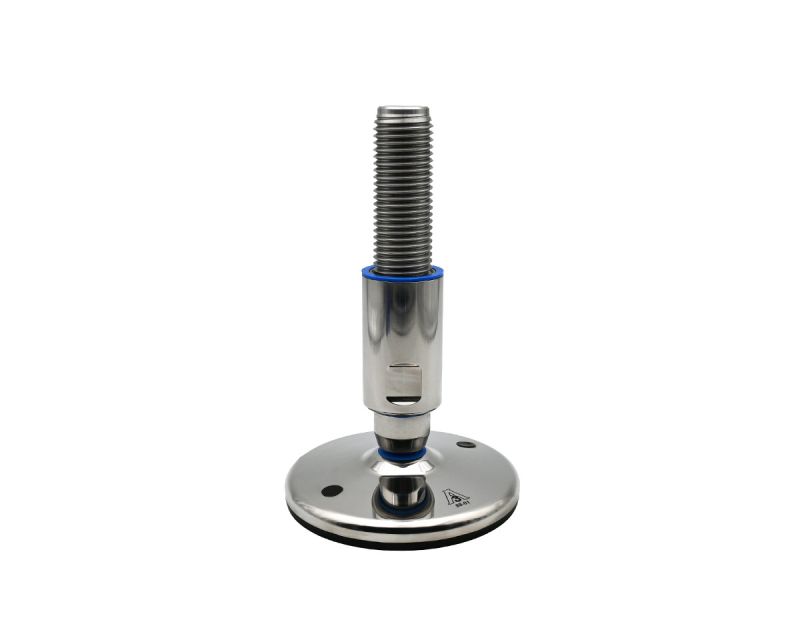

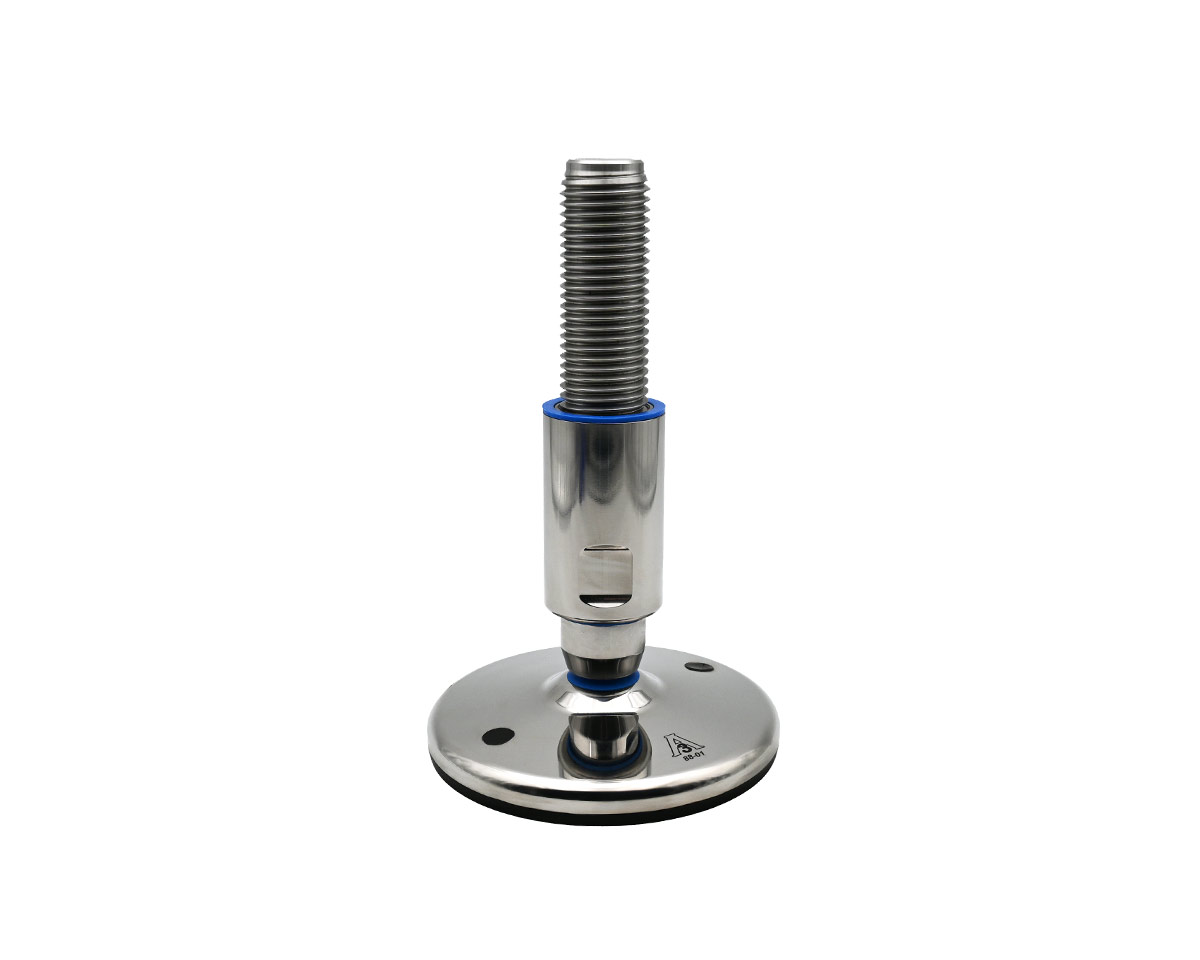

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M24 x 190 mm, Drills, NBR

EAN 4061408111404

Type 45827391F/3A

Optimize your machinery with the TEKNO-HYGIENIC leveling foot. Made from stainless steel and certified to 3-A standards, it offers superior stability and hygiene, with an impressive static load capacity of 60,000 N.

Engineered with 3-A Sanitary Standard certification, ensuring compliance with hygiene regulations for food and pharmaceutical industries.
Robust stainless steel construction provides exceptional durability and resistance to corrosion, suitable for harsh environments.
Adjustable leveling range of 70 mm with an articulated screw that allows for a maximum angle of 15°, ensuring precise installation.
High static load capacity of 60,000 N, making it ideal for supporting heavy machinery and equipment.
Features NBR anti-slip surface for enhanced stability and safety during operation, minimizing the risk of displacement.

Quantity	Price
From 1	€92.02*
From 13	€90.02*
From 41	€88.68*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€92.02* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M24 x 190 mm, Stainlees steel, Total height 245 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 60.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
