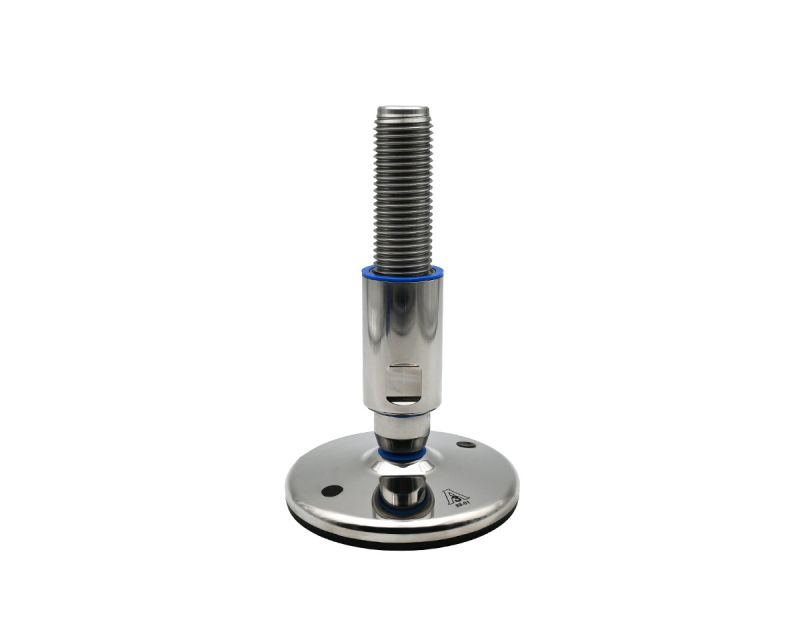

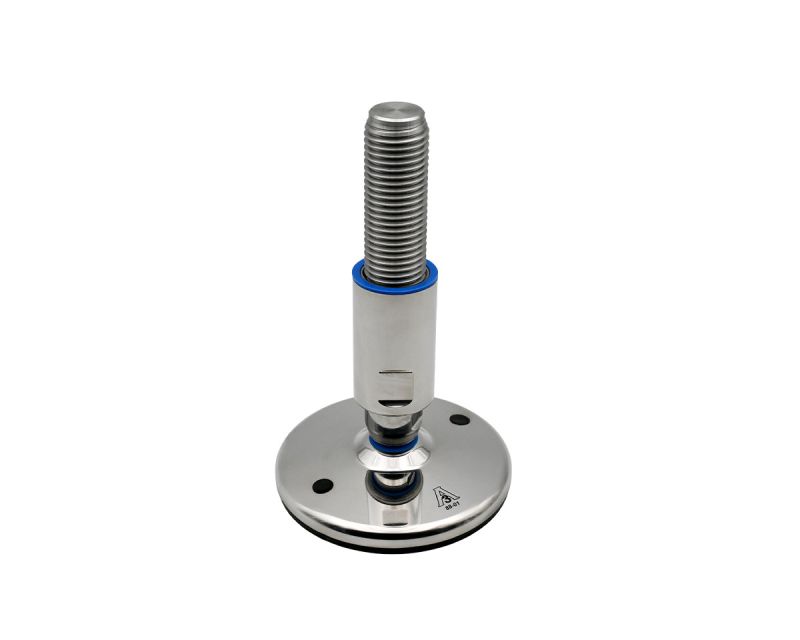

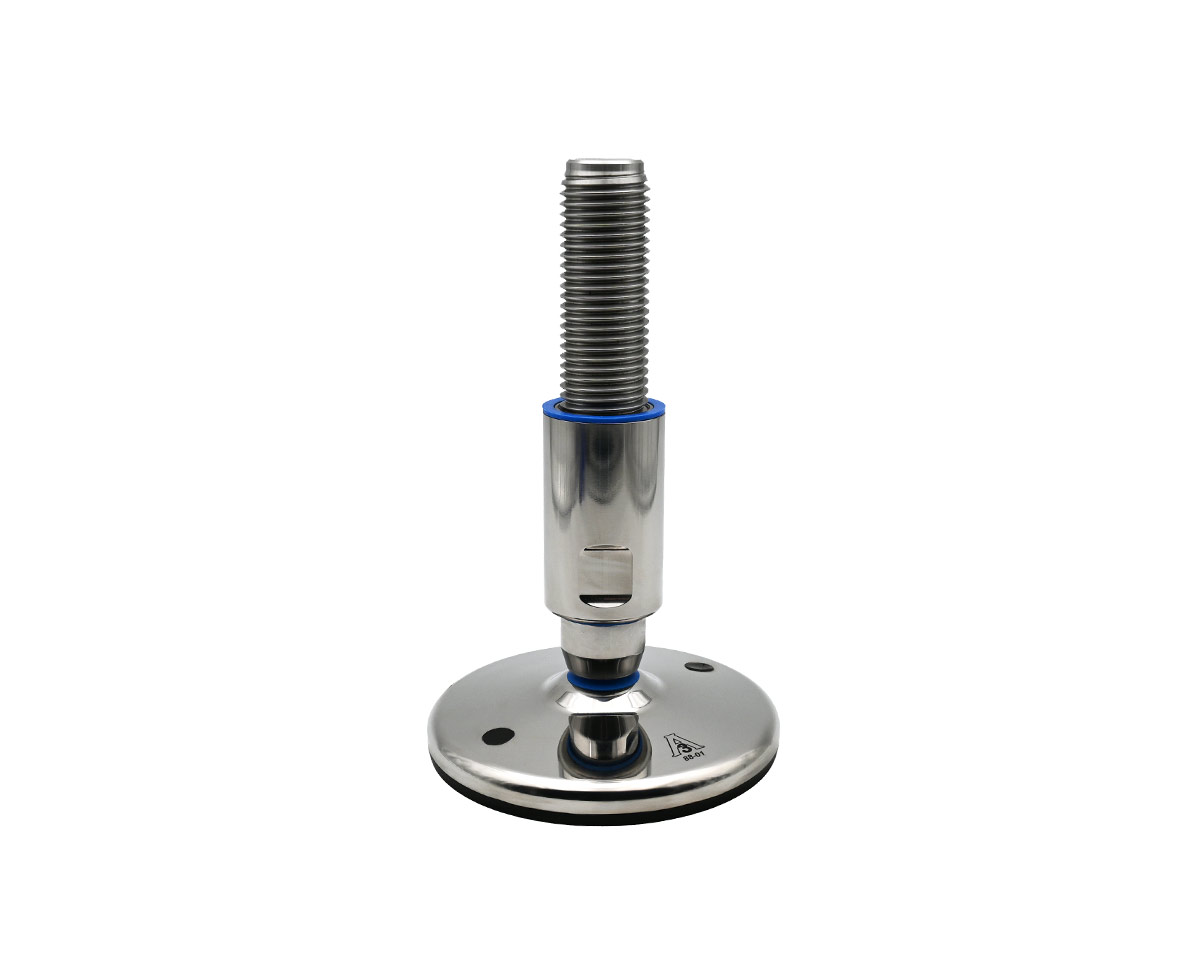

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M24 x 140 mm, Drills, NBR
EAN
4061408111398
Type
45827389F/3A
Elevate your equipment with the TEKNO-HYGIENIC 3-A leveling foot, featuring a 120 mm stainless steel base, 15° articulated screw, hygiene certification, and exceptional load capacity of 60,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€86.06*
|
| From 13 |
€84.19*
|
| From 41 |
€82.94*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M24 x 140 mm, Stainlees steel, Total height 194 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
