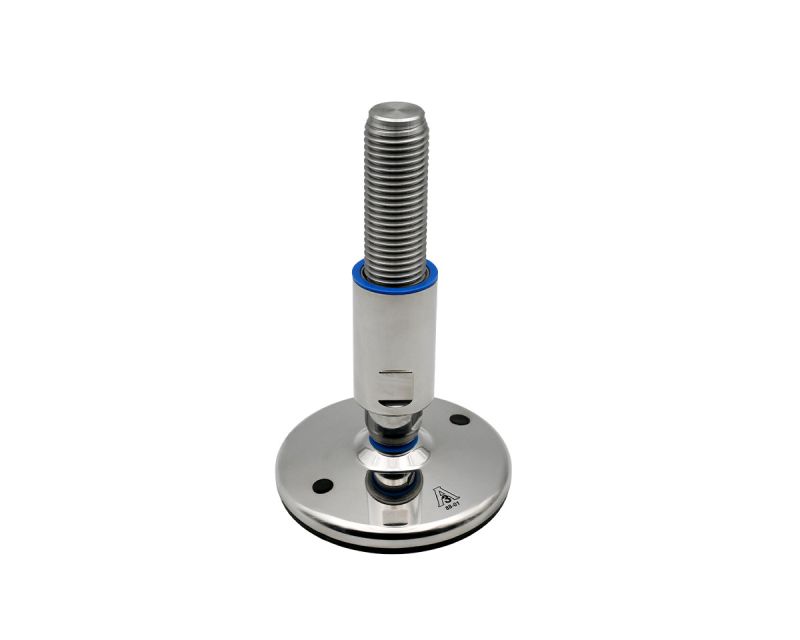

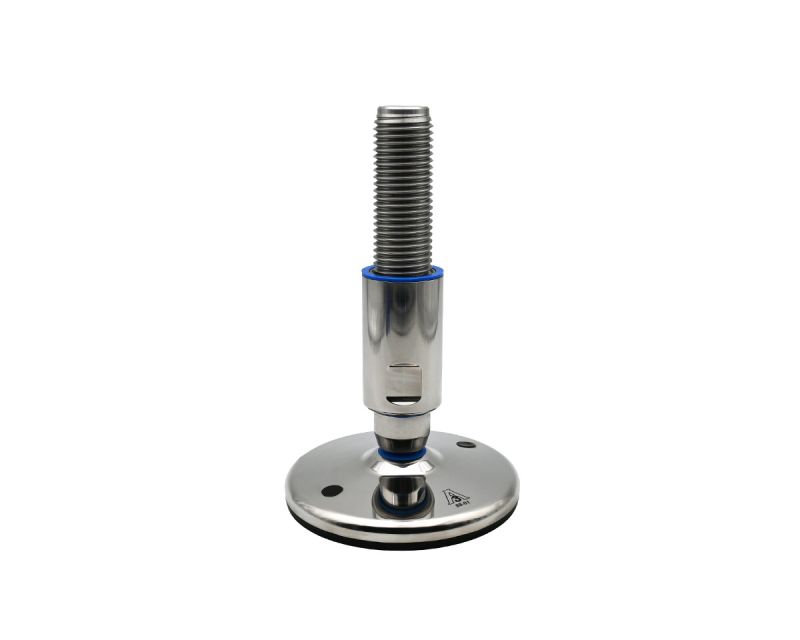

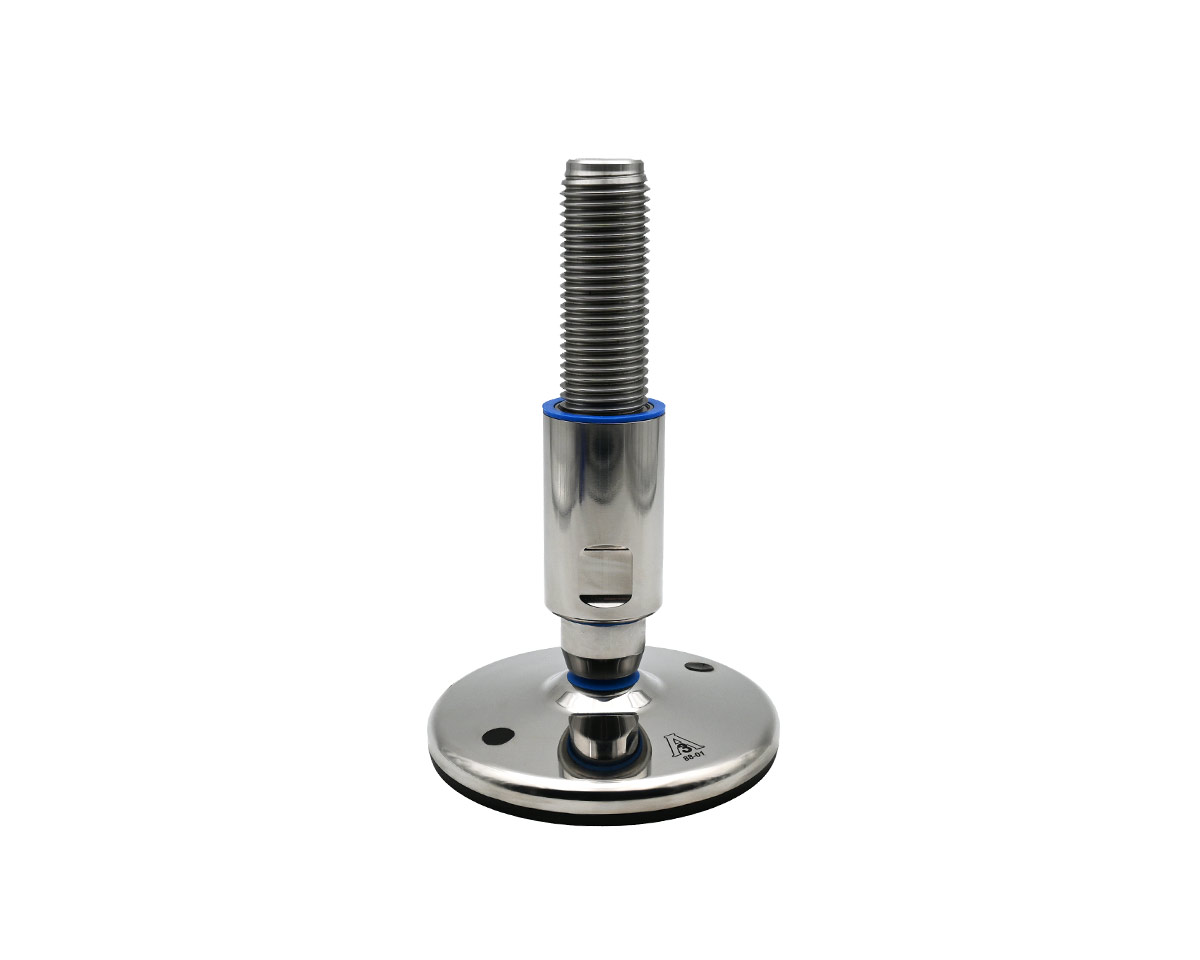

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M30 x 190 mm, Drills, NBR

EAN 4061408111350

Type 45827375F/3A

Optimize your installations with the TEKNO-HYGIENIC 3-A leveling foot. Made from stainless steel, it features an adjustable height of 65 mm and exceptional static load capacity of 60,000 N, ensuring stability and hygiene compliance.

Stainless steel construction ensures high durability and resistance to corrosion, making it suitable for various industrial environments.
Designed with a 3-A Sanitary Standard certification, ensuring compliance with hygiene regulations for food processing and pharmaceutical applications.
Articulated screw allows for adjustment angles up to 15°, providing versatility in leveling applications.
Significant static load capacity of 60,000 N, catering to heavy-duty requirements in engineering and manufacturing sectors.
Antislip NBR foot pad enhances stability and prevents slippage on various surfaces, ensuring secure placement.

Quantity	Price
From 1	€86.91*
From 13	€85.02*
From 41	€83.76*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€86.91* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	91-110
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

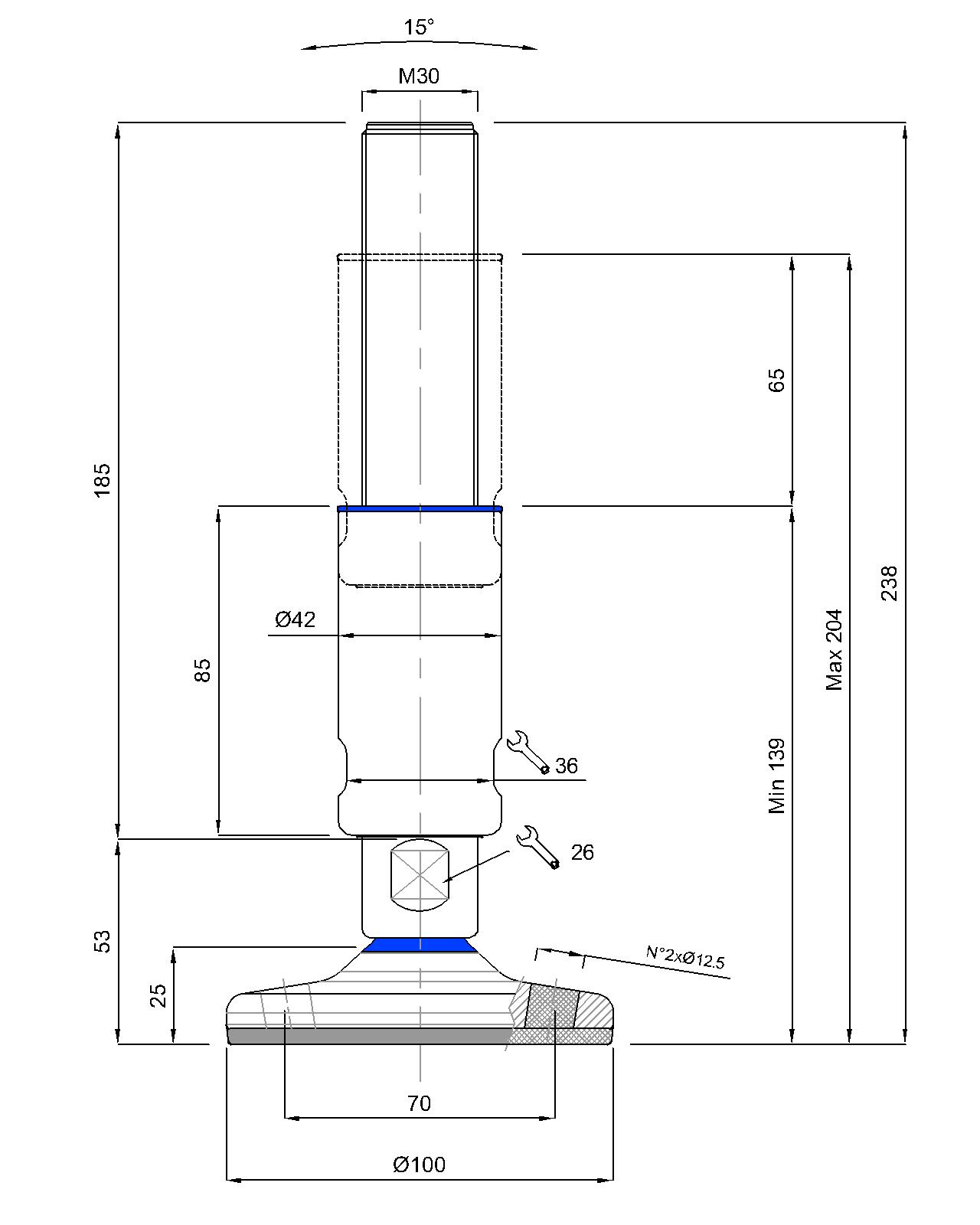

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M30 x 190 mm, Stainlees steel, Total height 238 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 60.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
