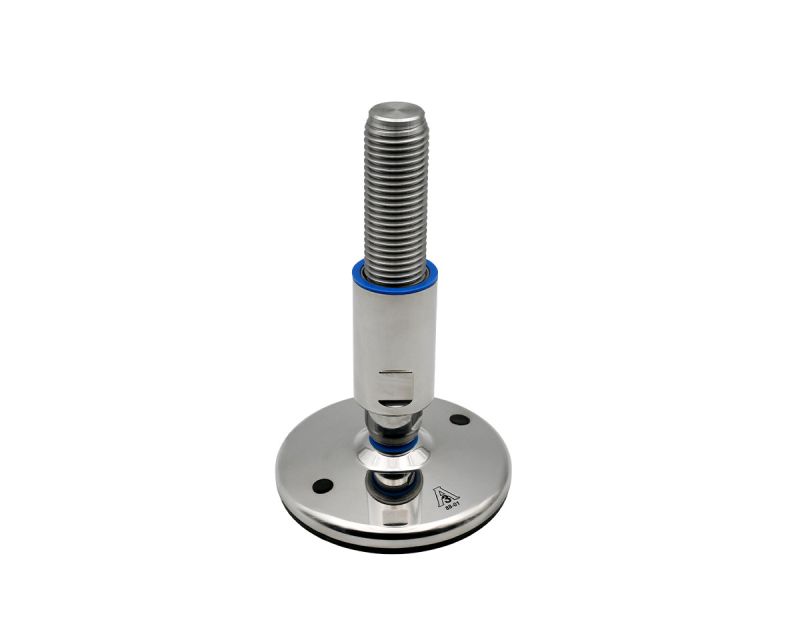

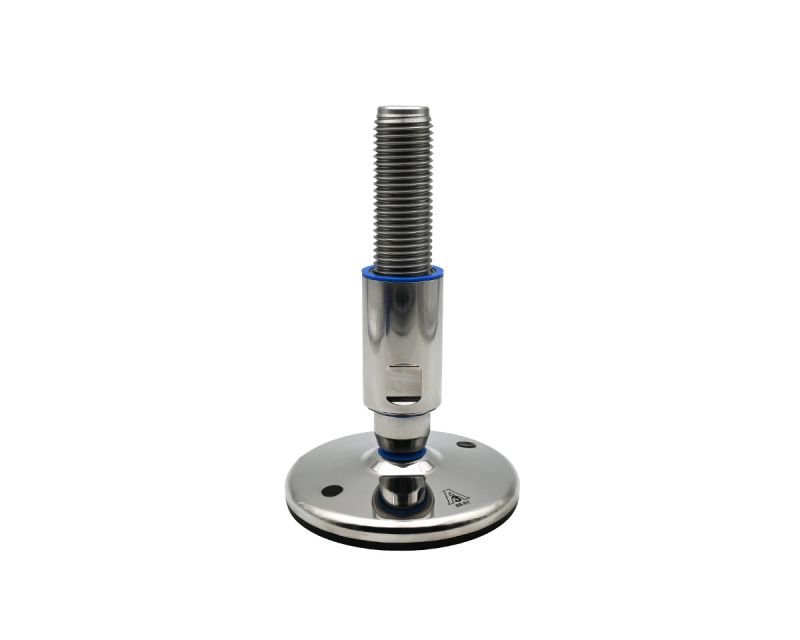

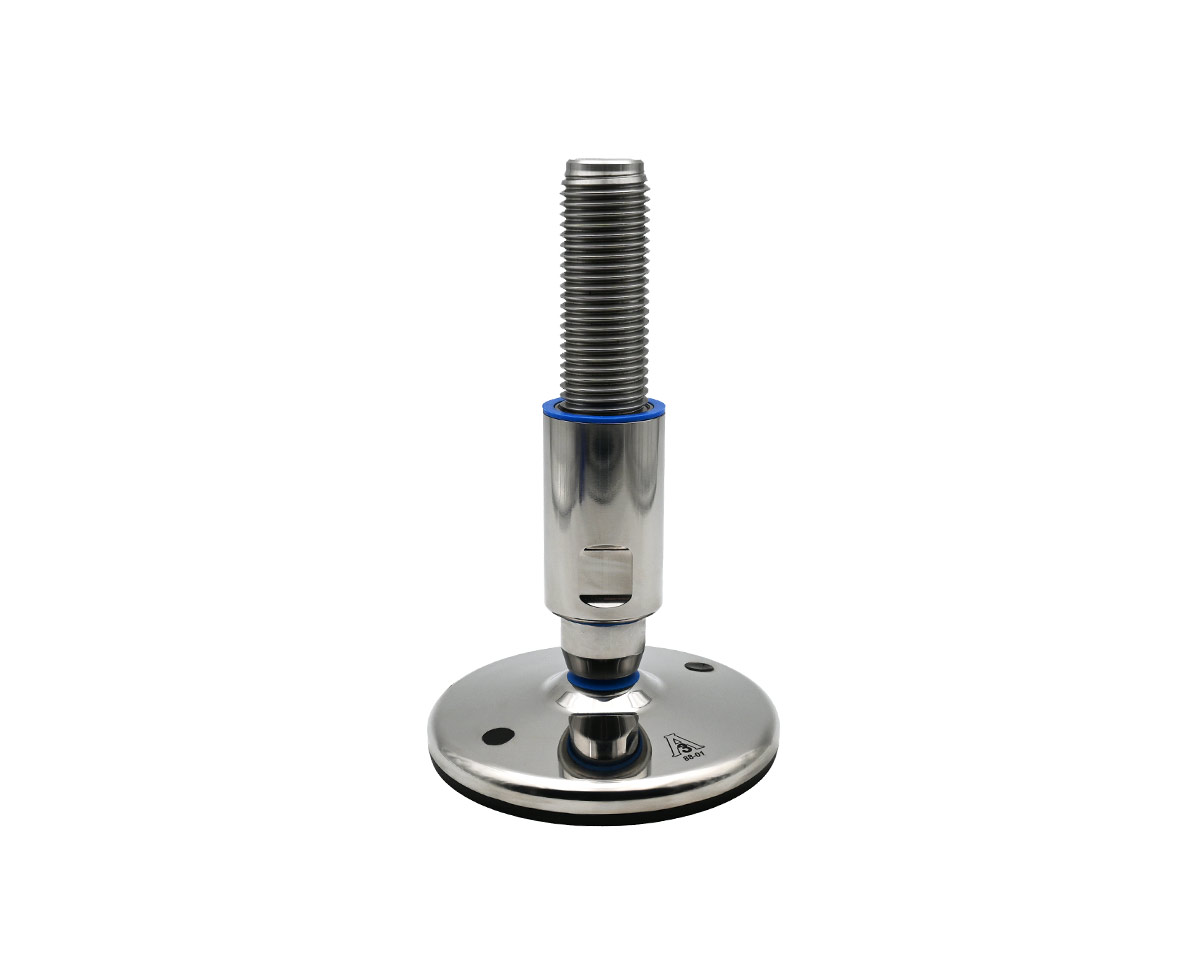

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M24 x 190 mm, Drills, NBR

EAN 4061408111336

Type 45827371F/3A

The TEKNO-HYGIENIC 3-A leveling foot features a robust stainless steel construction with a 100 mm diameter, offering a 55,000 N static load capacity and unbeatable hygiene compliance for demanding applications.

Constructed from high-grade stainless steel, ensuring exceptional durability and resistance to corrosion.
Features a 15° articulated screw for enhanced adaptability in uneven surfaces.
Equipped with NBR non-slip pads, providing excellent grip and stability under static loads up to 55,000 N.
Hygiene-certified to 3-A Sanitary Standards, making it ideal for use in hygienic environments.
Versatile adjustment range of 70 mm, accommodating various installation requirements with ease.

Quantity	Price
From 1	€83.49*
From 13	€81.68*
From 41	€80.47*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€83.49* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	91-110
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M24 x 190 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 55.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
