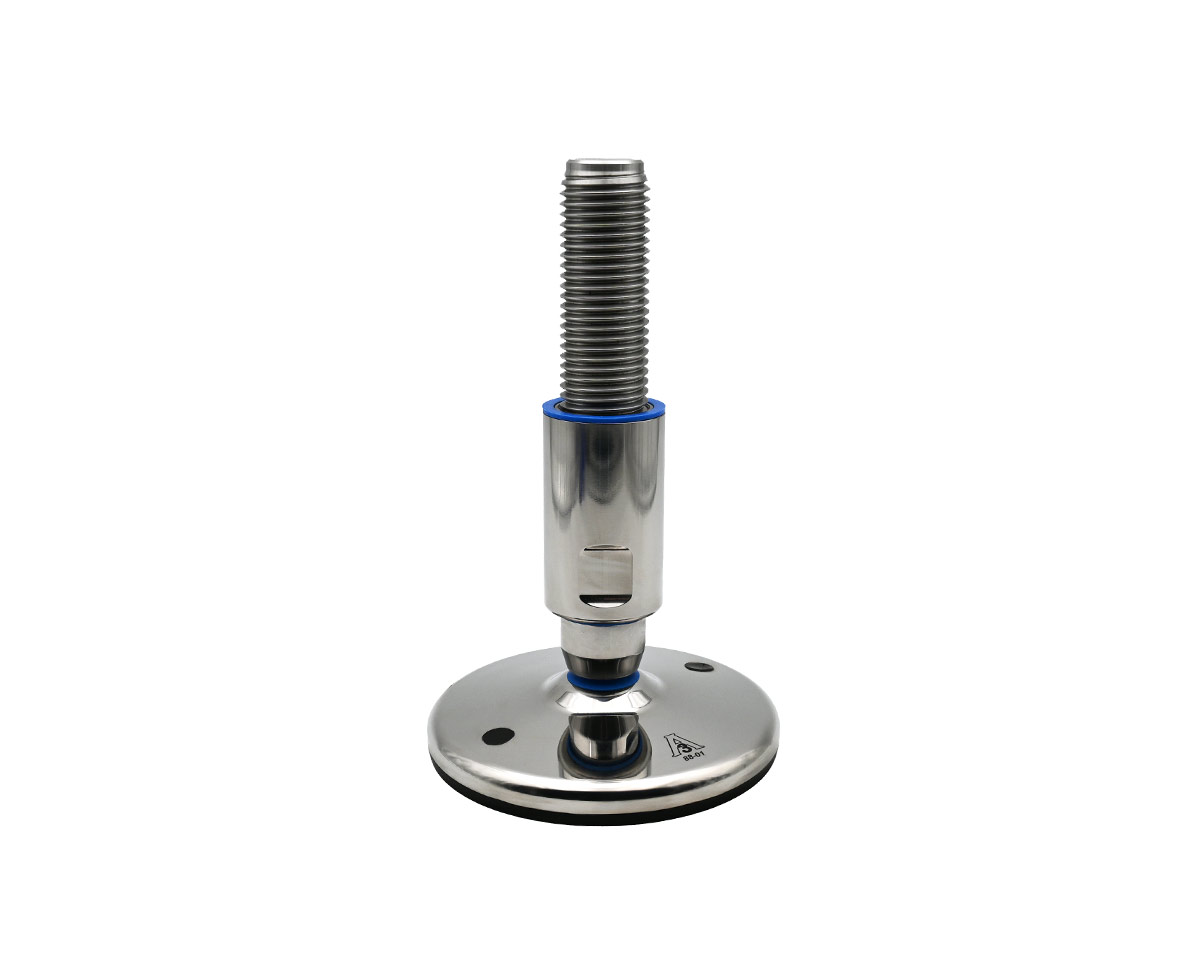

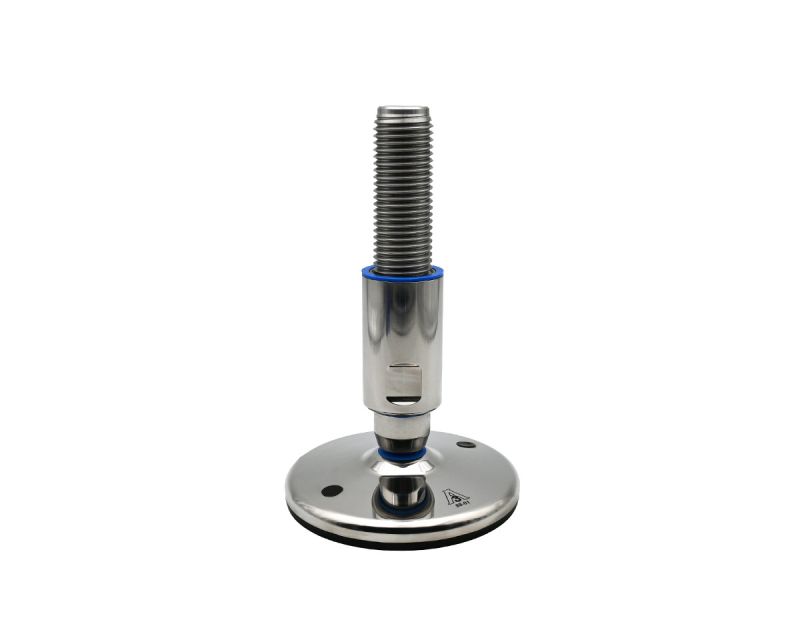

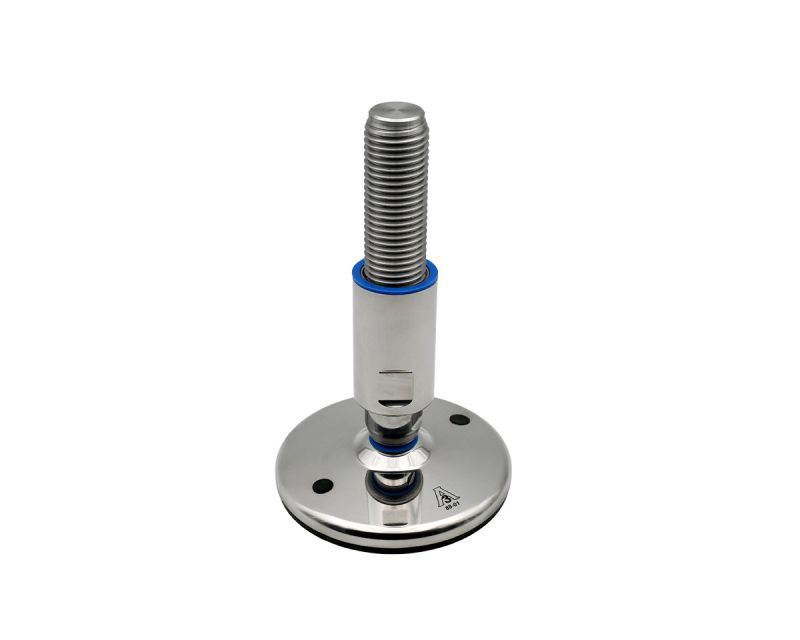

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M24 x 140 mm, Drills, NBR
Elevate your equipment with the TEKNO-HYGIENIC 3-A leveling foot. Featuring a 100 mm diameter, stainless steel design, articulating screw for optimal adjustments, and robust NBR non-slip base, it supports static loads up to 55,000 N while meeting stringent hygiene standards.
| Quantity | Price |
|---|---|
| From 1 |
€77.54*
|
| From 13 |
€75.86*
|
| From 41 |
€74.73*
|
Currently sold out, Refill time: 5 days

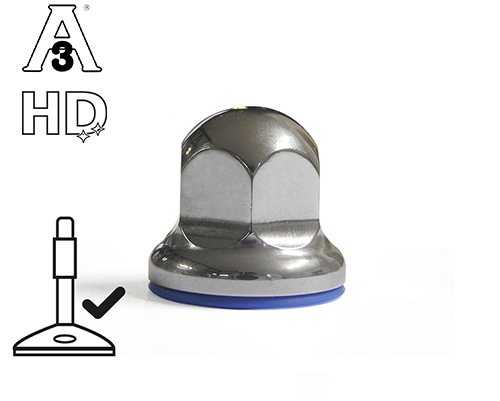

Accessories
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
