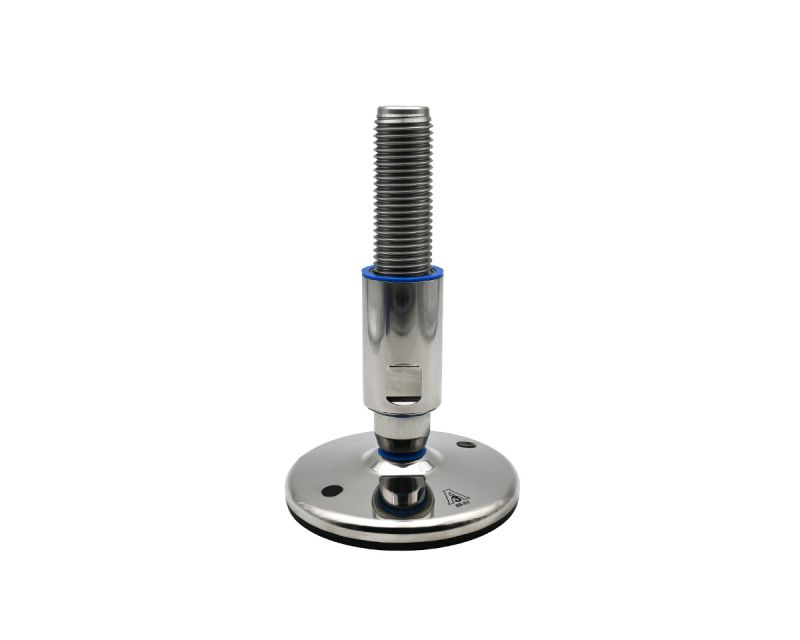

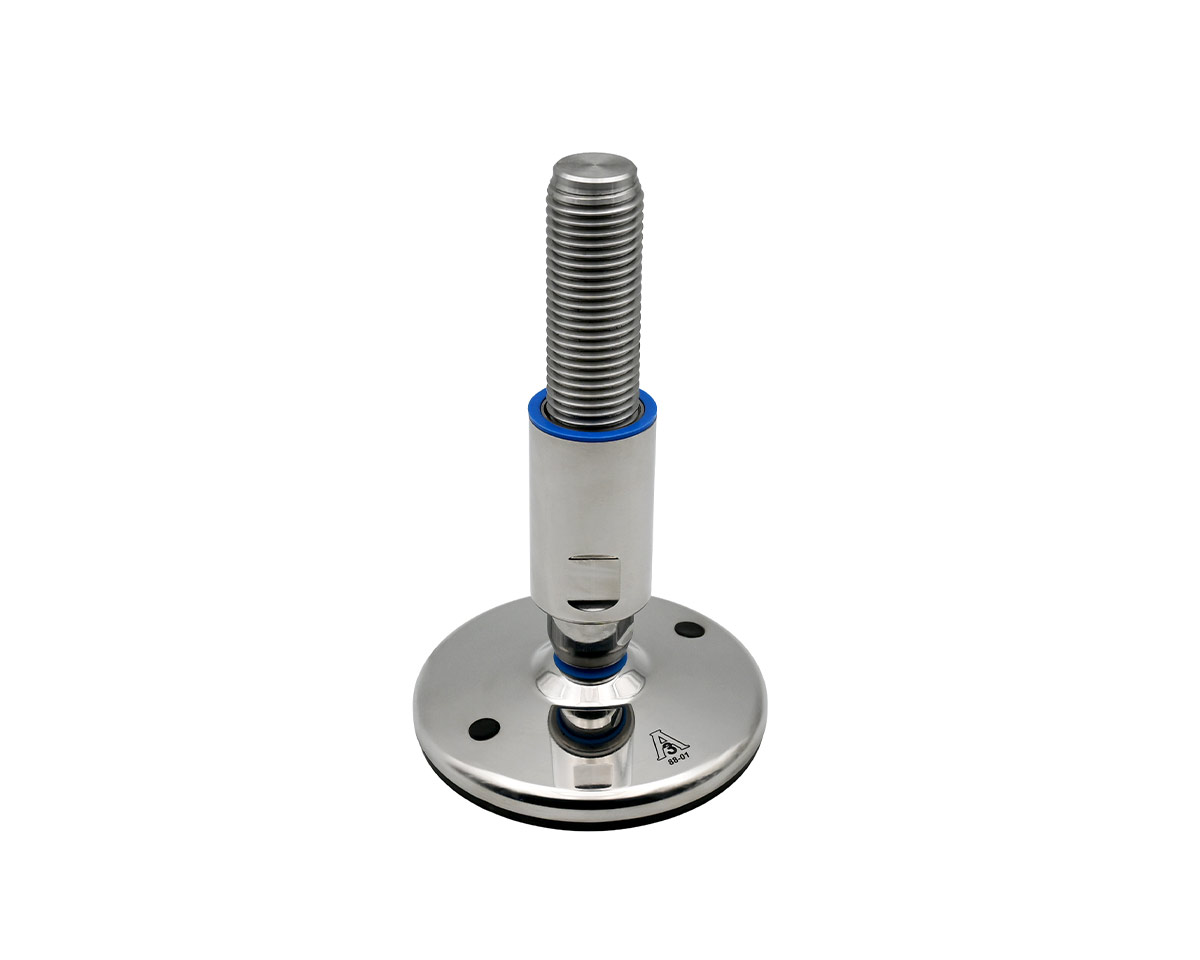

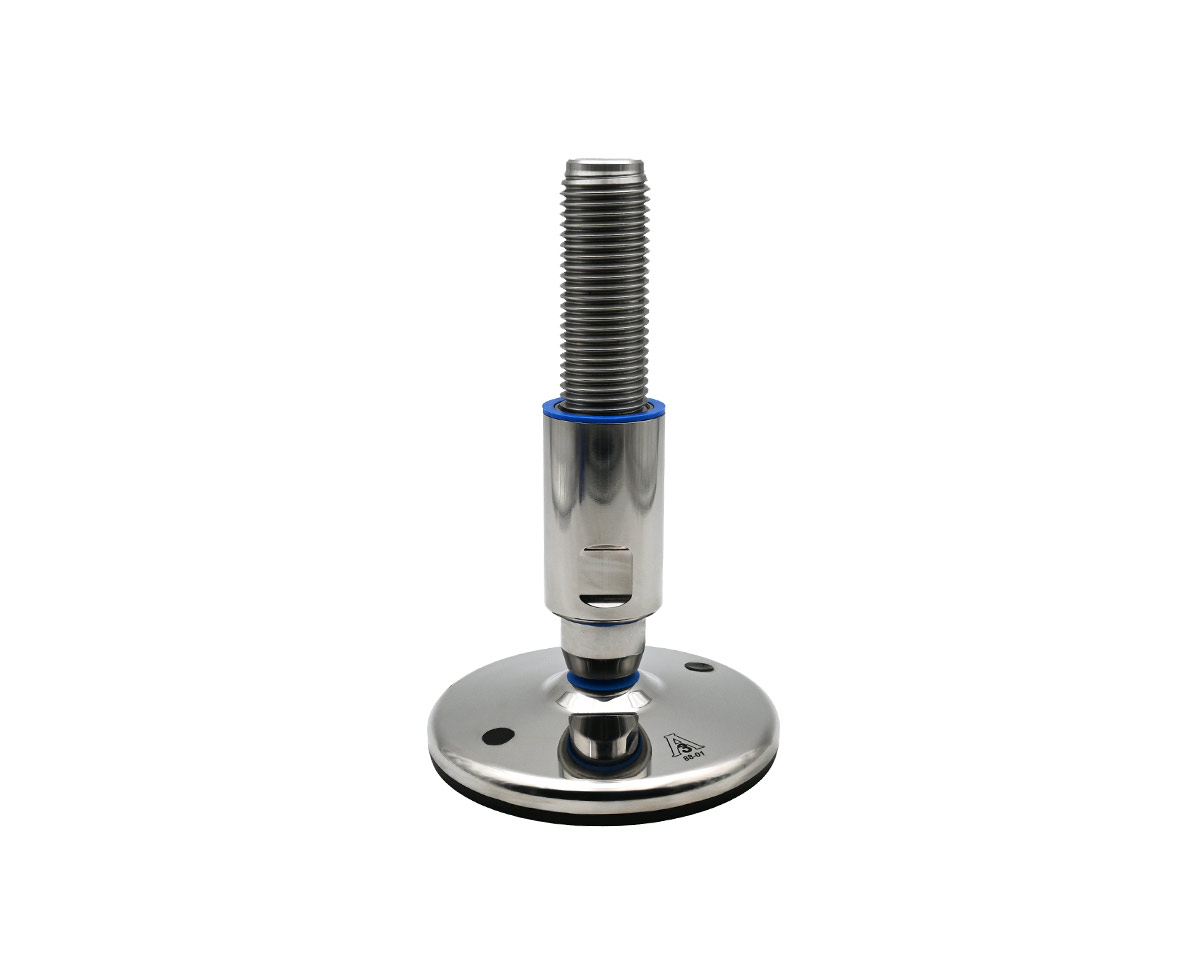

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M20 x 190 mm, Drills, NBR
EAN
4061408111312
Type
45827367F/3A
Discover the TEKNO-HYGIENIC Leveling Foot, designed for demanding environments. Featuring a hygienic stainless steel construction, adjustable height, and 15° articulation, it ensures stability and compliance with 3-A Sanitary Standards.
| Quantity | Price |
|---|---|
| From 1 |
€80.27*
|
| From 13 |
€78.53*
|
| From 41 |
€77.37*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

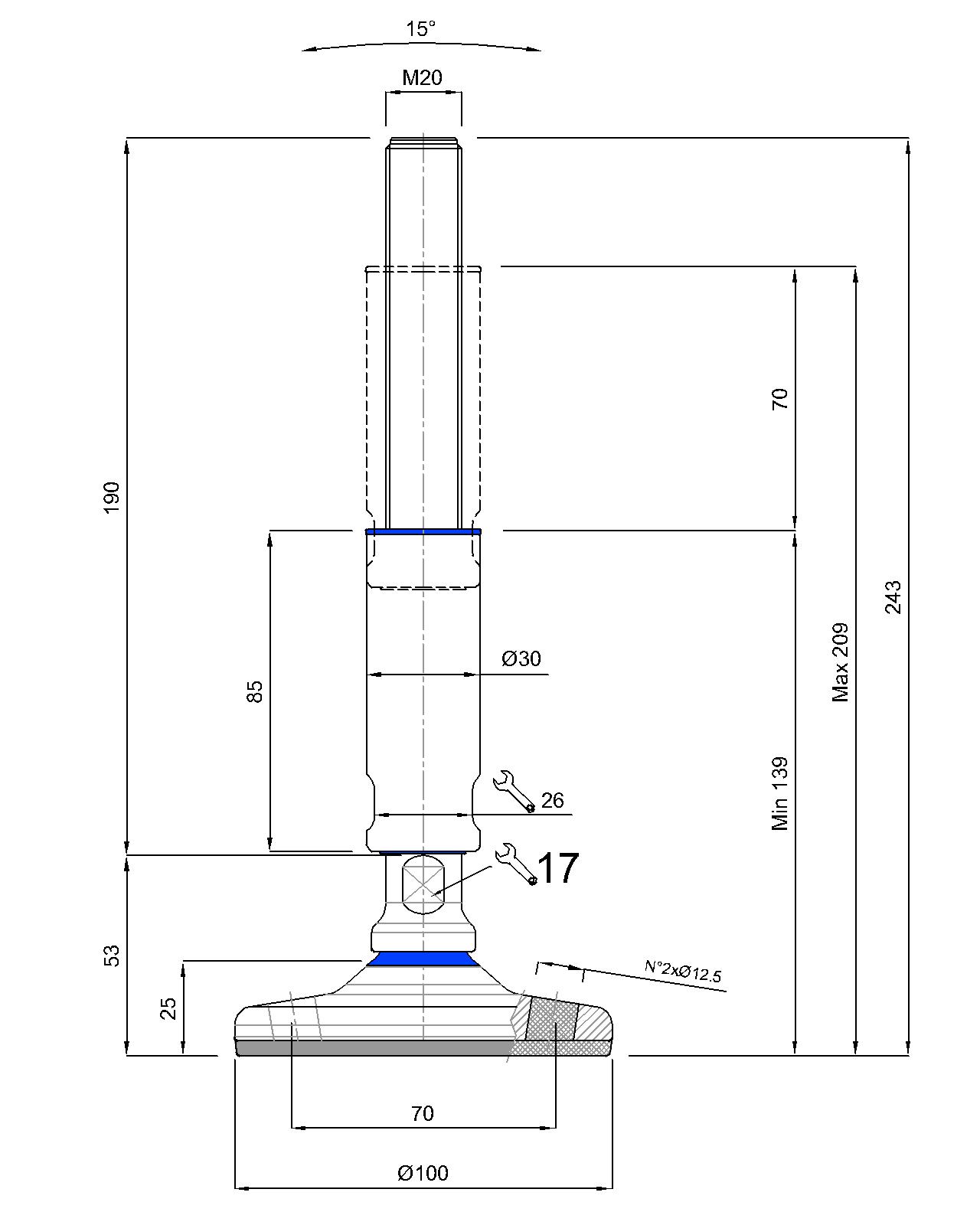

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M20 x 190 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
