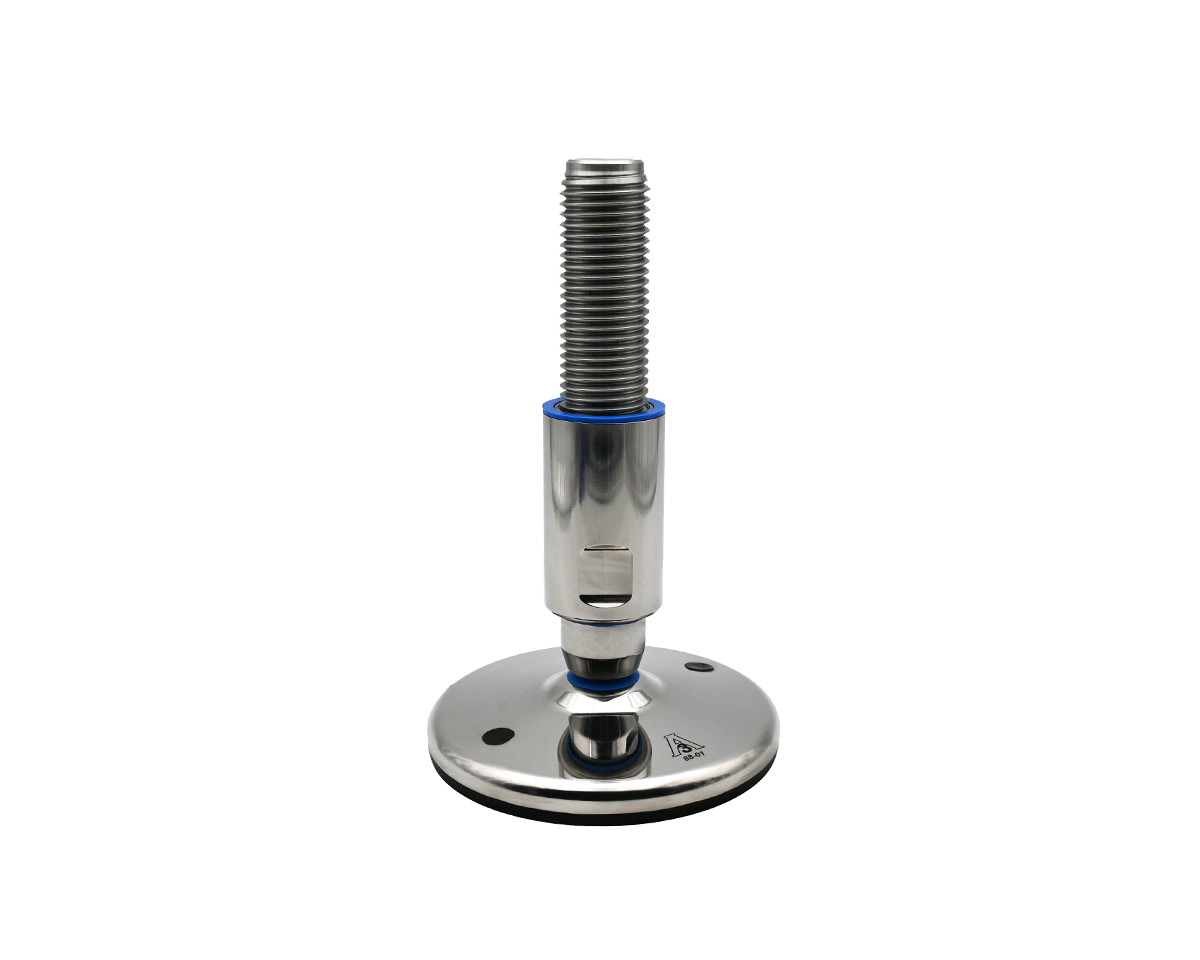

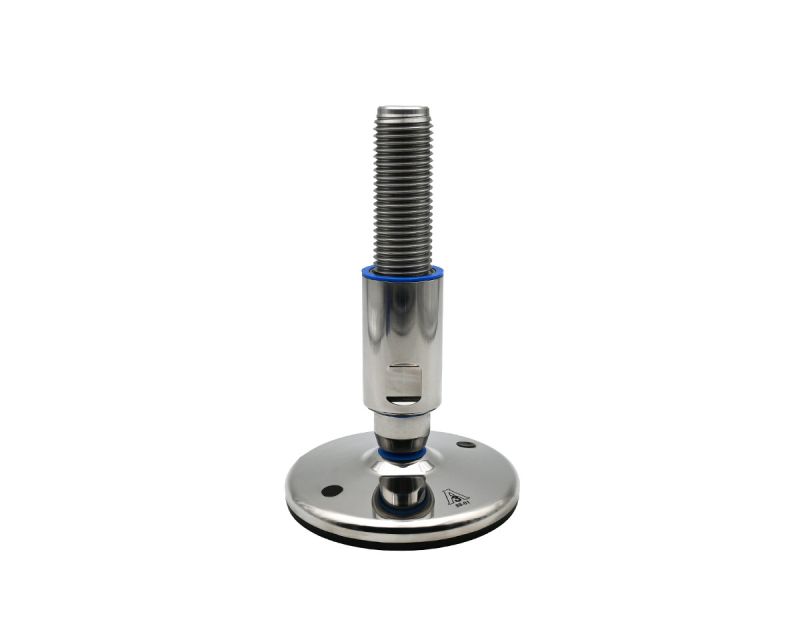

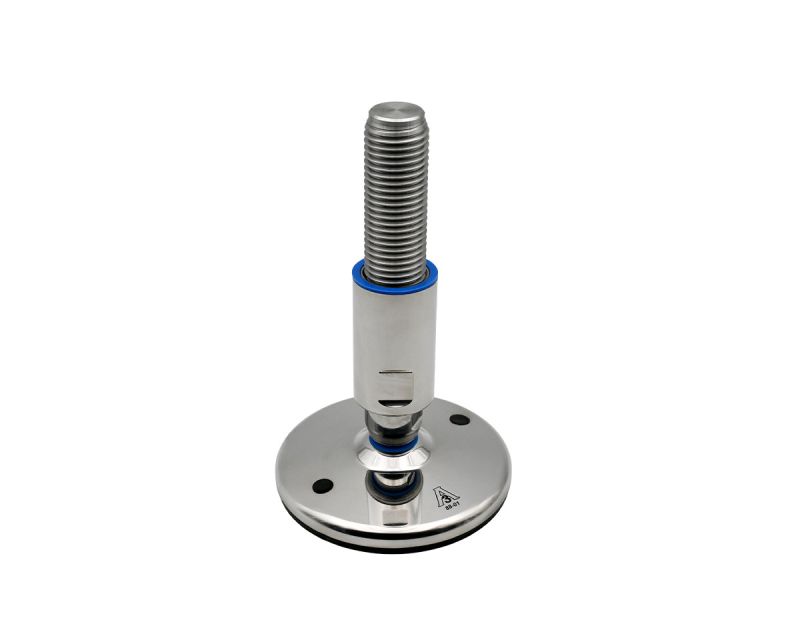

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 190 mm, Drills, NBR

EAN 4061408111299

Type 45827363F/3A

Enhance your equipment's stability with the TEKNO-HYGIENIC 3-A leveling foot, featuring a durable stainless steel design, adjustable height, and a hygienic rating, perfect for demanding environments.

Constructed from high-quality stainless steel for superior corrosion resistance and durability.
Features a total height of 243 mm with an articulated screw allowing for a 15° adjustment angle.
Antislip NBR pad ensures stability and safety, capable of handling a static load of up to 40,000 N.
Complies with 3-A Sanitary Standard, making it ideal for hygienic environments.
Versatile mounting options with two bore holes and an adjustable height range of 70 mm.

Quantity	Price
From 1	€79.85*
From 13	€78.11*
From 41	€76.95*

Currently sold out, Refill time: 5 days

€79.85* / piece

Our payment methods:

Accessories

In Stock

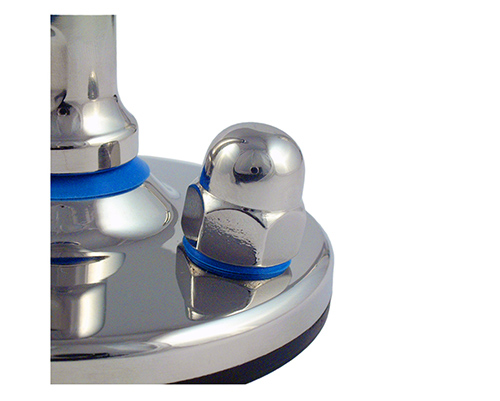

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€5.87*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	91-110
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

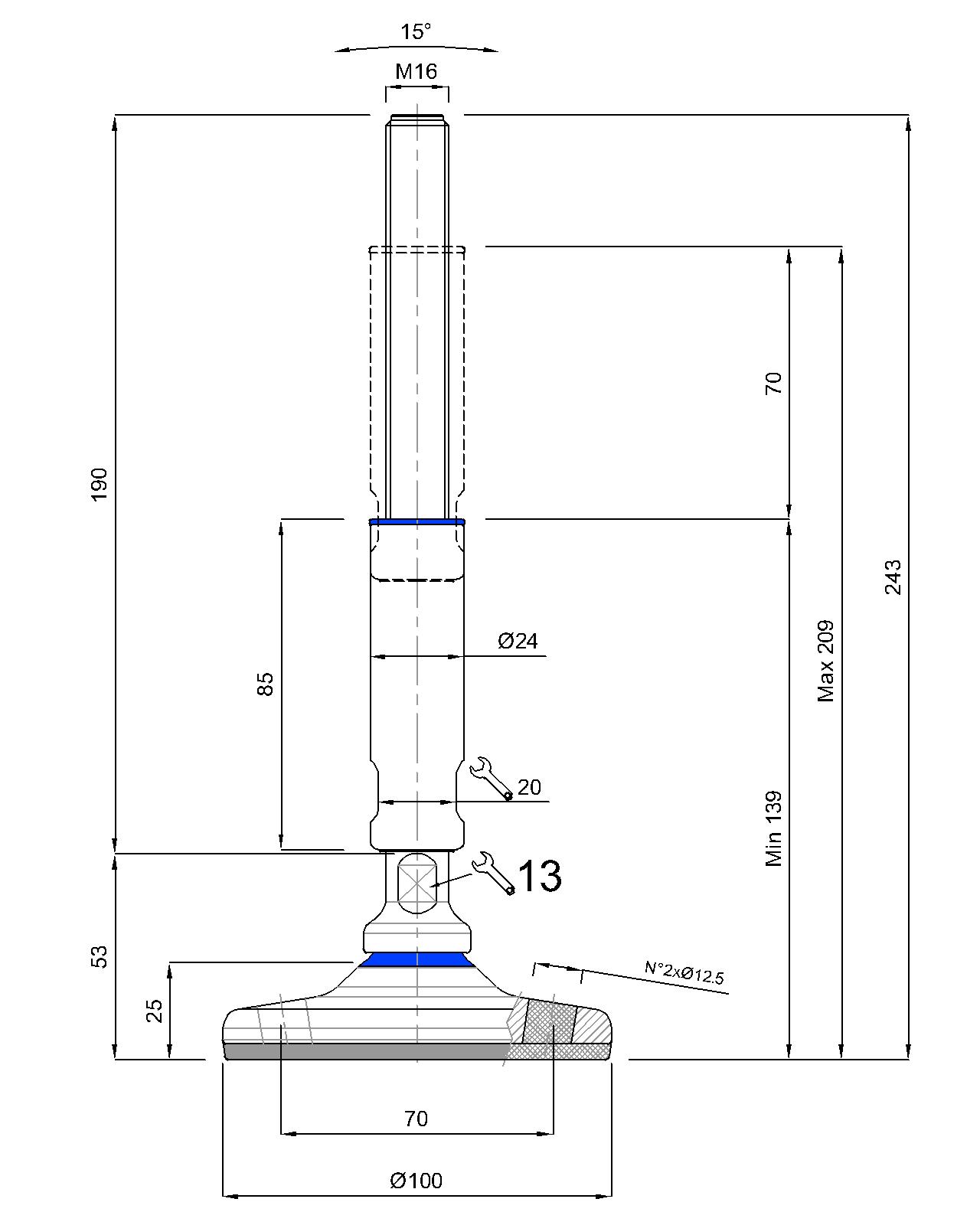

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 190 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 40.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
