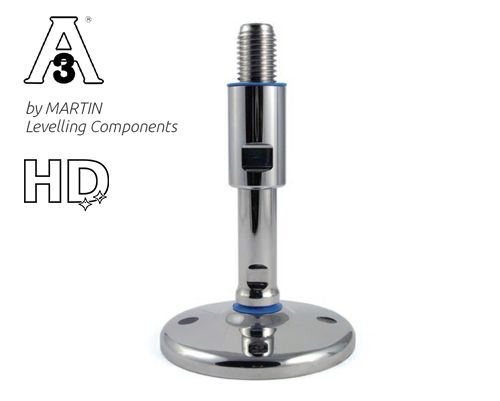

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M36 x 235 mm, Drills

EAN 4061408111282

Type 45827428F/3A

Ensure stability in hygienic environments with the TEKNO-HYGIENIC 3-A leveling foot. Made of stainless steel, it supports static loads up to 80,000 N and features a 15° articulated screw for precise adjustments.

Constructed from high-quality stainless steel, ensuring excellent corrosion resistance and durability in various environments
Features a patented 3-A Sanitary Standard certification, making it ideal for applications requiring stringent hygiene standards
Articulated screw design allows for a 15° adjustment angle, providing enhanced adaptability to uneven surfaces
Static load capacity of 80,000 N, suitable for supporting heavy machinery and equipment reliably
Adjustable height range of 65 mm ensures optimal leveling across different applications, with a bushing diameter of 85 mm for secure placement

Quantity	Price
From 1	€126.62*
From 13	€123.86*
From 41	€122.03*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€126.62* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	No
Ø range base plate (mm):	131-230
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	235
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

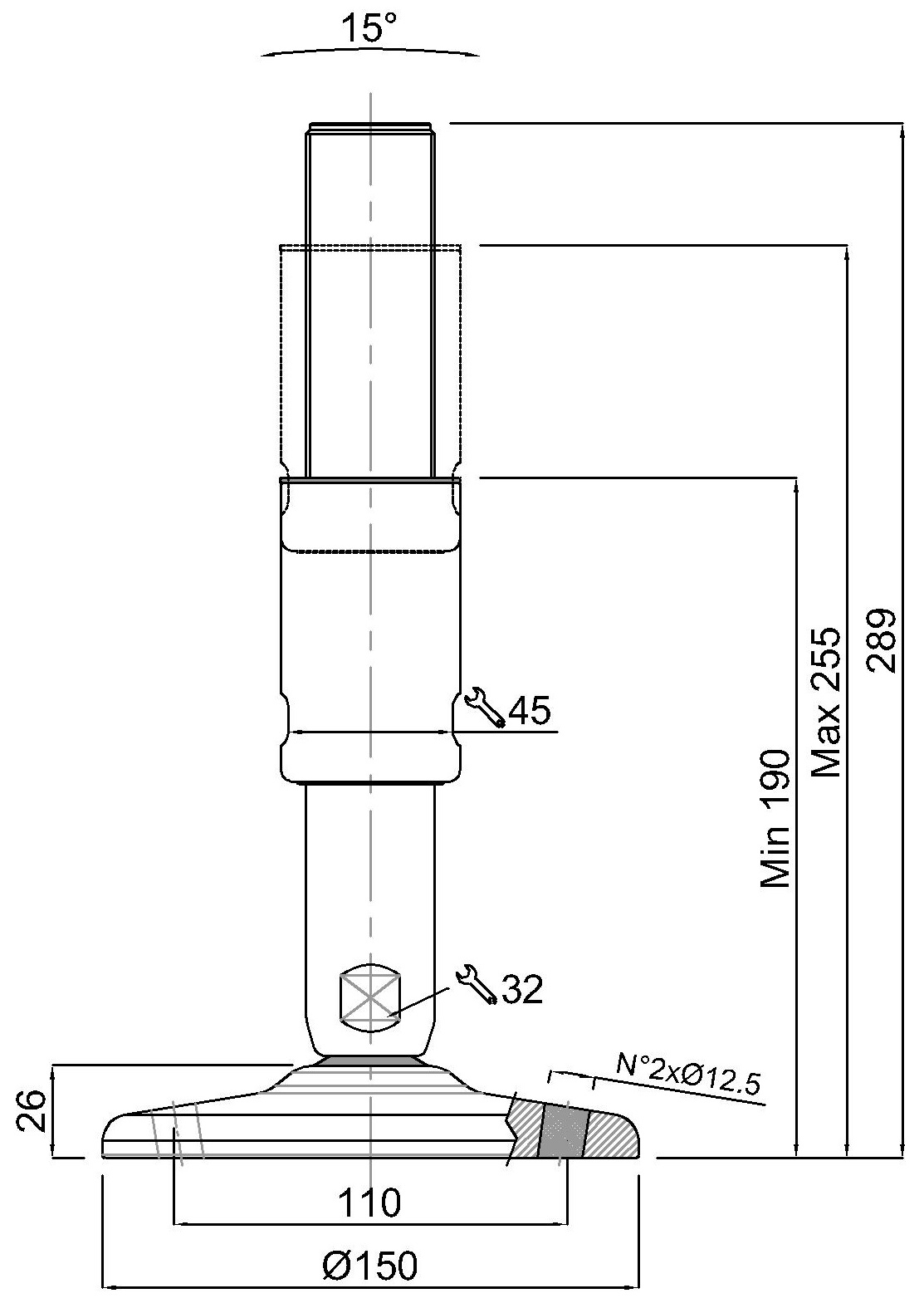

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M36 x 235 mm, Stainlees steel, Total height 289 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Static load 80.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
