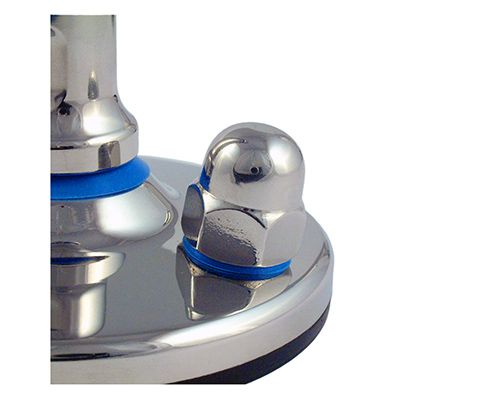

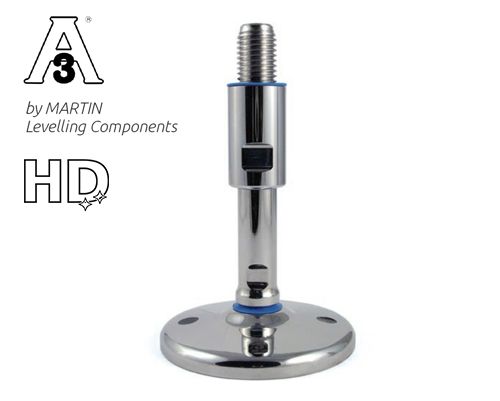

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M20 x 190 mm, Drills
Discover the TEKNO-HYGIENIC 3-A leveling foot, designed for optimal stability and hygiene. With a 120 mm diameter and a robust static load capacity of 45,000 N, it features a stainless steel construction, 15° adjustment angle, and a 70 mm adjustment range, ensuring precise leveling in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€84.53*
|
| From 13 |
€82.69*
|
| From 41 |
€81.46*
|
Currently sold out, Refill time: 5 days
Accessories
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
