Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M30 x 140 mm, Drills
EAN
4061408111077
Type
45827372F/3A
Enhance stability and hygiene with the TEKNO-HYGIENIC 3-A leveling foot. Crafted from stainless steel, it supports static loads up to 60,000 N and features a 15° adjustment.
| Quantity | Price |
|---|---|
| From 1 |
€80.44*
|
| From 13 |
€78.69*
|
| From 41 |
€77.53*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

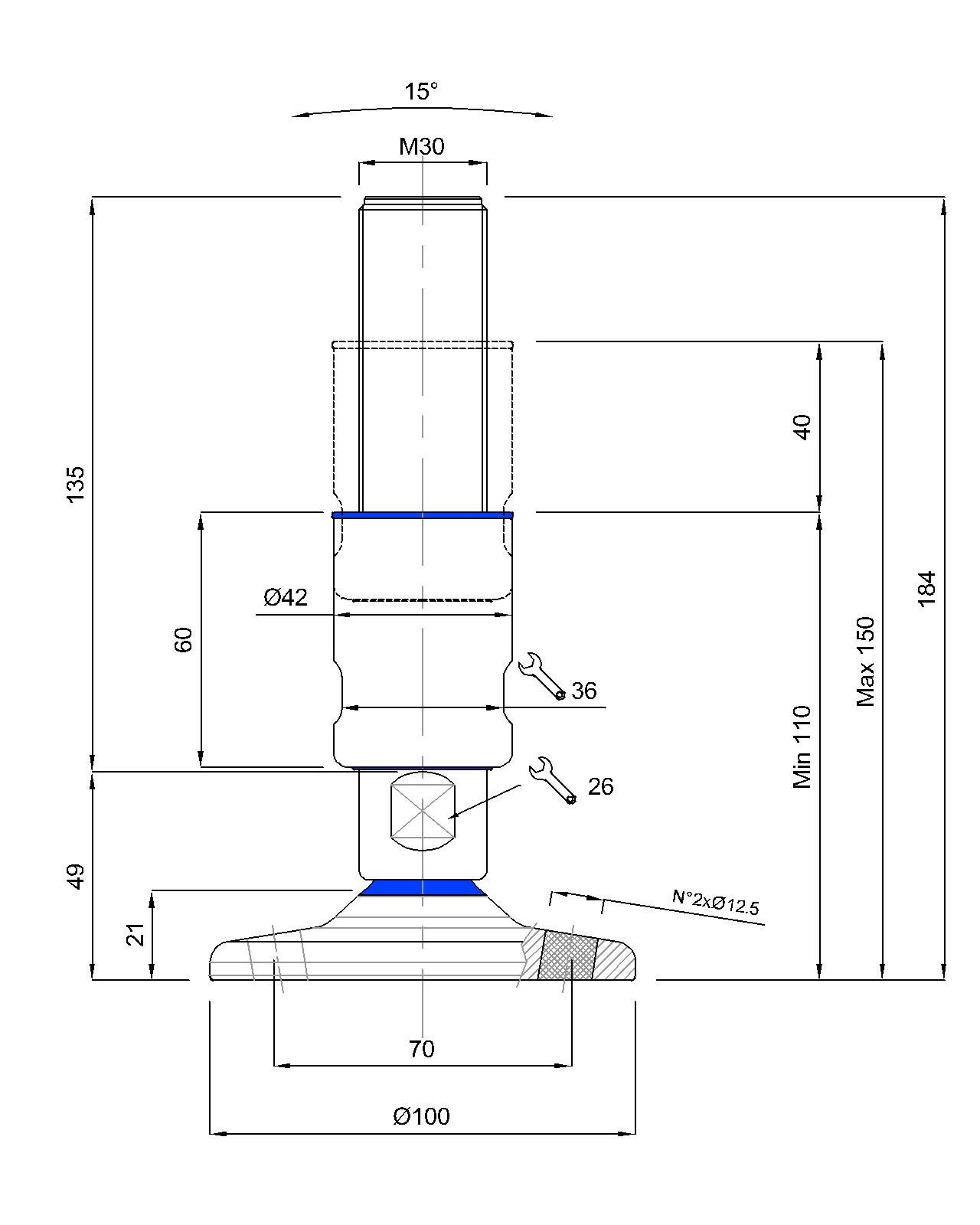

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M30 x 140 mm, Stainlees steel, Total height 184 mm, Articulated screw 15°, Adjustment range 40 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
