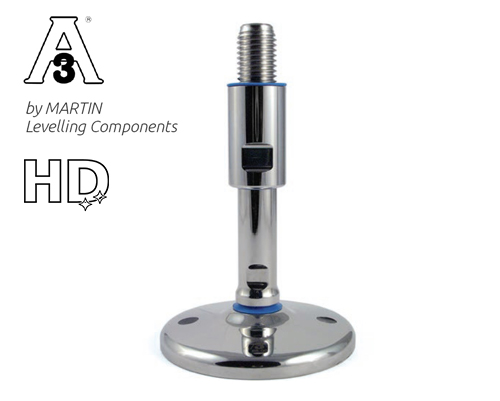

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M20 x 140 mm, Drills
Introducing the TEKNO-HYGIENIC 3-A leveling foot: crafted from stainless steel, it combines superior durability with a 15° adjustment angle. Ideal for demanding hygienic environments, it supports static loads up to 45,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€72.24*
|
| From 13 |
€70.67*
|
| From 41 |
€69.63*
|
Currently sold out, Refill time: 5 days
Accessories
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

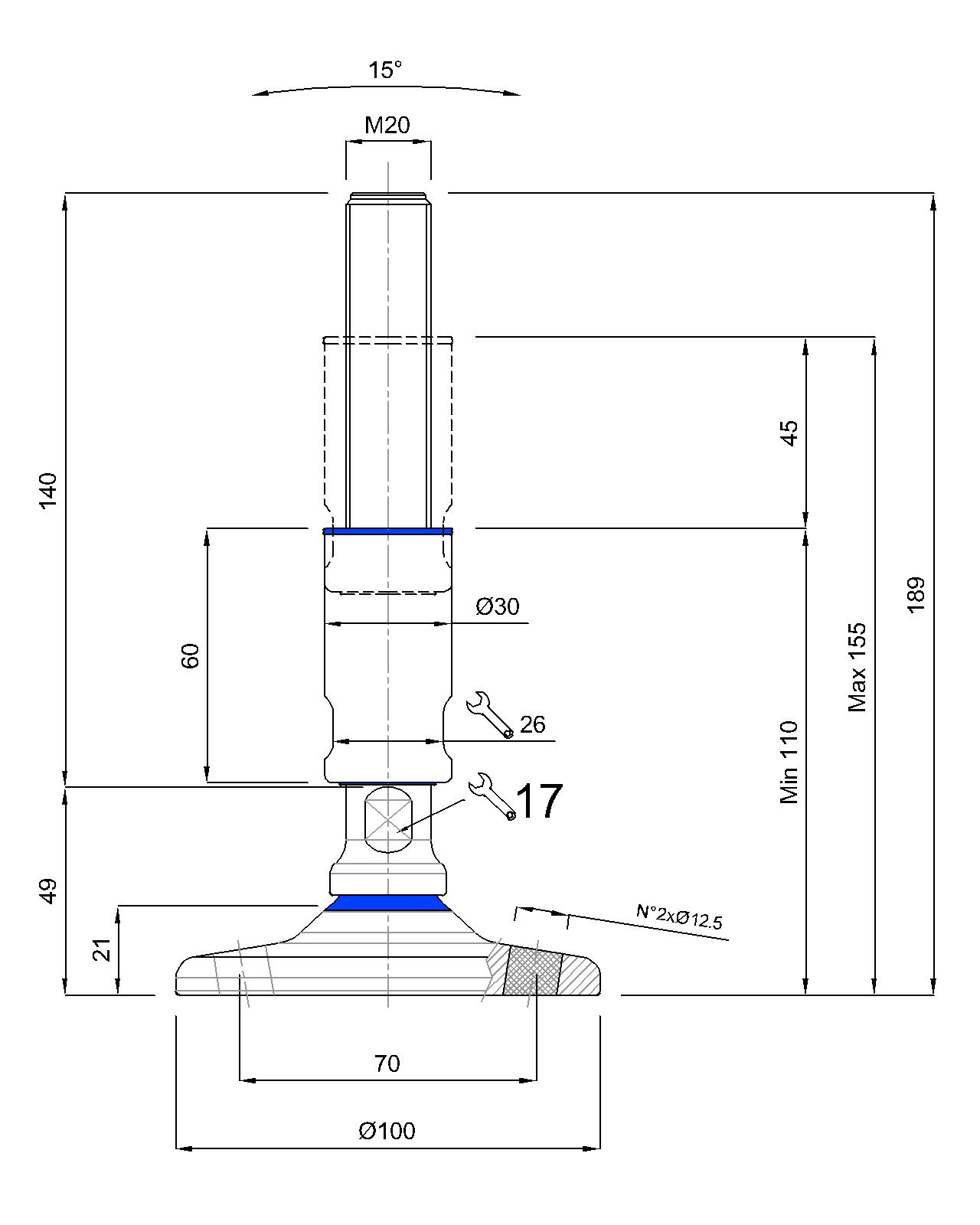

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
