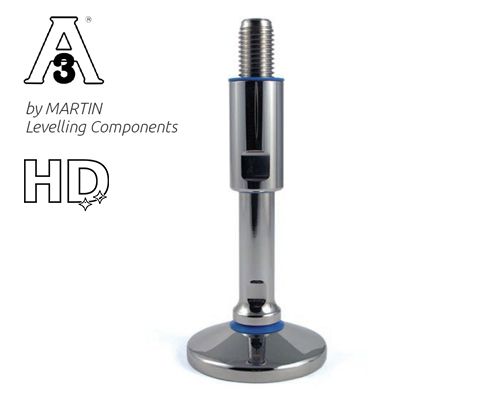

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M20 x 140 mm
EAN
4061408110971
Type
45827364/3A
The TEKNO-HYGIENIC 3-A levelling foot, made of stainless steel with a 100 mm diameter, ensures hygiene compliance and stability, supporting loads up to 45,000 N with a 15° adjustment range.
| Quantity | Price |
|---|---|
| From 1 |
€67.14*
|
| From 13 |
€65.68*
|
| From 41 |
€64.70*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

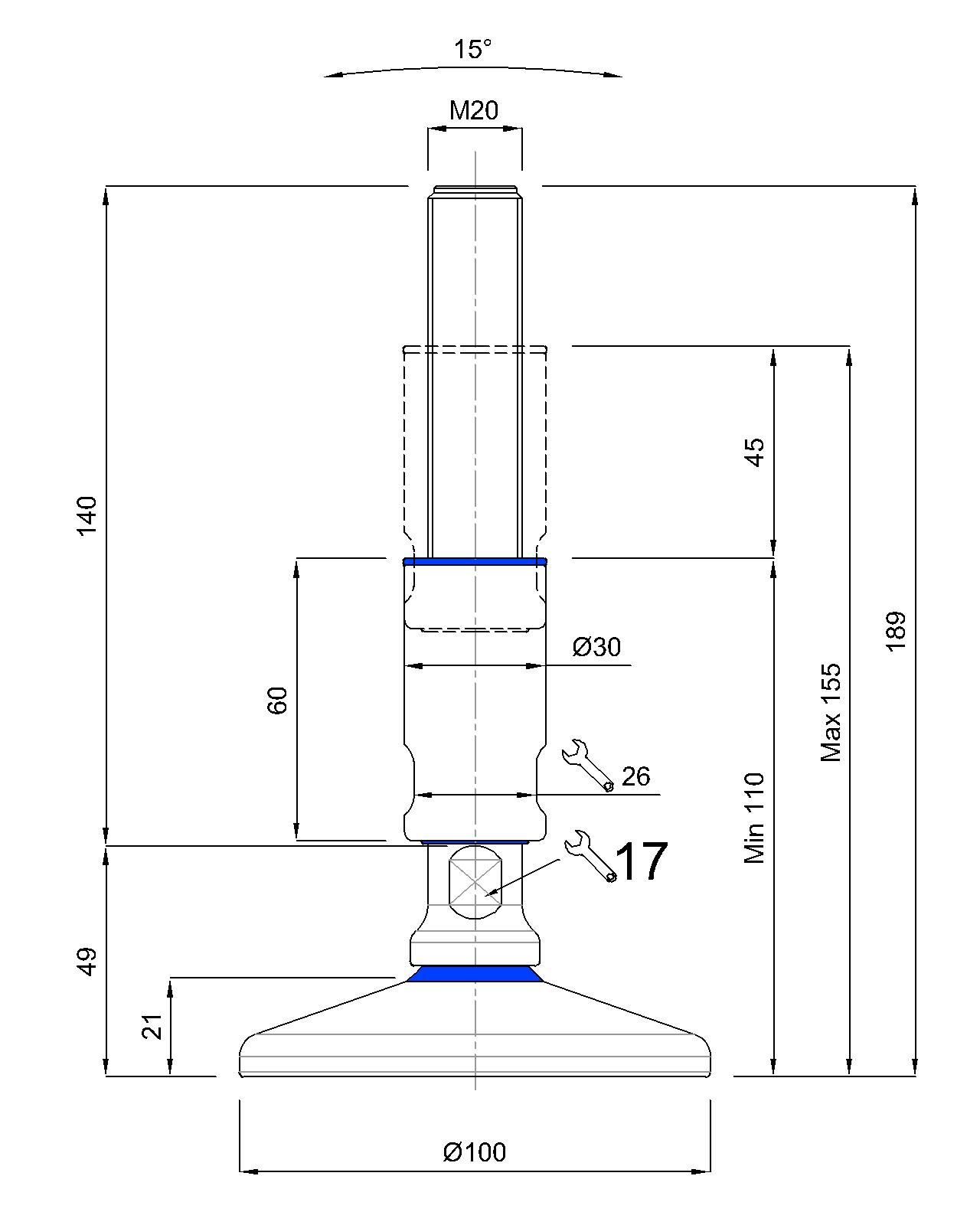

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 189 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
