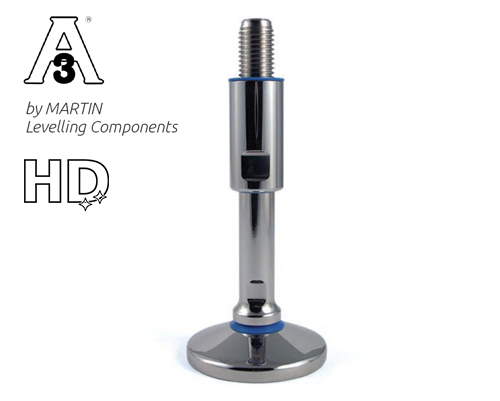

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 190 mm
EAN
4061408110964
Type
45827362/3A
Enhance stability with the TEKNO-HYGIENIC 3-A leveling foot. Crafted from stainless steel, it features a 100 mm diameter plate, 15° articulation, and a static load capacity of 40,000 N, ensuring robust and hygienic support.
| Quantity | Price |
|---|---|
| From 1 |
€73.03*
|
| From 13 |
€71.44*
|
| From 41 |
€70.38*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

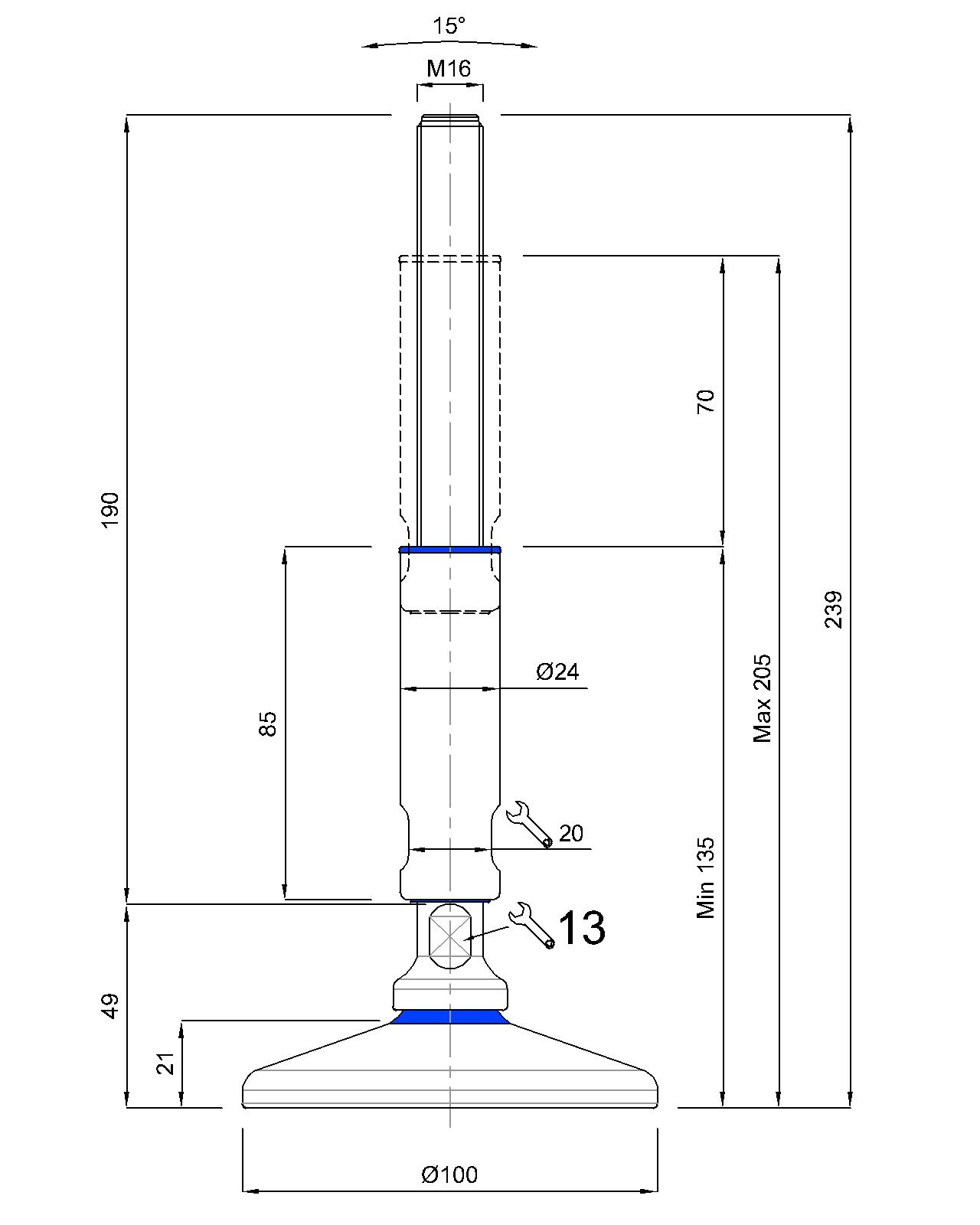

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 190 mm, Stainlees steel, Total height 239 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Static load 40.000 N
