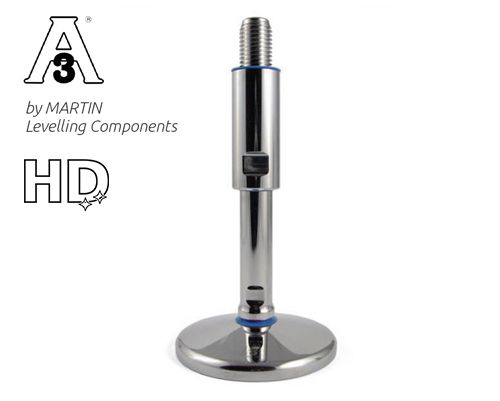

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 235 mm
Ensure stability and hygiene with the TEKNO-HYGIENIC 3-A leveling foot. Made of stainless steel, it features a 15° articulated screw, 286 mm total height, and an impressive 80,000 N static load capacity.
| Quantity | Price |
|---|---|
| From 1 |
€89.96*
|
| From 13 |
€88.01*
|
| From 41 |
€86.70*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 235 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
