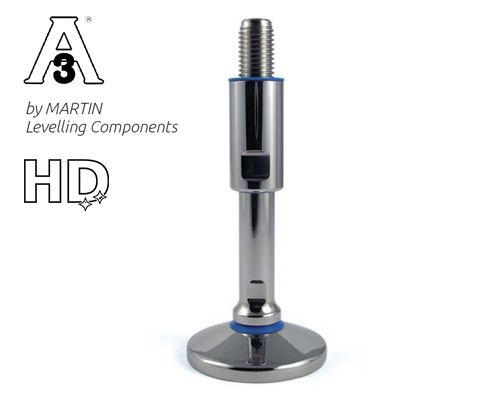

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 190 mm
EAN
4061408110674
Type
45827330/3A
The TEKNO-HYGIENIC 3-A leveling foot features a robust stainless steel design, Ø 60 mm plate, and 15° articulated screw, ensuring precise adjustment and superior hygiene compliance for demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€53.85*
|
| From 13 |
€52.68*
|
| From 41 |
€51.90*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 190 mm, Stainlees steel, Total height 235 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Static load 45.000 N
