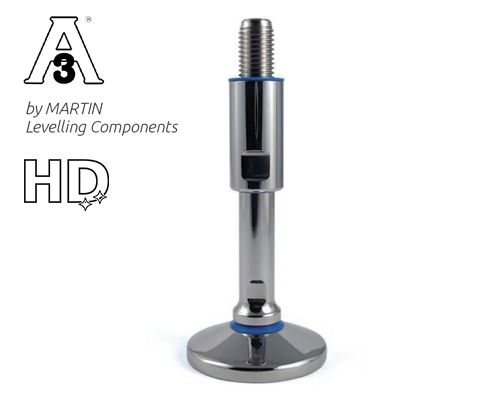

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm
EAN
4061408110667
Type
45827328/3A
Discover the TEKNO-HYGIENIC 3-A levelling foot, crafted from stainless steel for optimal durability. With a 185 mm height, 15° articulation, and a static load capacity of 45,000 N, it ensures precise adjustments while meeting 3-A Sanitary Standards for hygiene.
| Quantity | Price |
|---|---|
| From 1 |
€47.55*
|
| From 13 |
€46.52*
|
| From 41 |
€45.83*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 185 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
