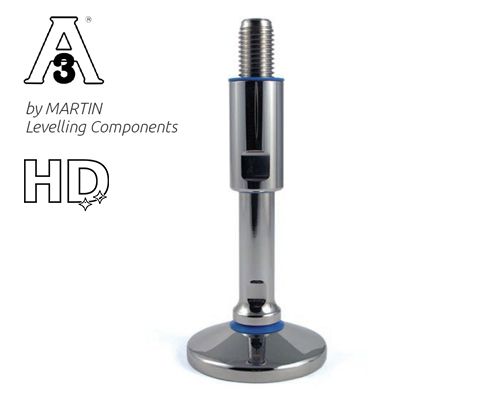

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M16 x 190 mm
Discover the TEKNO-HYGIENIC 3-A levelling foot, featuring a durable stainless steel design, adjustable height range of 70 mm, and a static load capacity of 40,000 N—ideal for hygiene-sensitive environments.
| Quantity | Price |
|---|---|
| From 1 |
€53.42*
|
| From 13 |
€52.26*
|
| From 41 |
€51.48*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
