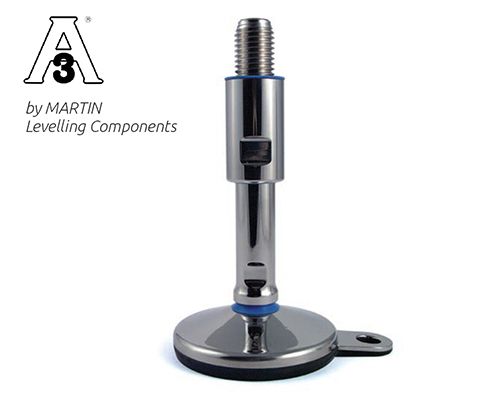

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M24 x 140 mm, Lug, NBR
EAN
4061408110599
Type
45827168F/3A
Introducing the TEKNO-HYGIENIC 3-A leveling foot: crafted from stainless steel with a 100mm diameter, it ensures optimal stability with a static load capacity of 25,000 N and a hygienic design compliant with 3-A Sanitary Standards.
| Quantity | Price |
|---|---|
| From 1 |
€48.92*
|
| From 13 |
€47.86*
|
| From 41 |
€47.15*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |

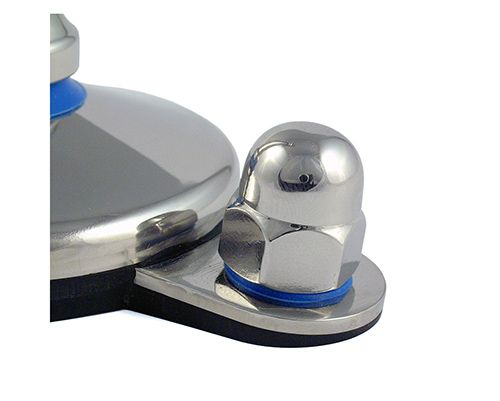

| Ground fastening: | 1 mounting lug |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M24 x 140 mm, Stainlees steel, Total height 196 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip NBR black, Static load 25.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
