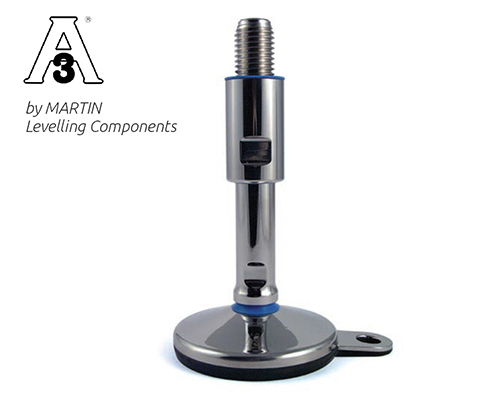

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M24 x 190 mm, Lug, NBR

EAN 4061408110551

Type 45827152F/3A

Discover the TEKNO-HYGIENIC 3-A levelling foot, featuring a sturdy stainless steel construction and exceptional adjustment capabilities. Ideal for hygienic applications with a static load capacity of 20,000 N.

Constructed from high-quality stainless steel, ensuring superior durability and corrosion resistance.
Features a hygiene certification in accordance with 3-A Sanitary Standards, making it ideal for sanitary applications.
Adjustable range of 70 mm with a maximum articulation angle of 15°, providing flexibility for various installation requirements.
Equipped with an anti-slip NBR black pad, ensuring a secure and stable footing even under heavy static loads of up to 20,000 N.
Designed with an M24 x 190 mm screw, compatible with a wide range of mounting needs and applications.

Quantity	Price
From 1	€52.48*
From 13	€51.34*
From 41	€50.58*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€52.48* / piece

Our payment methods:

Accessories

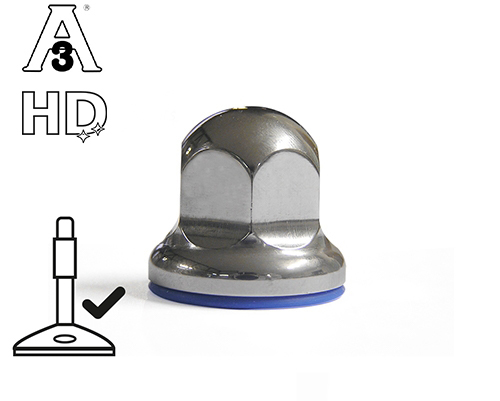

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

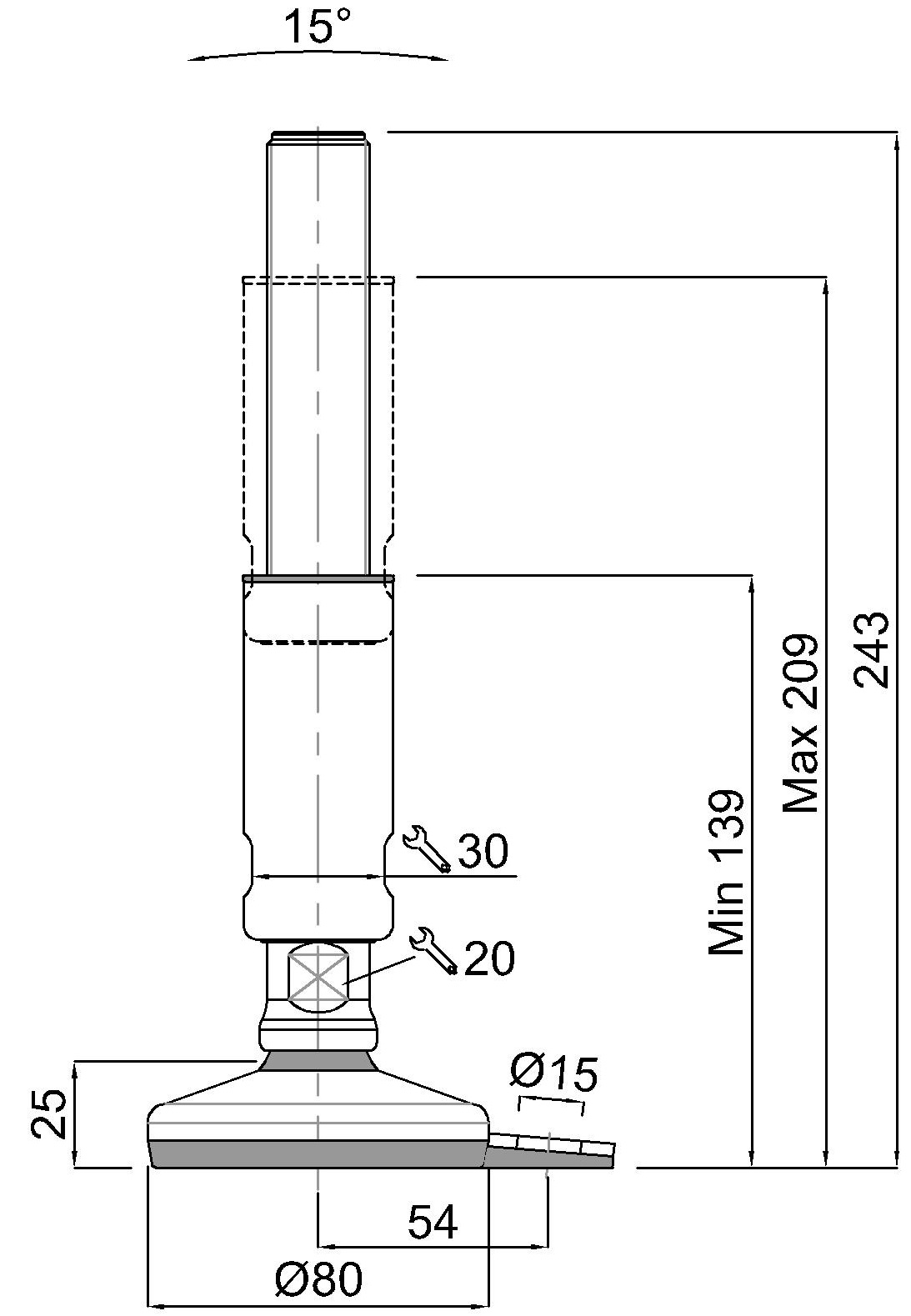

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M24 x 190 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Lug Ø 15 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
