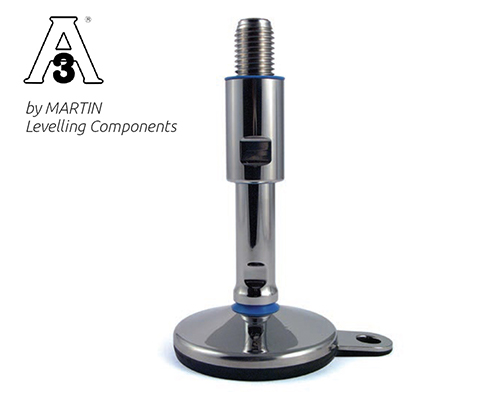

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M24 x 140 mm, Lug, NBR

EAN 4061408110544

Type 45827150F/3A

Enhance your equipment stability with the TEKNO-HYGIENIC 3-A leveling foot. Made of stainless steel, it supports up to 20,000 N, featuring a 45 mm adjustment range and 3-A certification for hygienic applications.

Robust stainless steel construction ensures durability and corrosion resistance under harsh conditions.
Adjustable height with a 45 mm range and a 15° articulated screw allows for precise leveling in various applications.
Complies with 3-A Sanitary Standards, making it suitable for hygienic environments such as food and pharmaceutical industries.
Features an anti-slip NBR black base, providing excellent grip and stability, accommodating static loads up to 20,000 N.
Mounting versatility with a 1 lug fixing system, ensuring secure attachment to various surfaces.

Quantity	Price
From 1	€46.53*
From 13	€45.52*
From 41	€44.85*

*Prices excl. VAT plus shipping costs

8 on stock, Refill time: 5 days

€46.53* / piece

Our payment methods:

Accessories

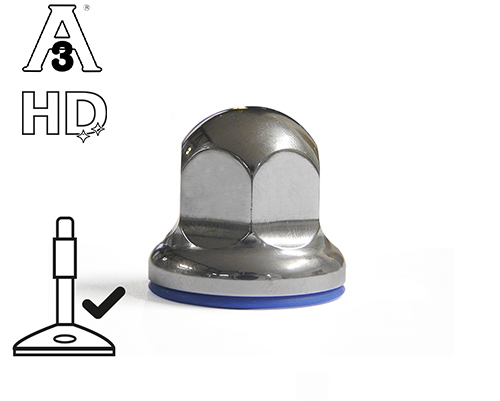

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M24 x 140 mm, Stainlees steel, Total height 193 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
