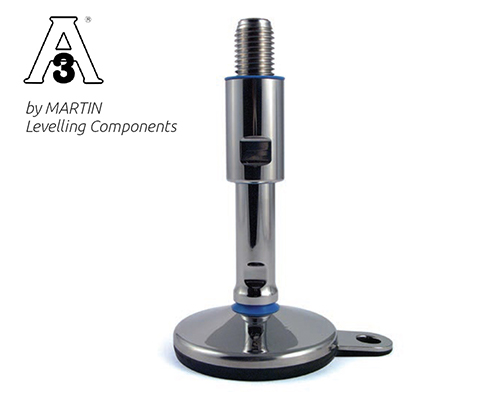

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M20 x 140 mm, Lug, NBR

EAN 4061408110520

Type 45827146F/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot, designed for precision and hygiene. Features include a durable stainless steel construction, adjustable range, and 3-A Sanitary certification, ensuring reliability for technical applications.

Constructed from high-quality stainless steel for enhanced durability and corrosion resistance
Features a hygienic design certified to 3-A Sanitary Standards, ensuring compliance in food and pharmaceutical applications
Adjustable height of up to 55 mm with a total height of 195 mm, providing versatile leveling solutions
Capable of supporting static loads up to 20,000 N, ensuring stability and reliability in industrial settings
Anti-slip NBR rubber base and articulated screw allowing for a 15° adjustment angle for optimal leveling on uneven surfaces

Quantity	Price
From 1	€44.31*
From 13	€43.35*
From 41	€42.71*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€44.31* / piece

Our payment methods:

Accessories

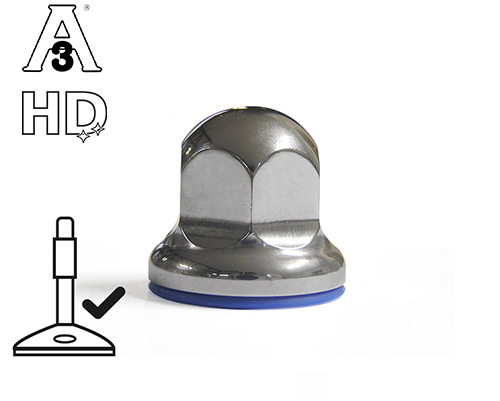

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

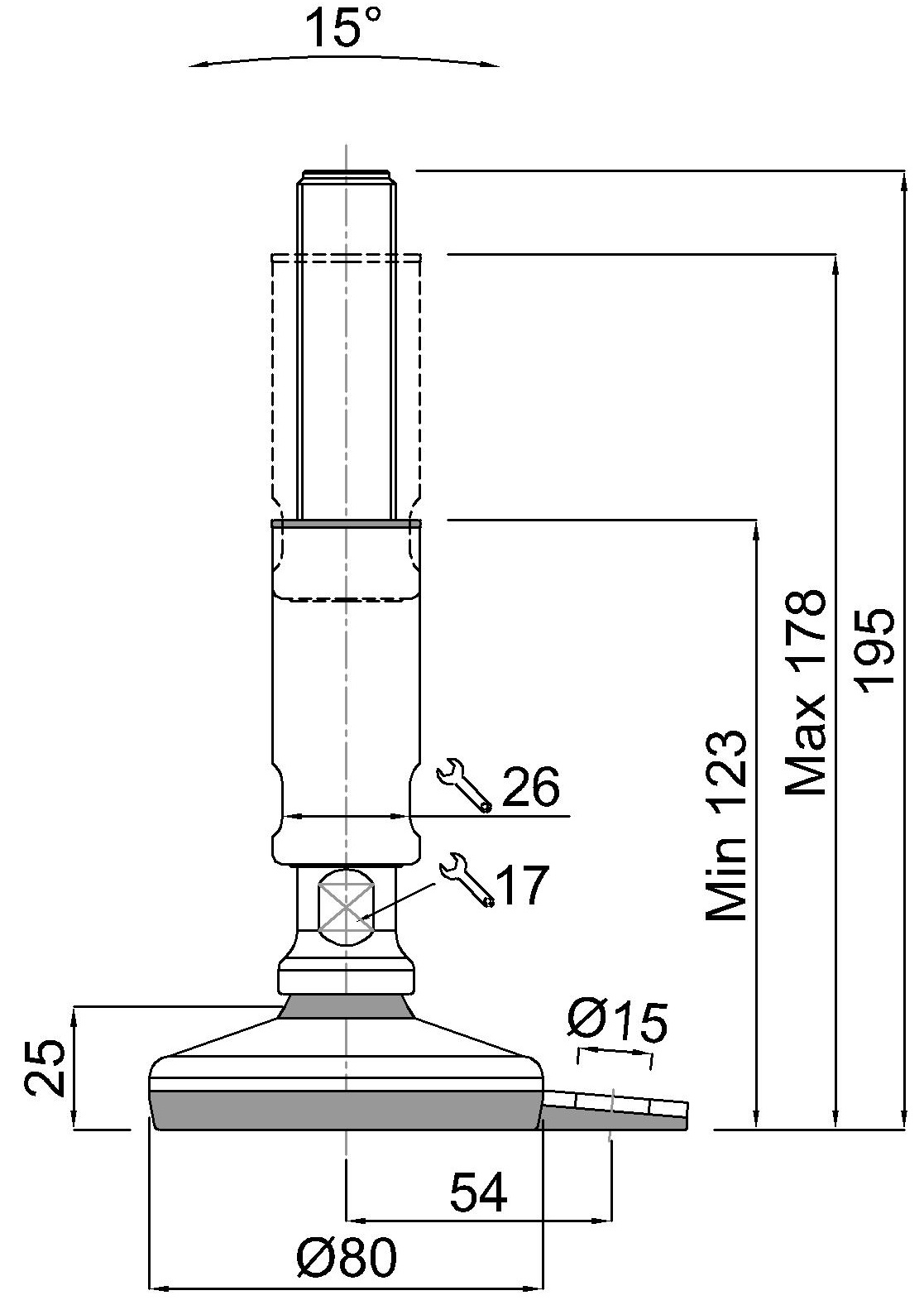

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 195 mm, Articulated screw 15°, Adjustment range 55 mm, Bushing 70 mm, Lug Ø 15 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
