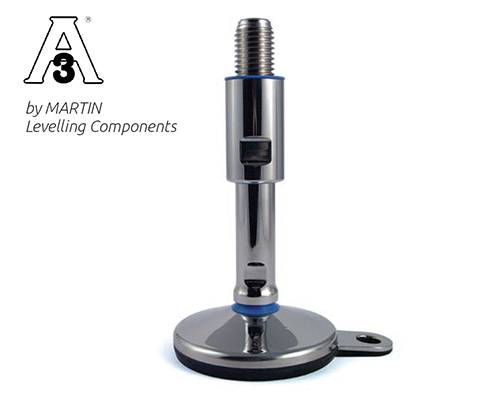

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M20 x 140 mm, Lug, NBR

EAN 4061408110513

Type 45827144F/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot, featuring a robust stainless steel construction and 3-A hygiene certification. With an adjustable height and an impressive static load capacity of 20,000 N, it ensures optimal stability for various applications.

High load capacity of 20,000 N ensures stability and durability in demanding environments
Constructed from stainless steel for enhanced corrosion resistance and extended lifecycle
Hygienically certified to 3-A Sanitary Standard, ideal for food and medical applications
Adjustable height with a range of 45 mm and articulated screw allowing for precise leveling
Anti-slip NBR base provides secure footing, preventing unwanted movement in critical setups

Quantity	Price
From 1	€42.95*
From 13	€42.01*
From 41	€41.39*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€42.95* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

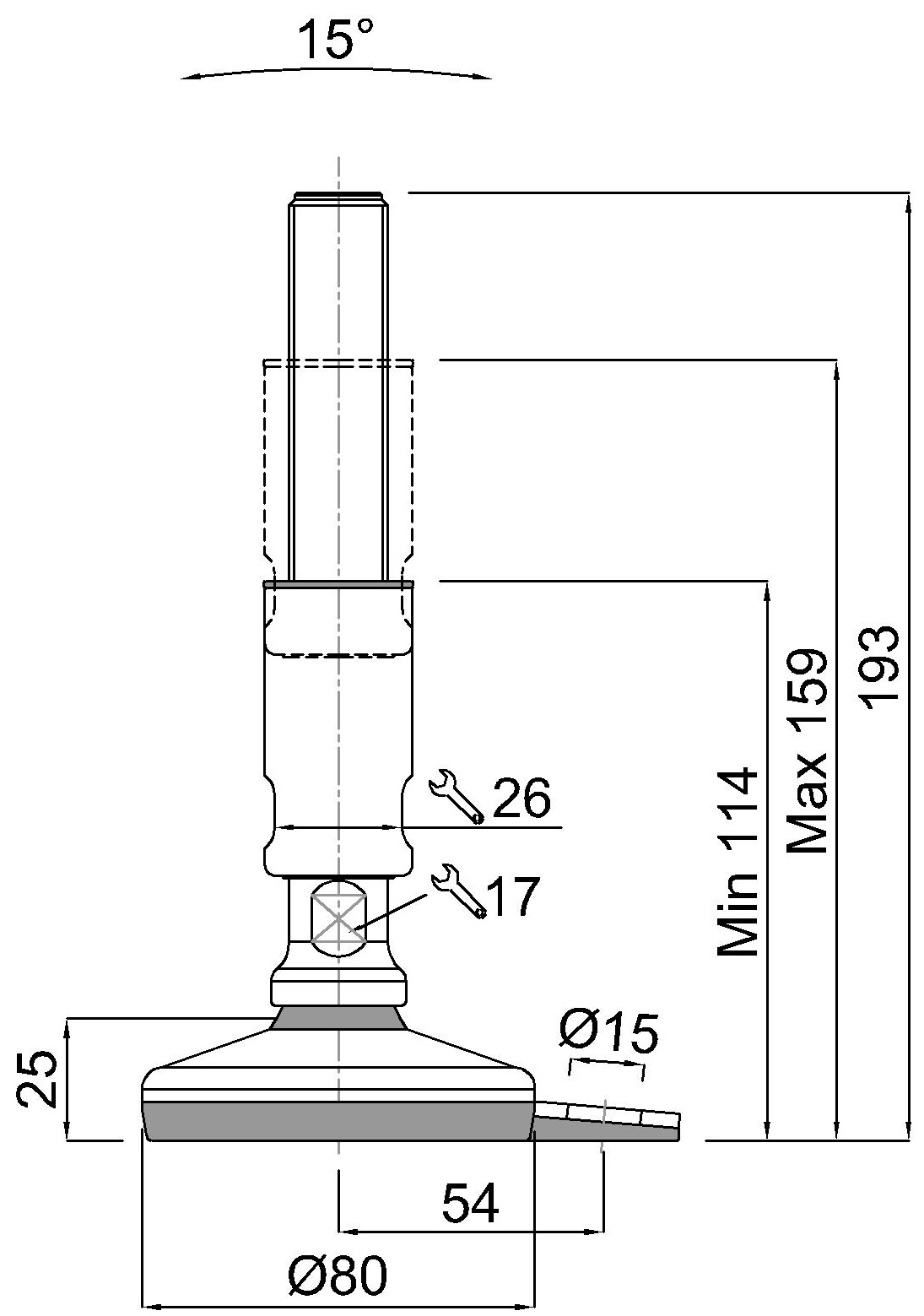

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 193 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
