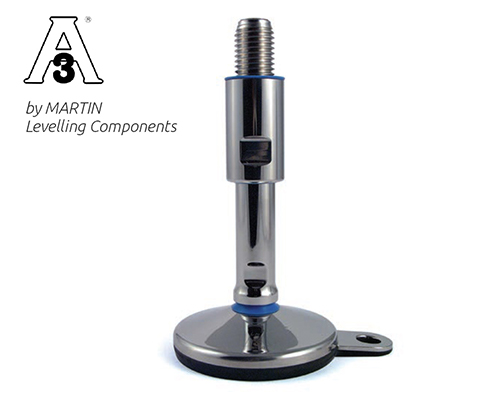

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 190 mm, Lug, NBR

EAN 4061408110490

Type 45827130F/3A

Discover the TEKNO-HYGIENIC 3-A levelling foot, featuring a robust stainless steel design with a 15° adjustment angle, ensuring stability and hygiene in demanding environments.

Constructed from high-grade stainless steel for superior durability and corrosion resistance
Designed to meet 3-A Sanitary Standards, ensuring compliance with hygiene regulations
Adjustable range of 70 mm with a 15° articulated screw provides flexibility for uneven surfaces
Features a robust static load capacity of 10,000 N, making it suitable for heavy-duty applications
Equipped with an anti-slip NBR base to enhance stability and prevent slippage in various conditions

Quantity	Price
From 1	€47.55*
From 13	€46.52*
From 41	€45.83*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€47.55* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	51-70

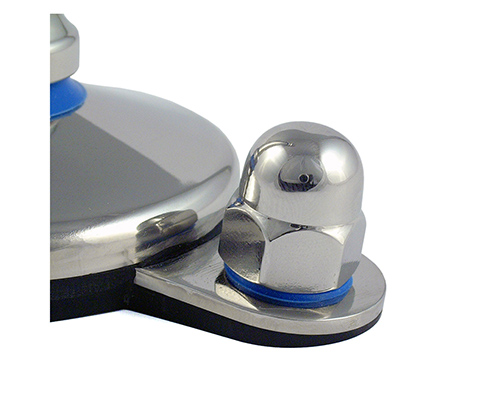

Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

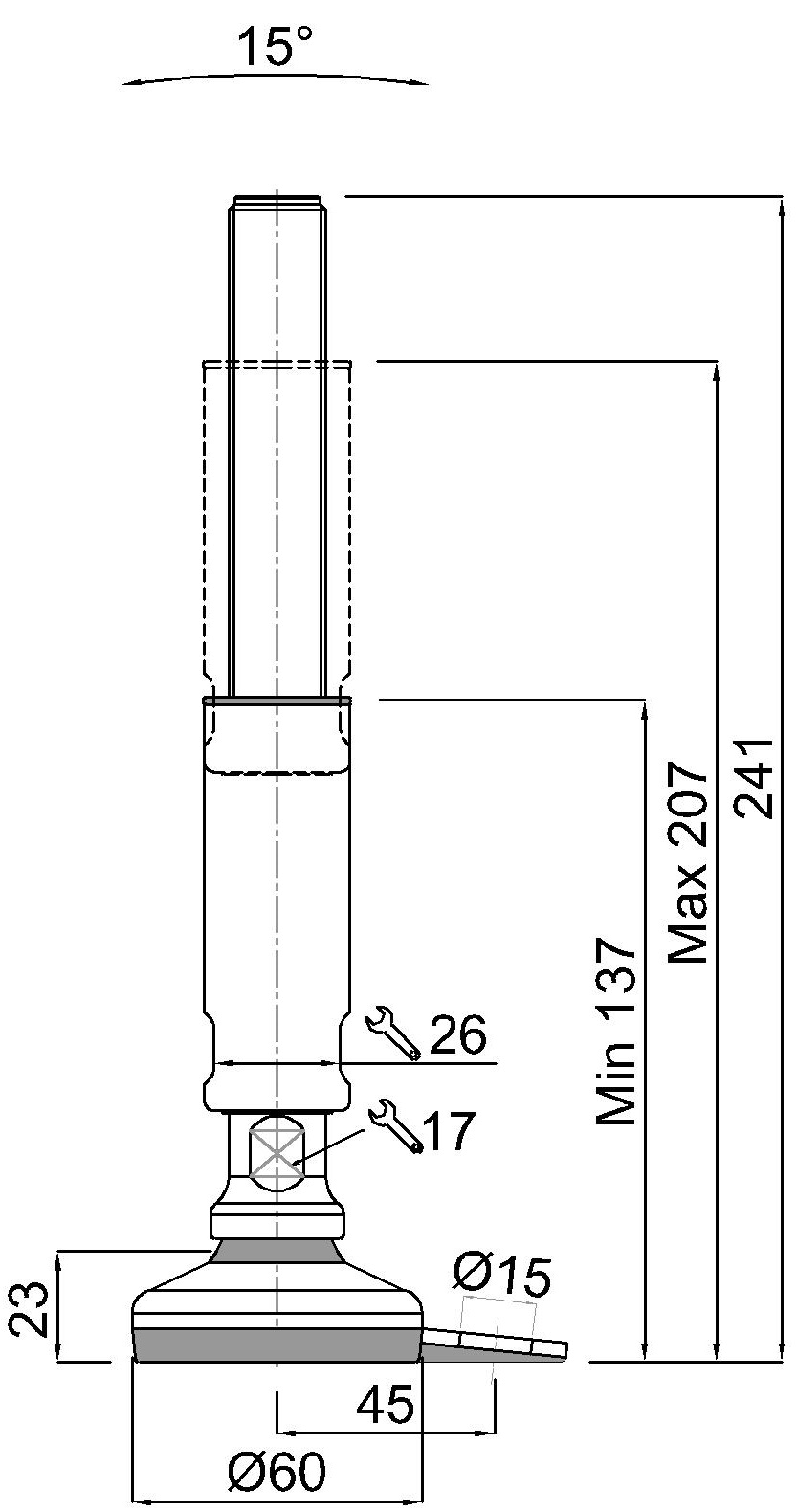

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 190 mm, Stainlees steel, Total height 241 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Lug Ø 15 mm, Antislip NBR black, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
