Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm, Lug, NBR

EAN 4061408110483

Type 45827128F/3A

Discover the TEKNO-HYGIENIC 3-A levelling foot, crafted from stainless steel with a Ø 60 mm base, designed for optimal stability and hygiene compliance, supporting loads up to 10,000 N.

Made from high-quality stainless steel for enhanced durability and resistance to corrosion.
3-A Sanitary Standard certification ensures compliance with hygiene requirements, ideal for sanitary applications.
Articulated screw design allows for a 15° adjustment angle, providing flexible leveling capabilities.
Adjustable height range of 45 mm accommodates various surface irregularities.
Features a robust static load capacity of 10,000 N, ensuring stability and support under heavy loads.

Quantity	Price
From 1	€41.23*
From 13	€40.34*
From 41	€39.74*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€41.23* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	51-70
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

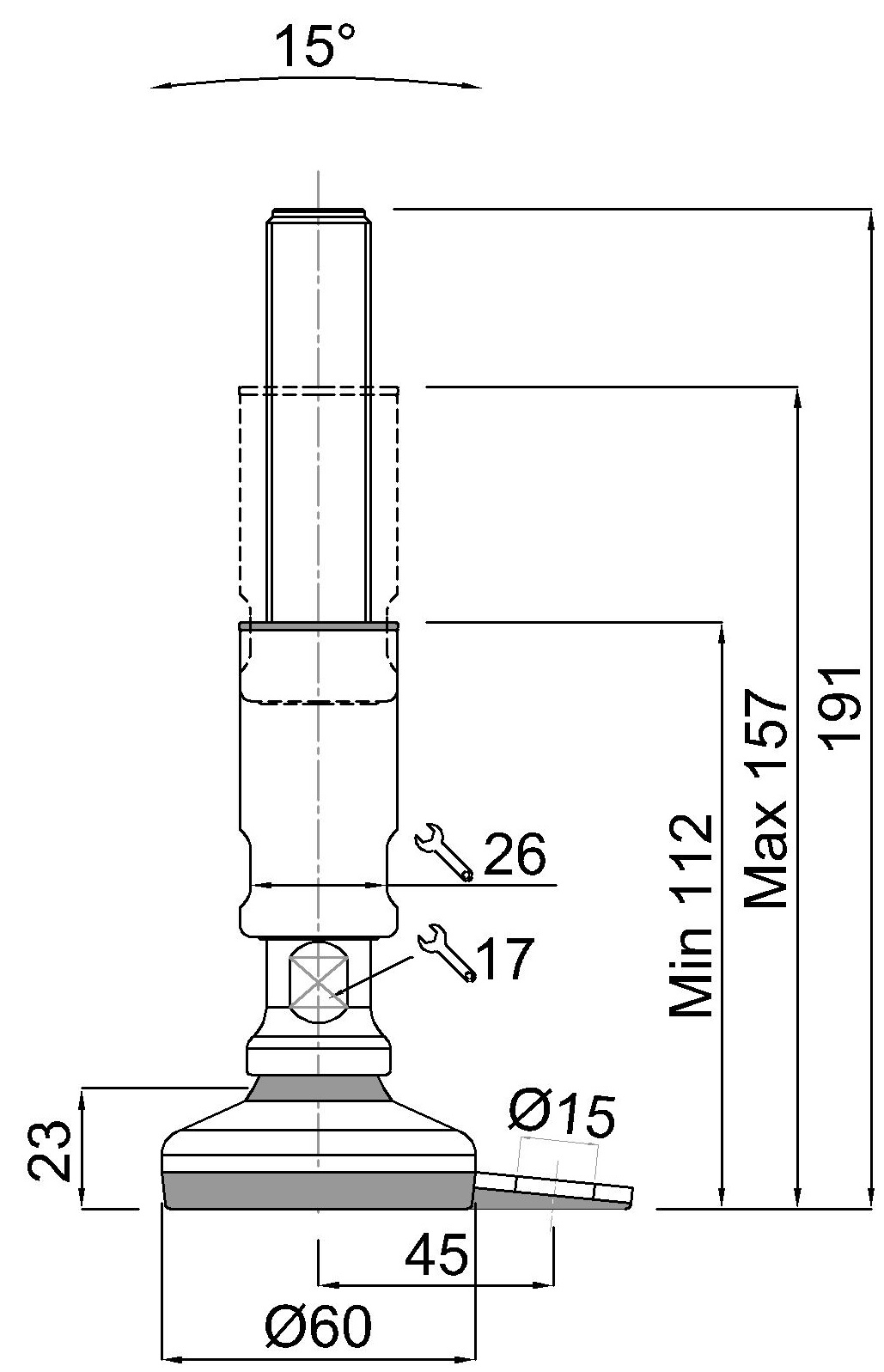

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 191 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip NBR black, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
