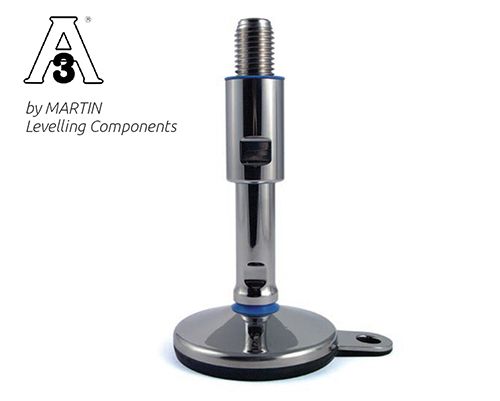

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M16 x 190 mm, Lug, NBR

EAN 4061408110476

Type 45827126F/3A

Introducing the TEKNO-HYGIENIC 3-A levelling foot: engineered from stainless steel, it offers superior stability with a static load capacity of 10,000 N and a hygienic design compliant with 3-A standards.

Robust design with a stainless steel base and spindle, ensuring exceptional durability and resistance to corrosion.
Hygienically certified according to 3-A Sanitary Standard, making it ideal for applications in food processing and clean environments.
Adjustable articulated screw allows for a 15° leveling range, accommodating uneven surfaces effectively.
High static load capacity of 10,000 N, ensuring reliable support for heavy equipment and machinery.
Antislip NBR black rubber provides excellent grip and stability, minimizing the risk of displacement in operational environments.

Quantity	Price
From 1	€47.13*
From 13	€46.10*
From 41	€45.42*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€47.13* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	51-70
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

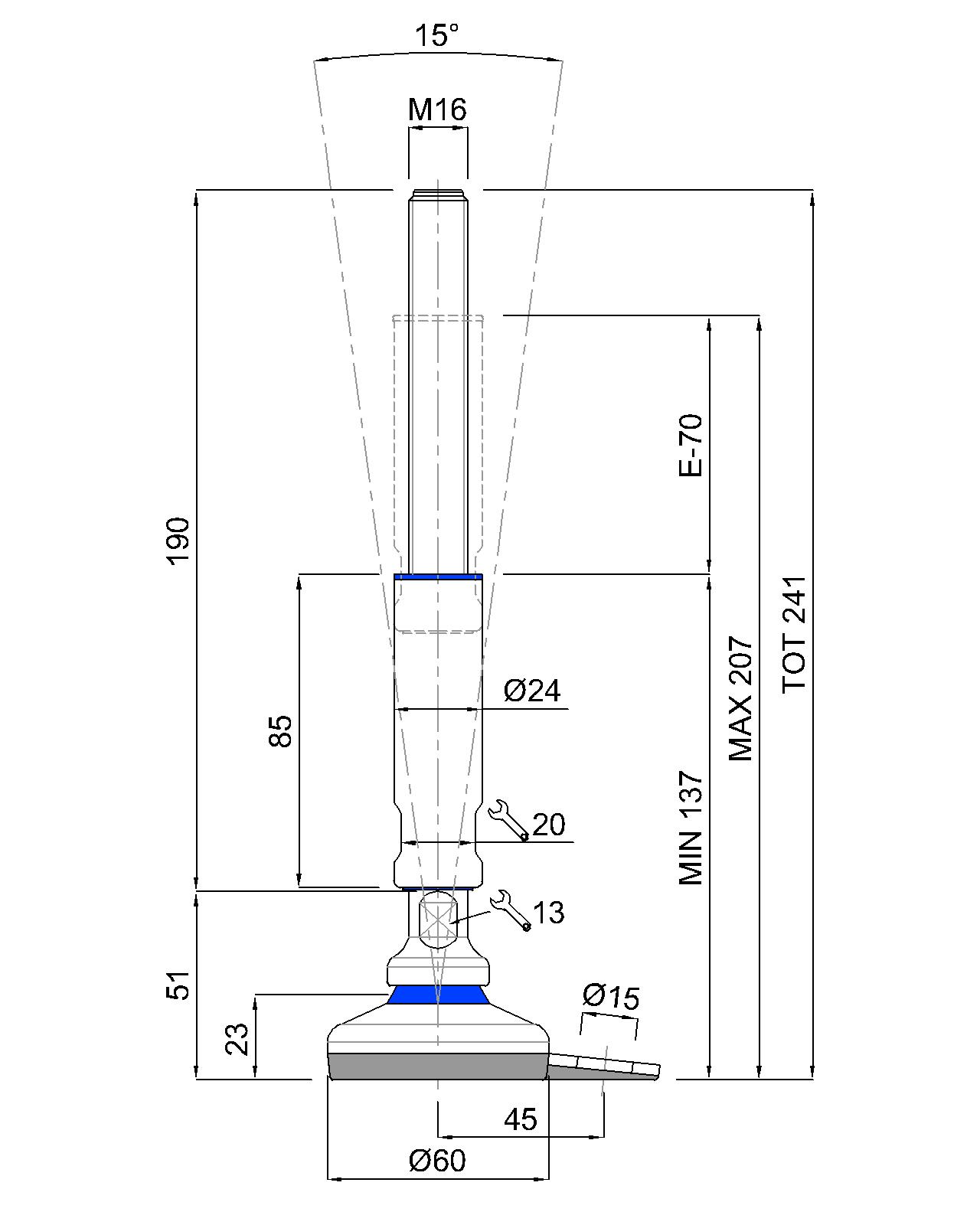

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M16 x 190 mm, Stainlees steel, Total height 241 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Lug Ø 15 mm, Antislip NBR black, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
