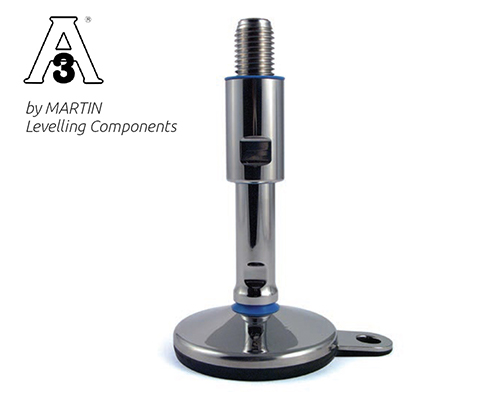

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M16 x 140 mm, Lug, NBR

EAN 4061408110469

Type 45827124F/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot with a hygienic stainless steel design, adjustable range of 45 mm, and robust NBR anti-slip pads, ensuring stability up to 10,000 N.

Constructed from high-quality stainless steel, ensuring durability and resistance to corrosion.
Features an articulated screw design with a 15° adjustment angle, providing flexibility in installation.
Antislip NBR black coating enhances grip and stability, accommodating static loads of up to 10,000 N.
Complies with 3-A Sanitary Standards, making it ideal for hygienic environments.
Total height of 191 mm with a height adjustment range of 45 mm for versatile application.

Quantity	Price
From 1	€39.30*
From 13	€38.45*
From 41	€37.88*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€39.30* / piece

Our payment methods:

Accessories

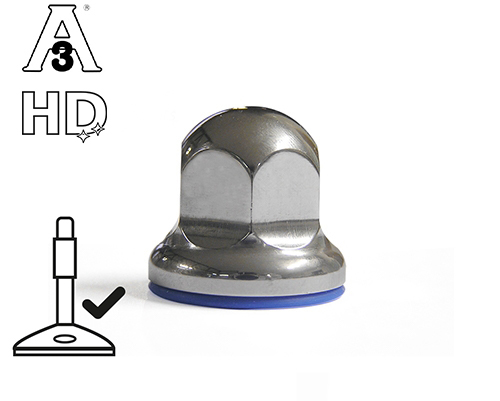

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	51-70

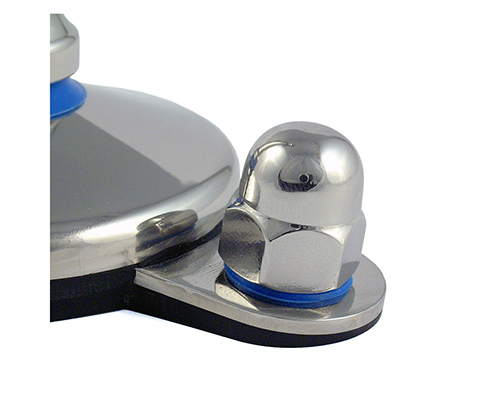

Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

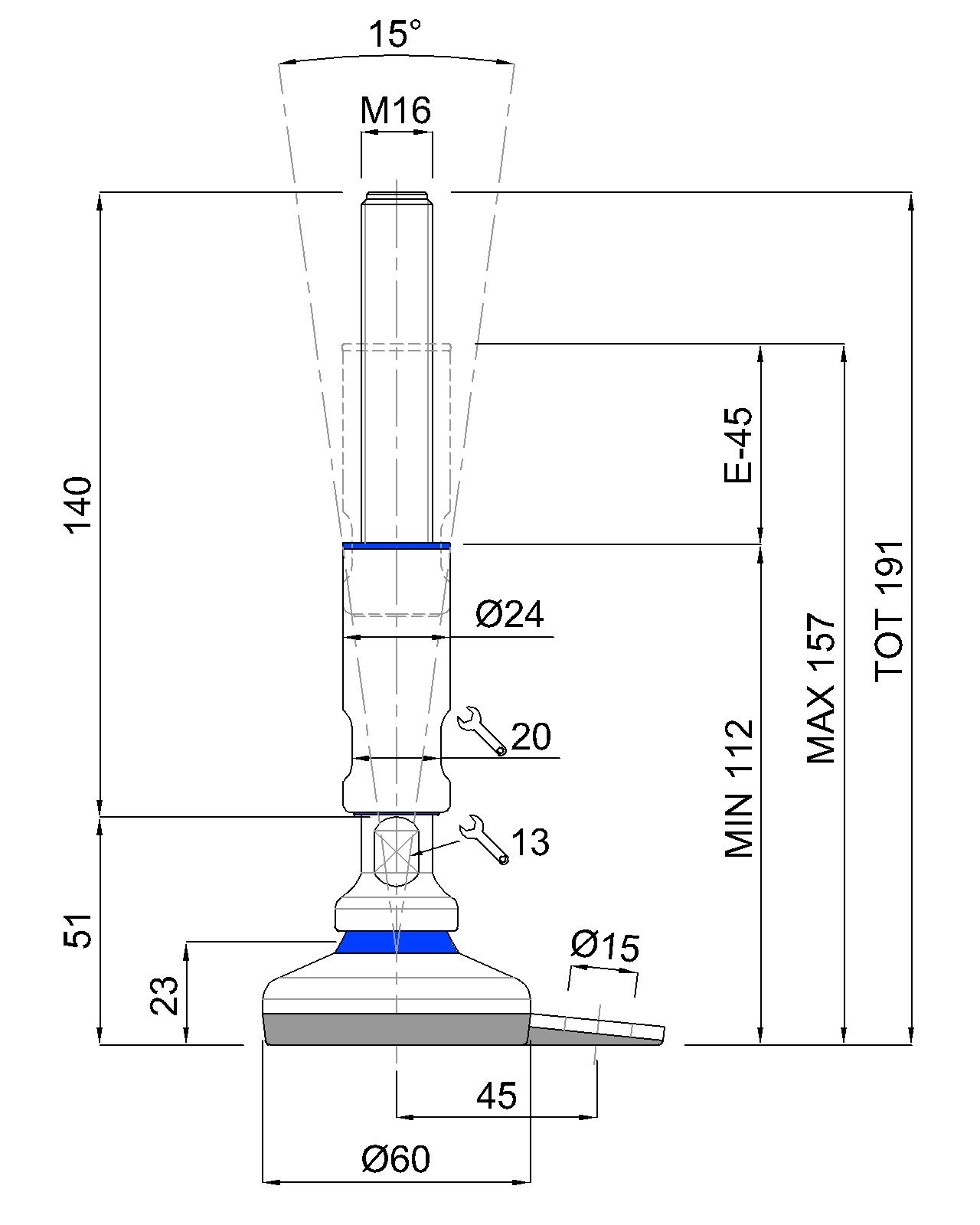

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 191 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip NBR black, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
