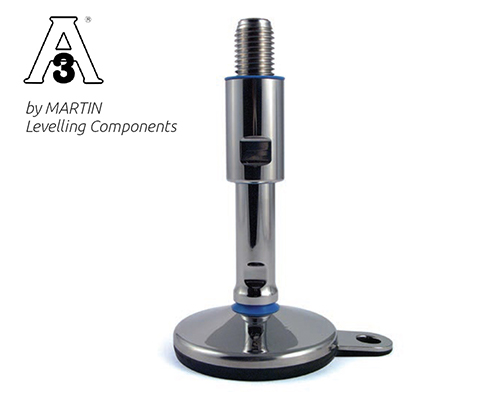

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M12 x 190 mm, Lug, NBR
Introducing the TEKNO-HYGIENIC 3-A leveling foot: a robust stainless steel solution with an adjustable range of 70 mm, designed for hygienic applications, ensuring stability and compliance with 3-A Sanitary Standards.
| Quantity | Price |
|---|---|
| From 1 |
€47.03*
|
| From 13 |
€46.01*
|
| From 41 |
€45.33*
|
Currently sold out, Refill time: 5 days
Accessories
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |

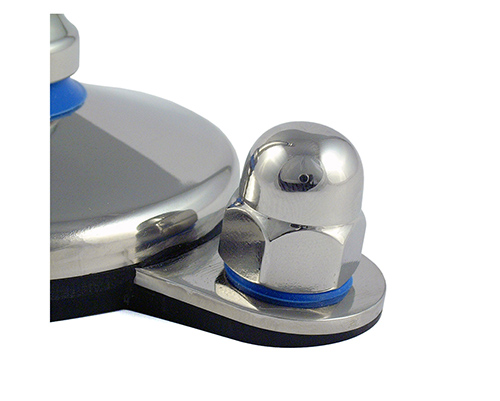

| Ground fastening: | 1 mounting lug |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

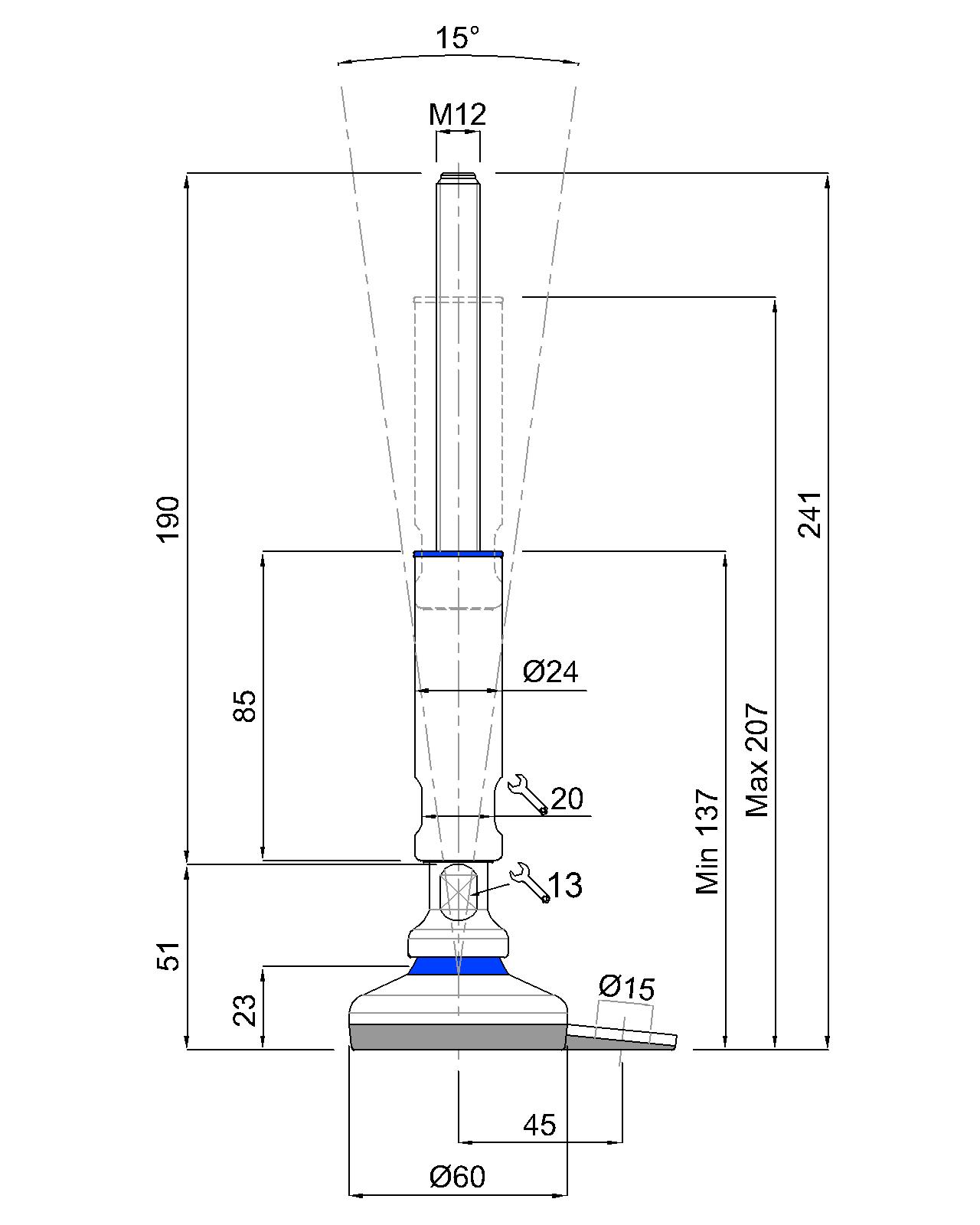

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
