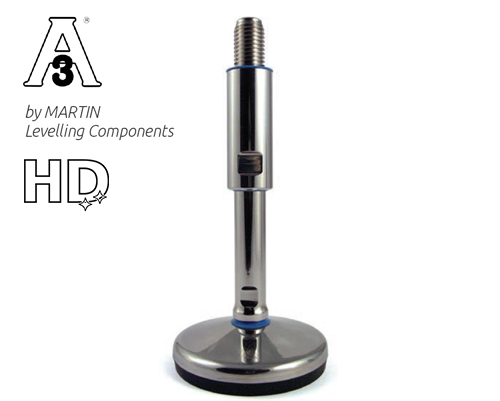

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 190 mm, NBR

4061408110407
45827220/3A

Enhance stability and hygiene with the TEKNO-HYGIENIC levelling foot. Made from stainless steel, it features a 15° articulated screw and a static load capacity of 35,000 N.

  • Constructed from high-quality stainless steel, ensuring durability and resistance to corrosion in demanding environments.
  • Features a unique 3-A Sanitary Standard certification, ideal for hygienic applications and compliant with strict cleanliness regulations.
  • Equipped with an articulated screw allowing up to 15° adjustment, providing exceptional leveling capabilities in uneven installations.
  • Offers a significant static load capacity of 35,000 N, making it suitable for heavy-duty applications without compromising stability.
  • Anti-slip NBR black base enhances grip and stability, preventing unwanted movement in operational settings.
Quantity Price
From 1
€69.19*
From 13
€67.69*
From 41
€66.69*

Currently sold out, Refill time: 5 days

€69.19* / piece
Our payment methods:

Product properties


Footplate material: Stainless steel
Anti-slip: NBR black
Ø range base plate (mm): 131-230
Material spindle: Stainless steel
Ø spindle (mm): 30
Spindle length (mm): 190
Balancing angle: 15°
Hygiene: Yes
Hygiene certification: 3-A Sanitary Standard

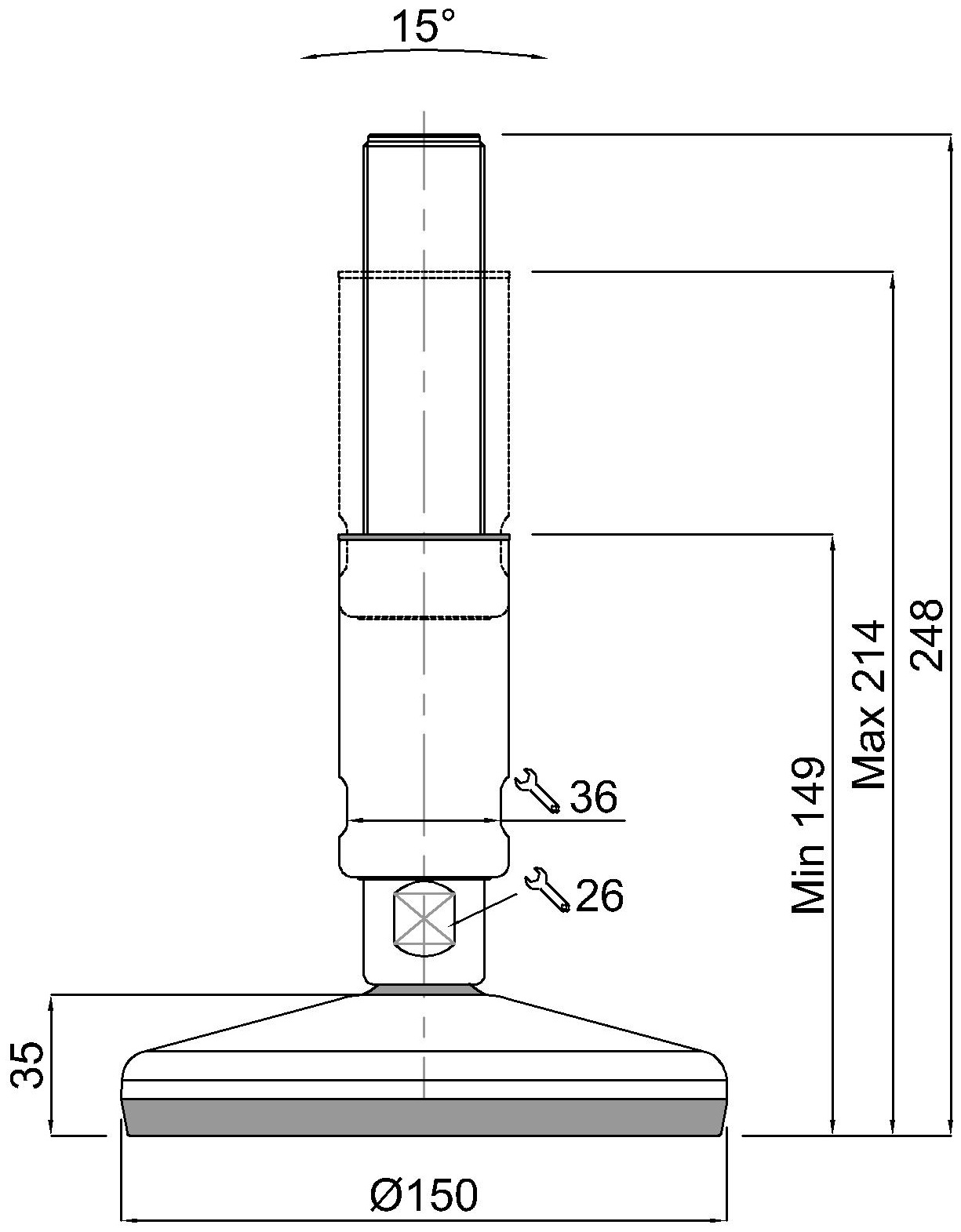

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 190 mm, Stainlees steel, Total height 248 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Antislip NBR black, Static load 35.000 N
