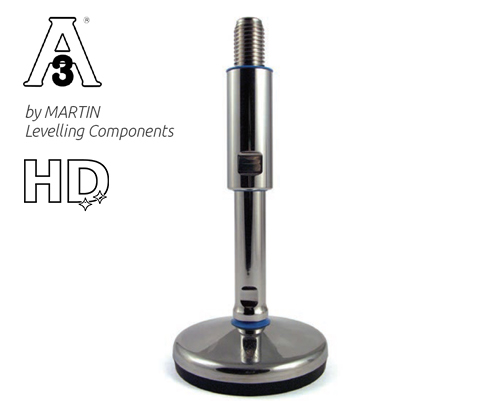

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M24 x 190 mm, NBR
Elevate your equipment with the TEKNO-HYGIENIC 3-A leveling foot. Made of stainless steel and featuring a 15° articulated screw, it ensures stability, hygiene, and exceptional static load capacity of 35,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€65.77*
|
| From 13 |
€64.34*
|
| From 41 |
€63.39*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

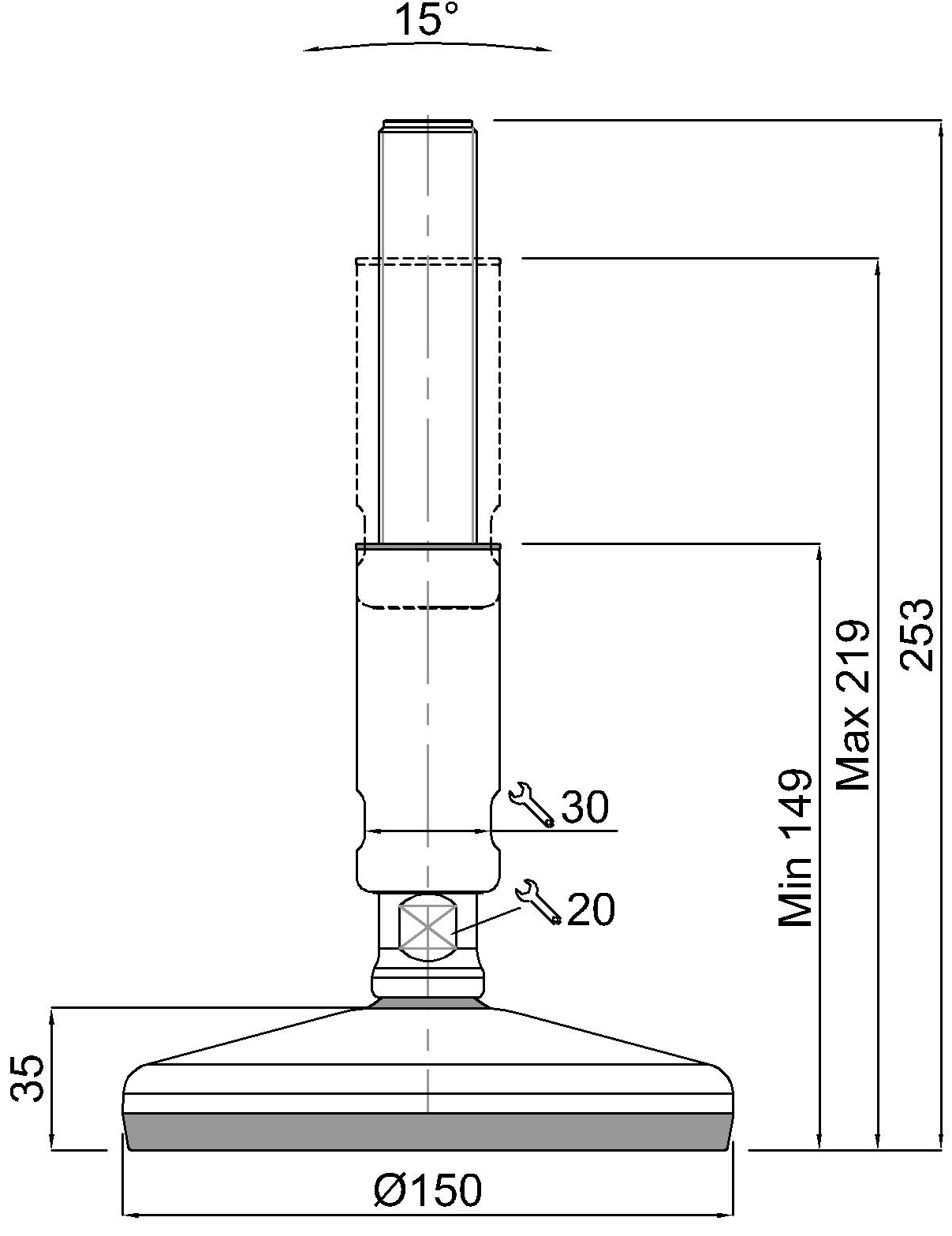

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
