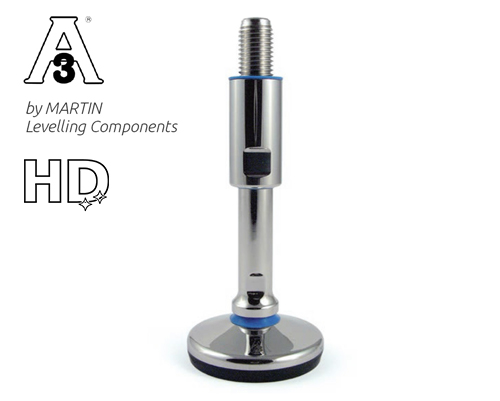

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M24 x 140 mm, NBR
Enhance your equipment stability with the TEKNO-HYGIENIC 3-A leveling foot. Made from stainless steel, it ensures hygiene and withstands static loads of up to 20,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€44.64*
|
| From 13 |
€43.67*
|
| From 41 |
€43.03*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

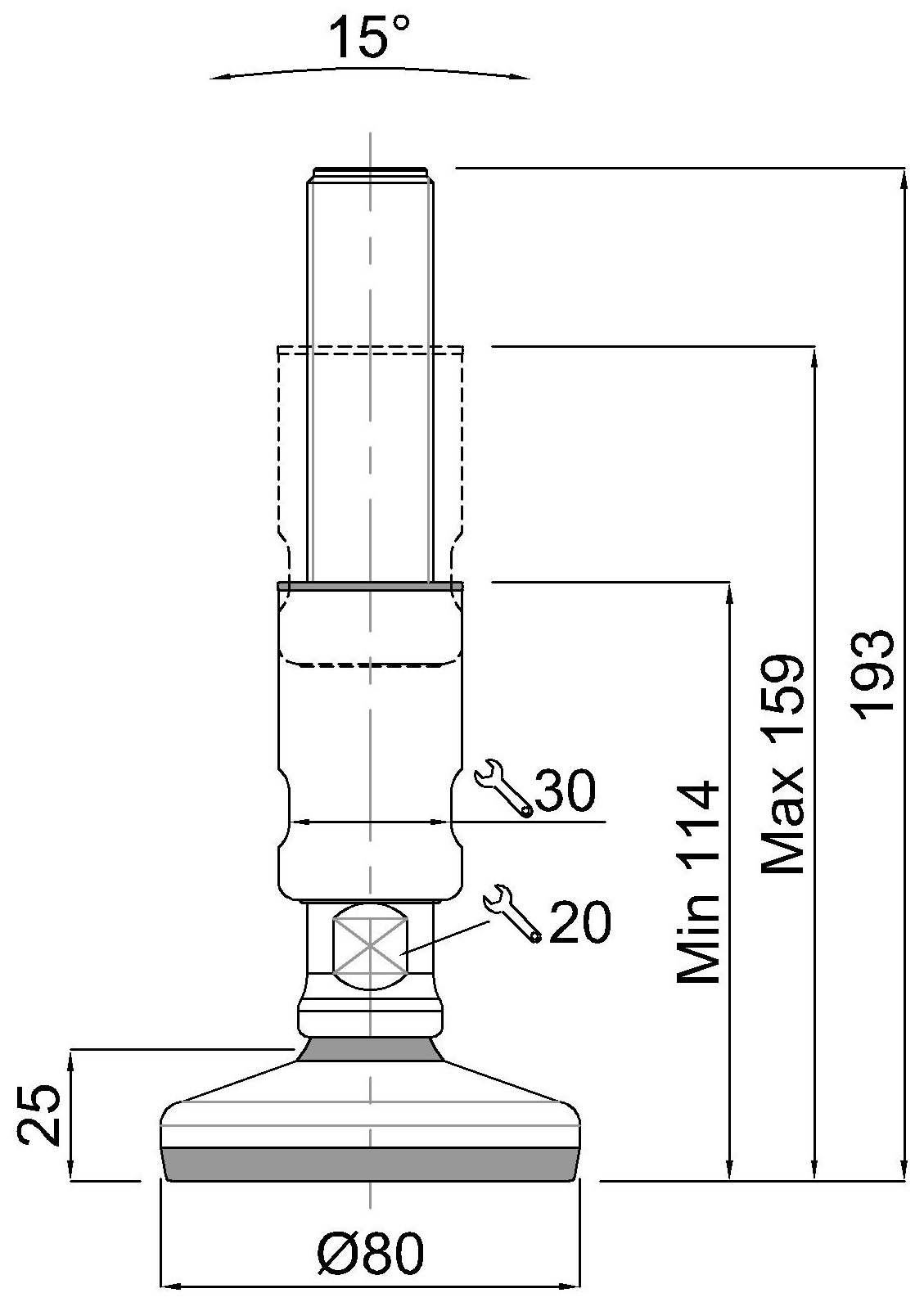

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
