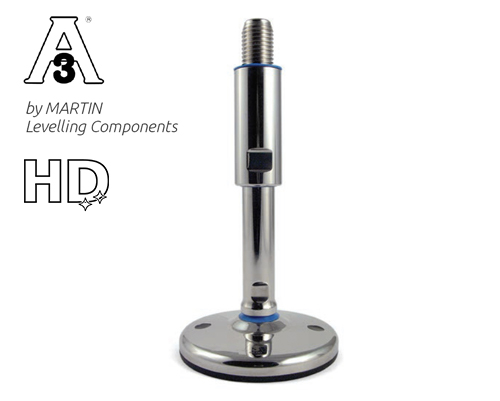

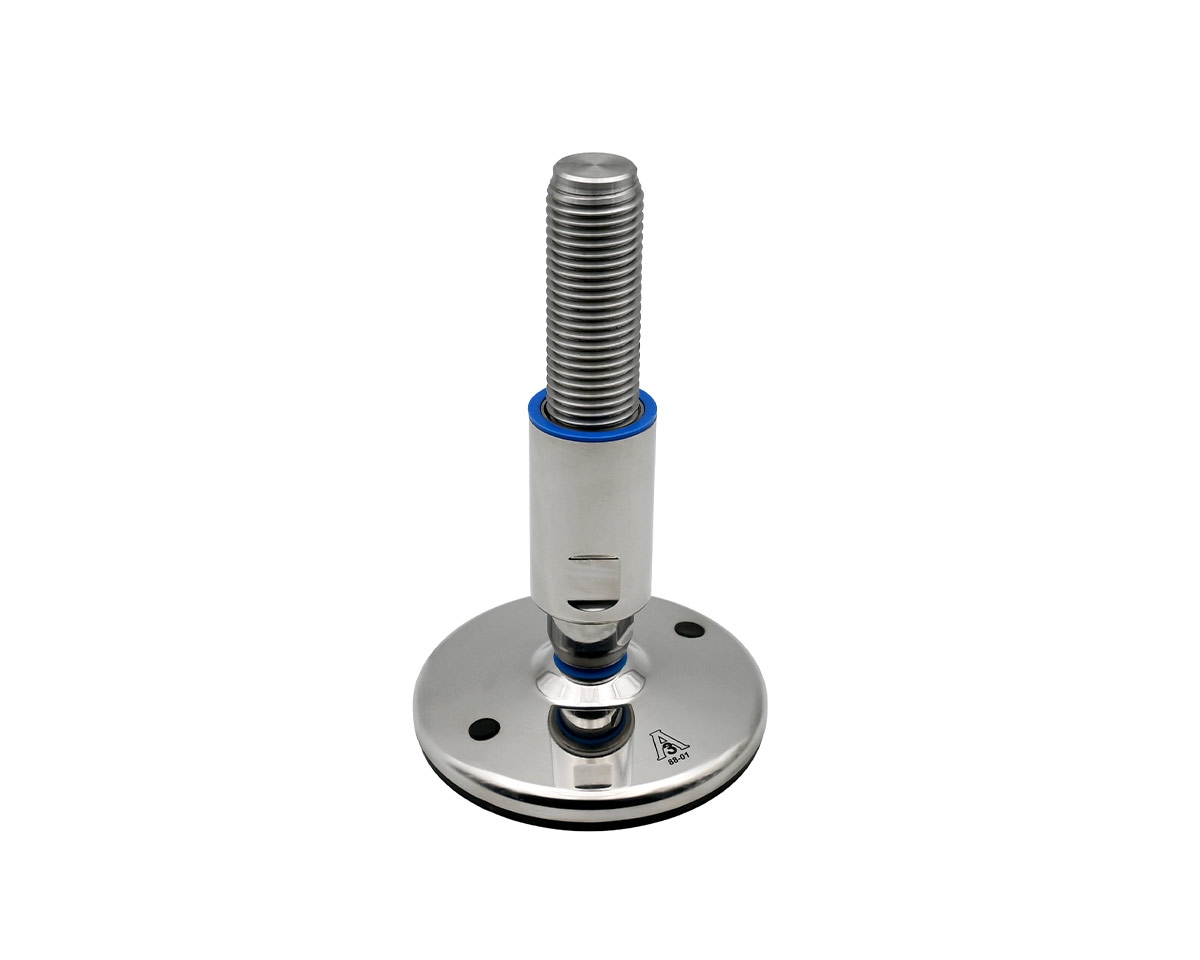

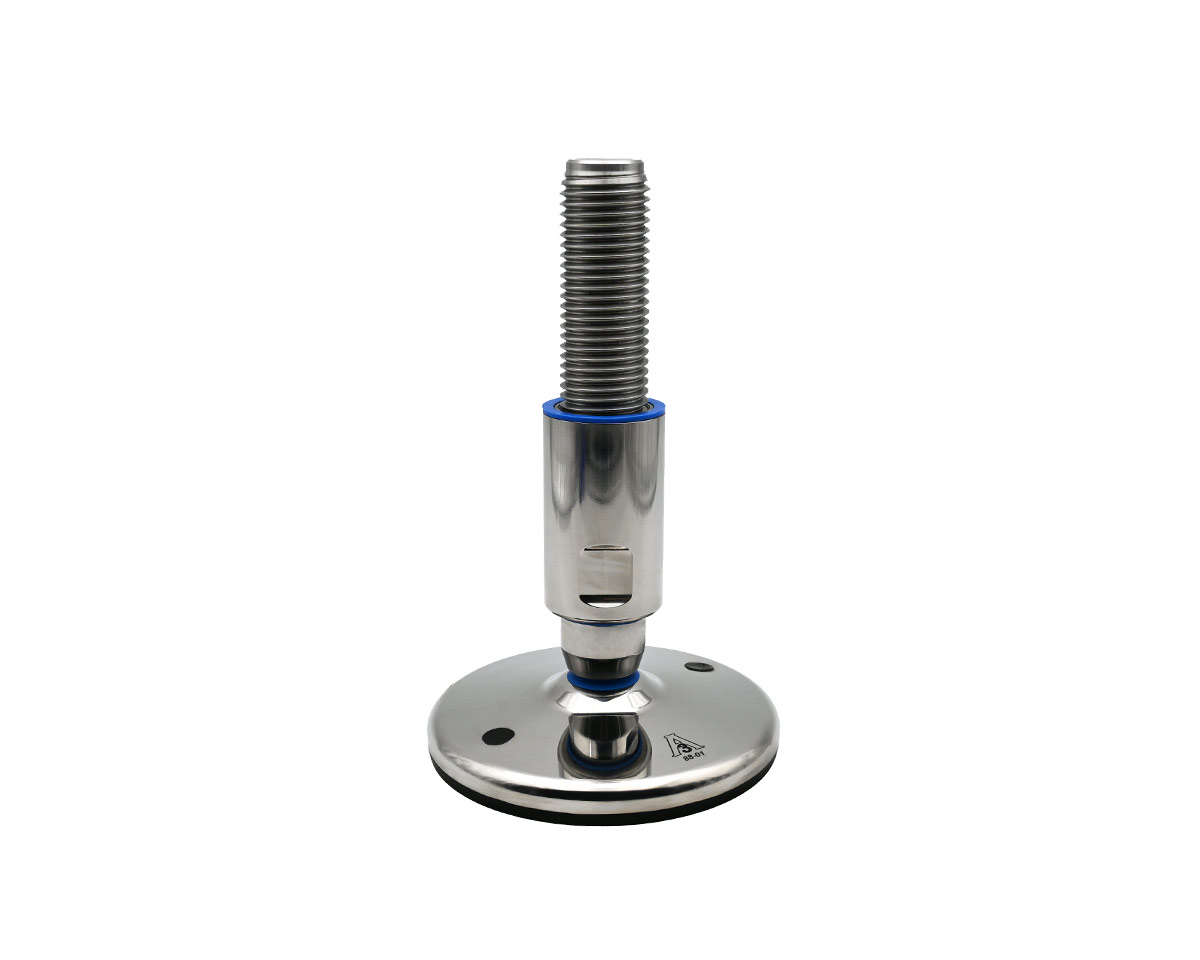

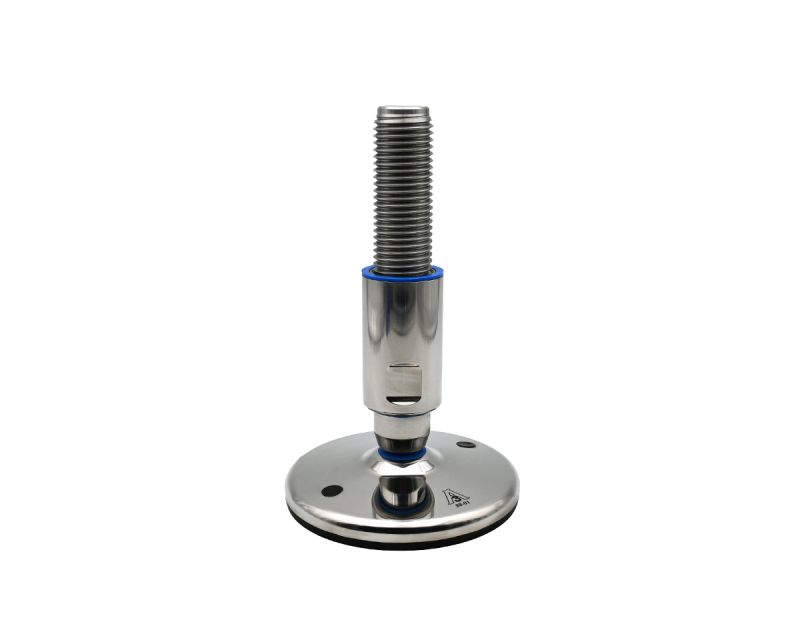

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M20 x 140 mm, Drills, NBR

EAN 4061408110100

Type 45827411F/3A

Enhance your equipment's stability with the TEKNO-HYGIENIC 3-A leveling foot. Crafted from stainless steel, it offers a 15° articulated screw, exceptional load capacity, and unmatched hygiene compliance.

Constructed from durable stainless steel, ensuring long-lasting performance and resistance to corrosion.
Features a 3-A Sanitary Standard certification, making it ideal for hygienically sensitive environments.
Articulated screw design allows for a 15° adjustment angle, providing enhanced flexibility for uneven surfaces.
Capable of supporting a static load of up to 45,000 N, ensuring robust stability and reliability.
Equipped with black NBR anti-slip pads for improved grip and safety during operation.

Quantity	Price
From 1	€100.37*
From 13	€98.19*
From 41	€96.73*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€100.37* / piece

Our payment methods:

Accessories

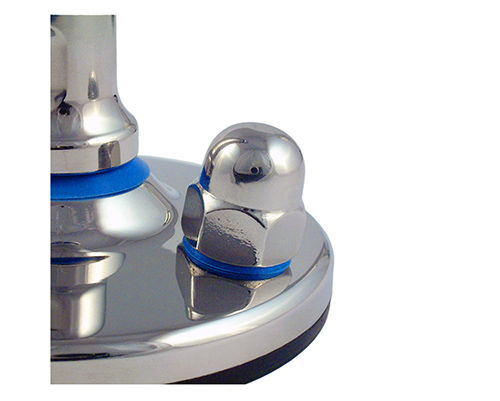

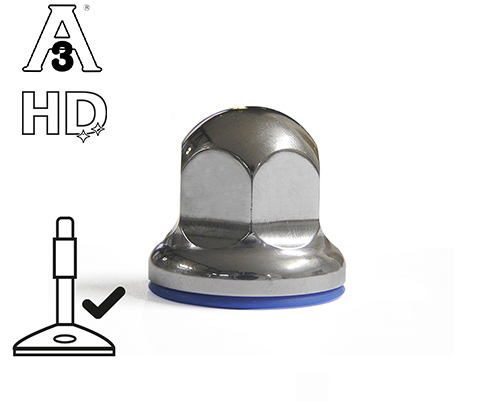

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	131-230
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

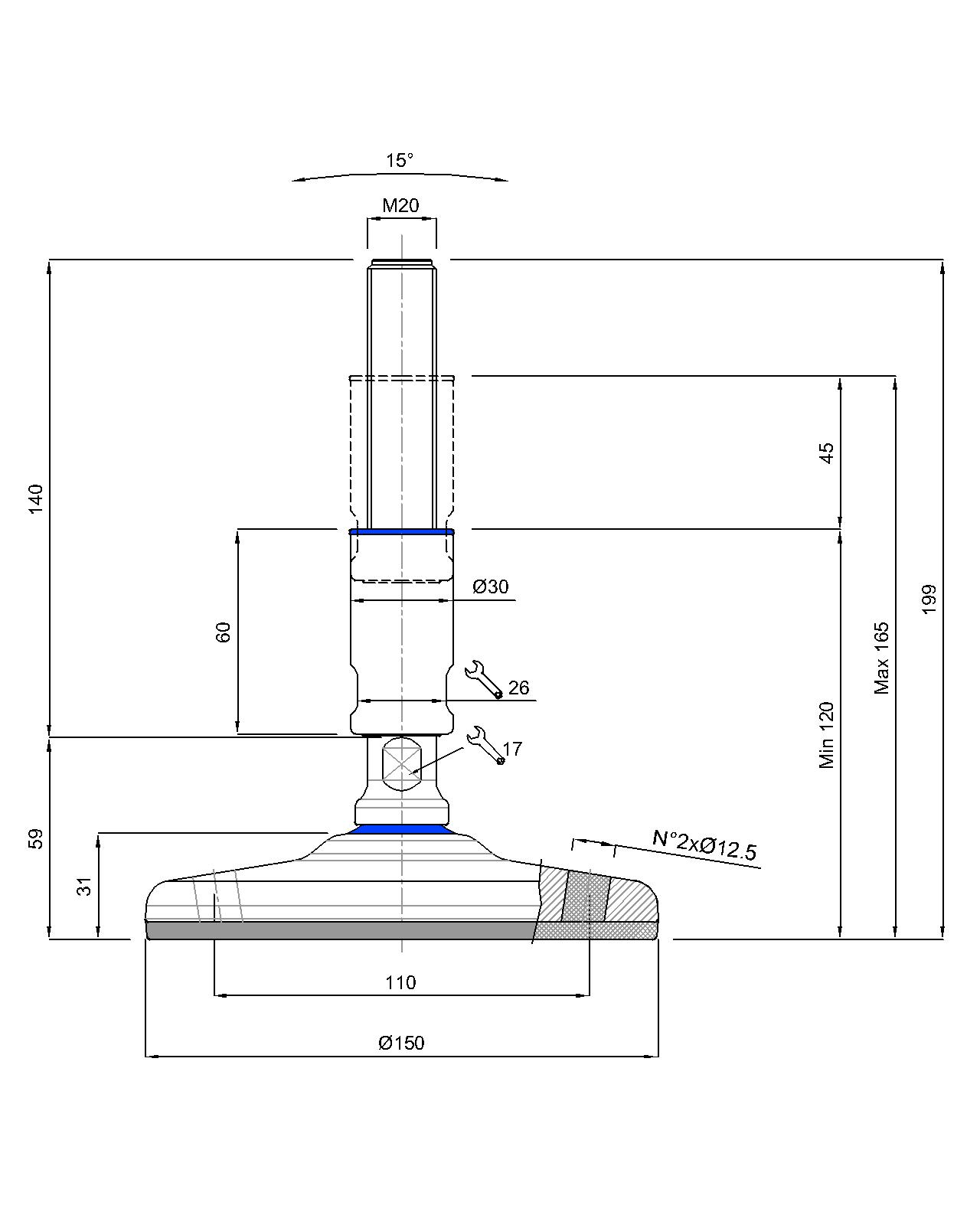

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 198 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
