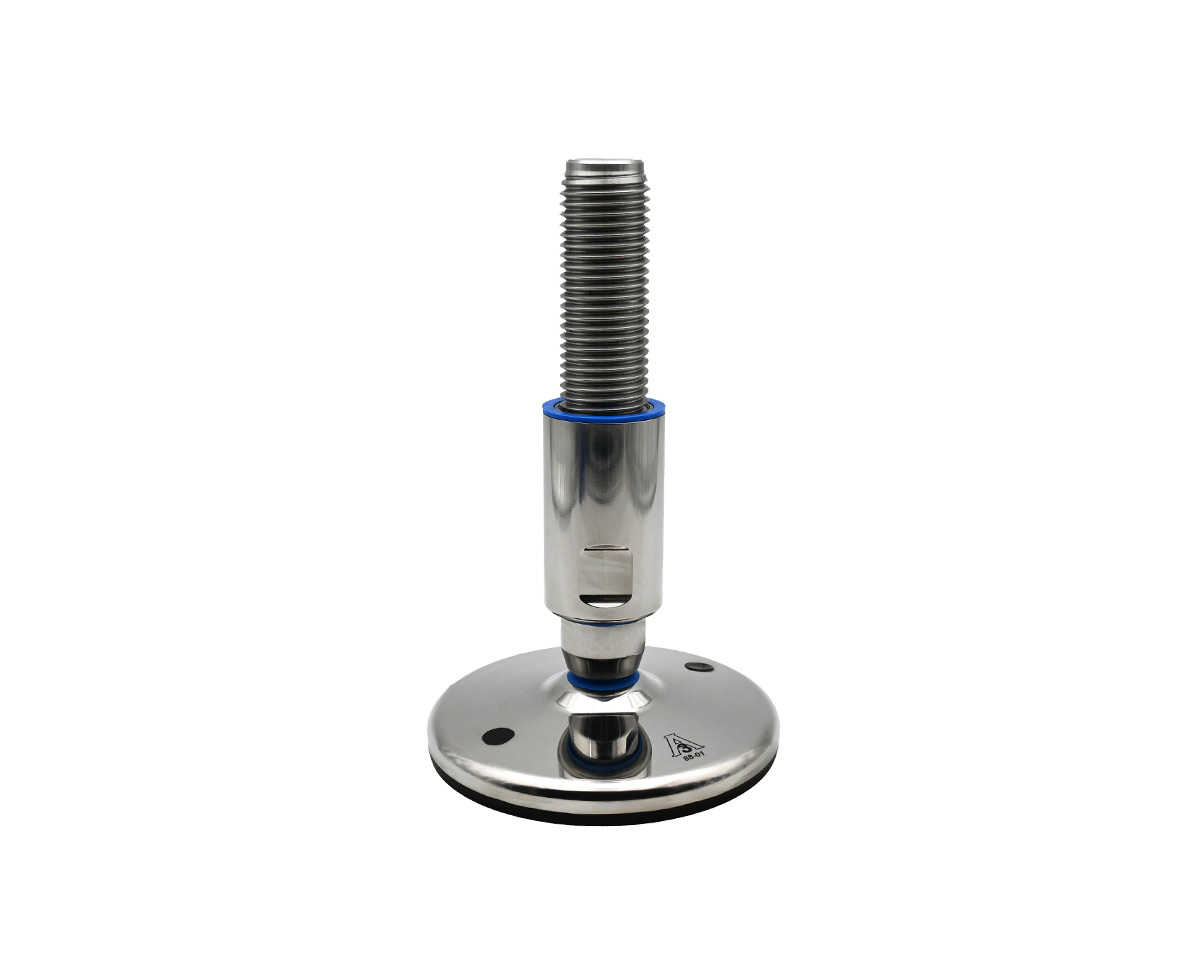

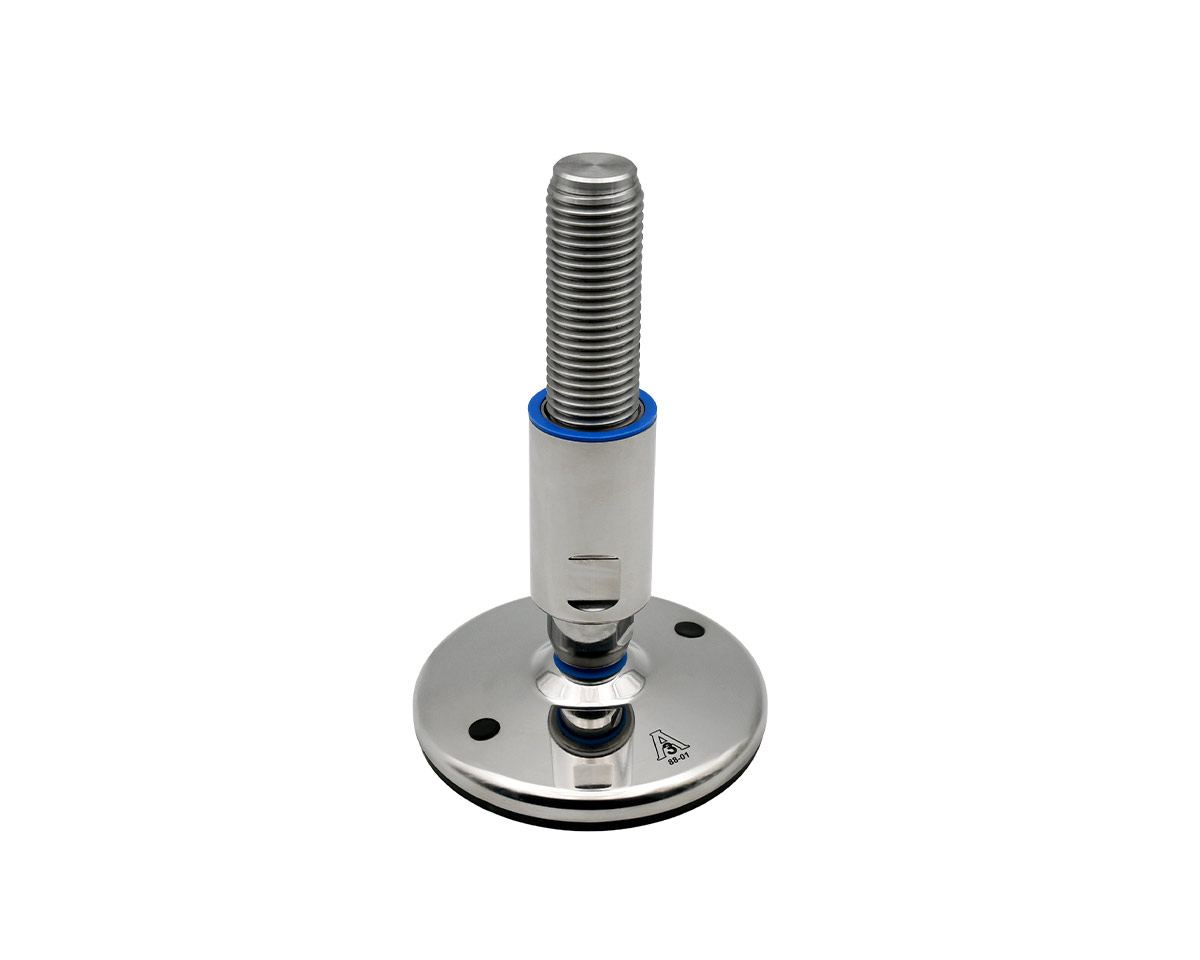

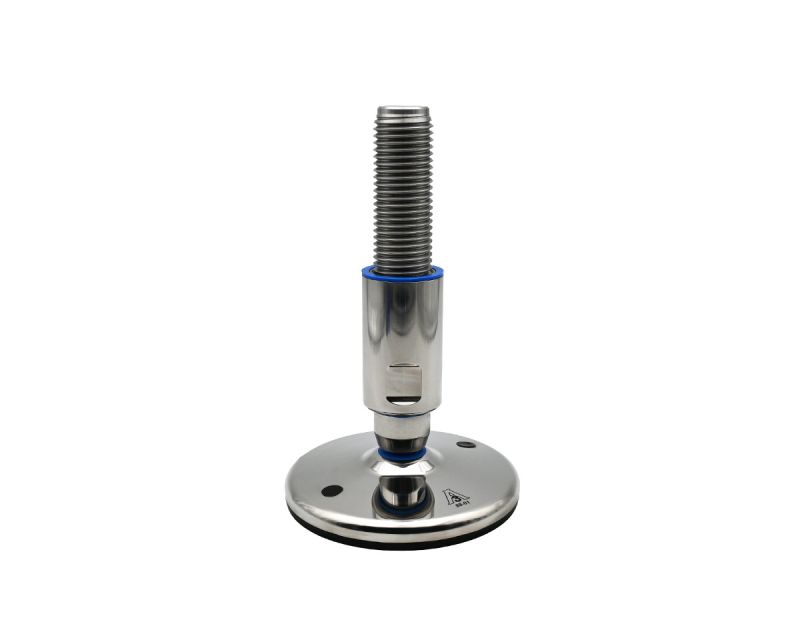

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M16 x 140 mm, Drills, NBR

EAN 4061408110087

Type 45827381F/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot, featuring a 120 mm stainless steel base and M16 spindle for unparalleled stability and hygiene compliance. Static load capacity of 40,000 N.

Constructed from high-grade stainless steel, ensuring exceptional durability and corrosion resistance.
Hygienically certified to meet the 3-A Sanitary Standard, making it ideal for use in sanitary environments.
Features an articulated screw with a 15° adjustment angle, providing enhanced stability on uneven surfaces.
Capable of supporting static loads up to 40,000 N, ensuring reliability in heavy-duty applications.
Includes two bore holes for secure mounting and an anti-slip NBR pad for improved traction and safety.

Quantity	Price
From 1	€80.52*
From 13	€78.77*
From 41	€77.61*

*Prices excl. VAT plus shipping costs

1 on stock, Refill time: 5 days

€80.52* / piece

Our payment methods:

Accessories

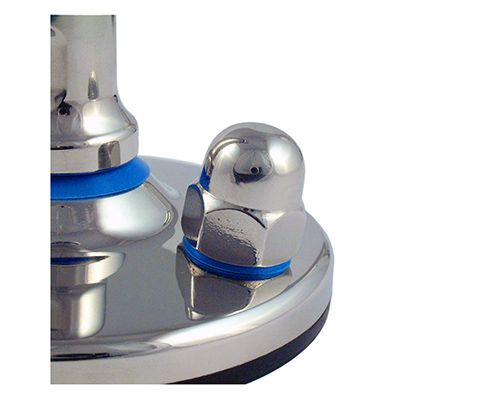

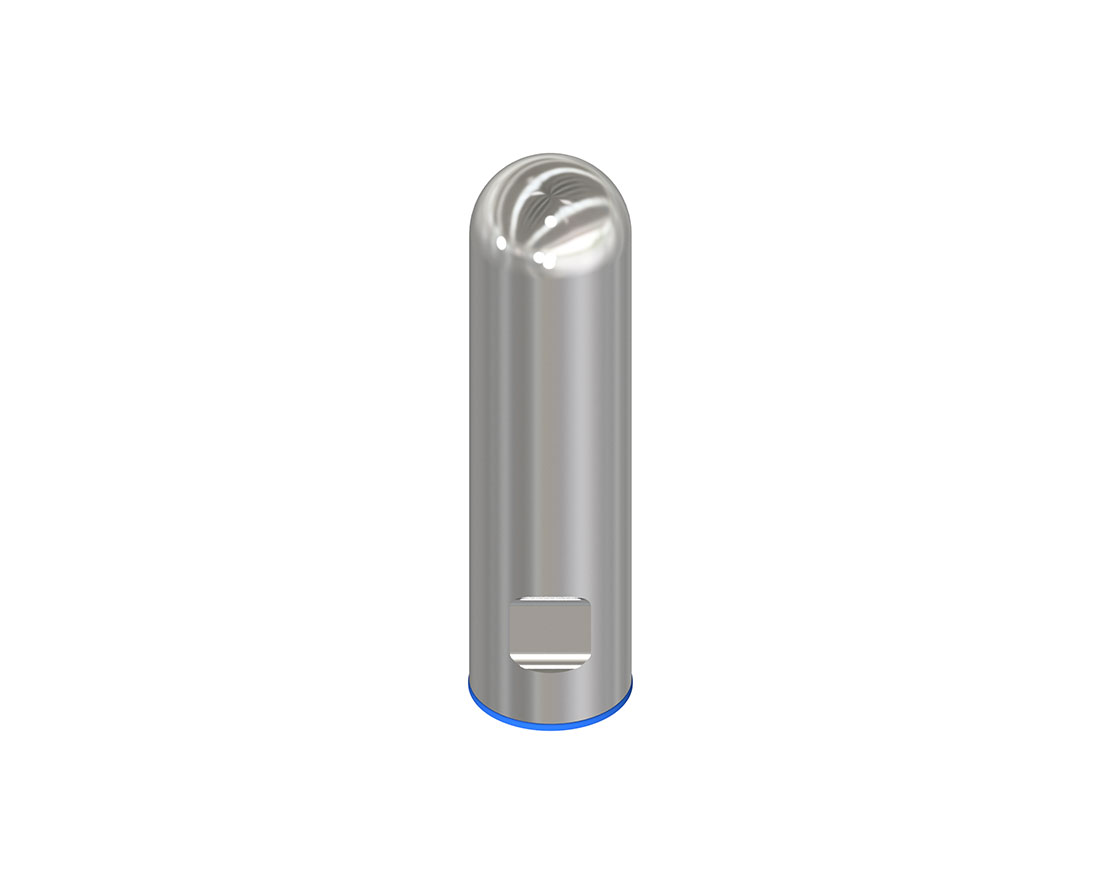

Hygienic 3-A thread cover with blue silicone gasket, M16, polished

Type No.: 458BO-M16L/3A

€16.86*

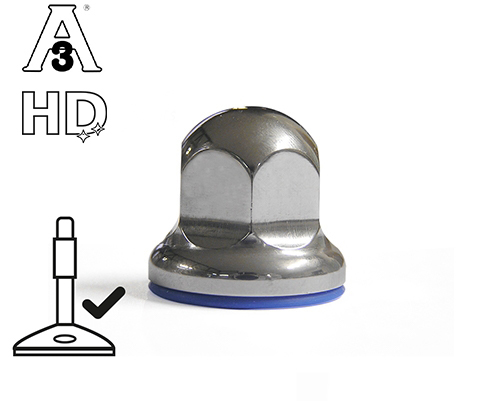

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

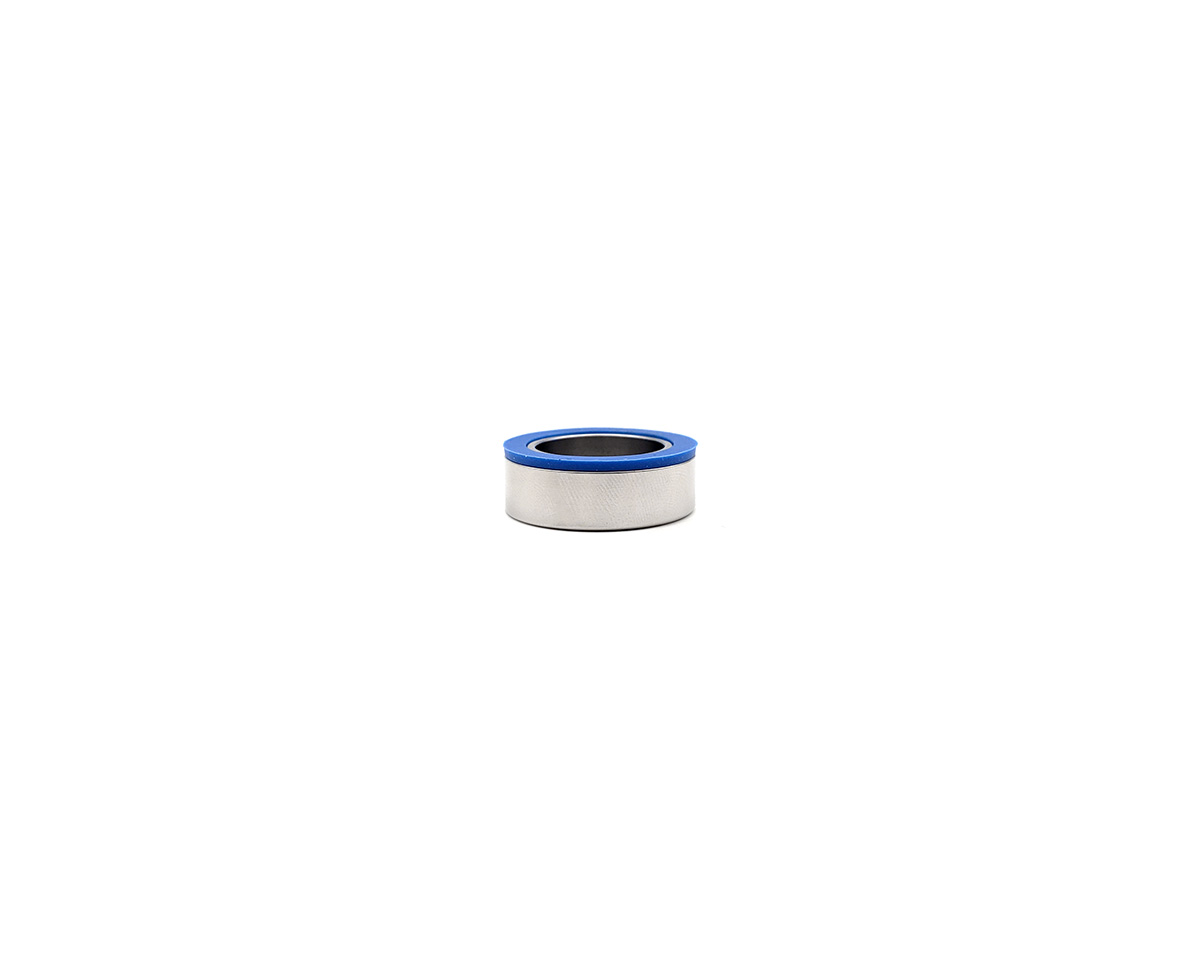

Spacer nut 16 mm 3A

Type No.: 458PROL2410/F16/3A

From €5.94*

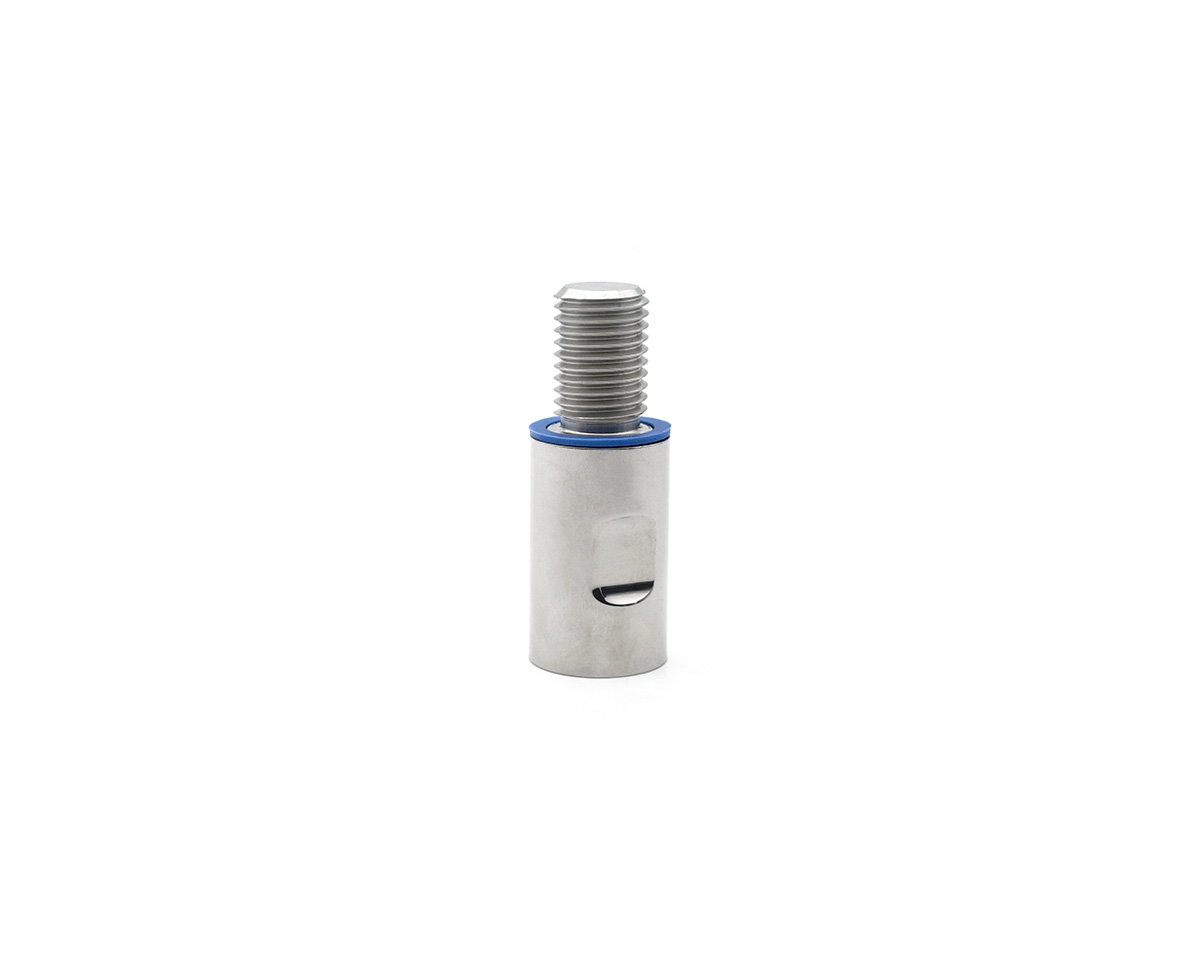

Spacer nut M16 x 40 3A

Type No.: 458PROL2450/3A

From €23.10*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

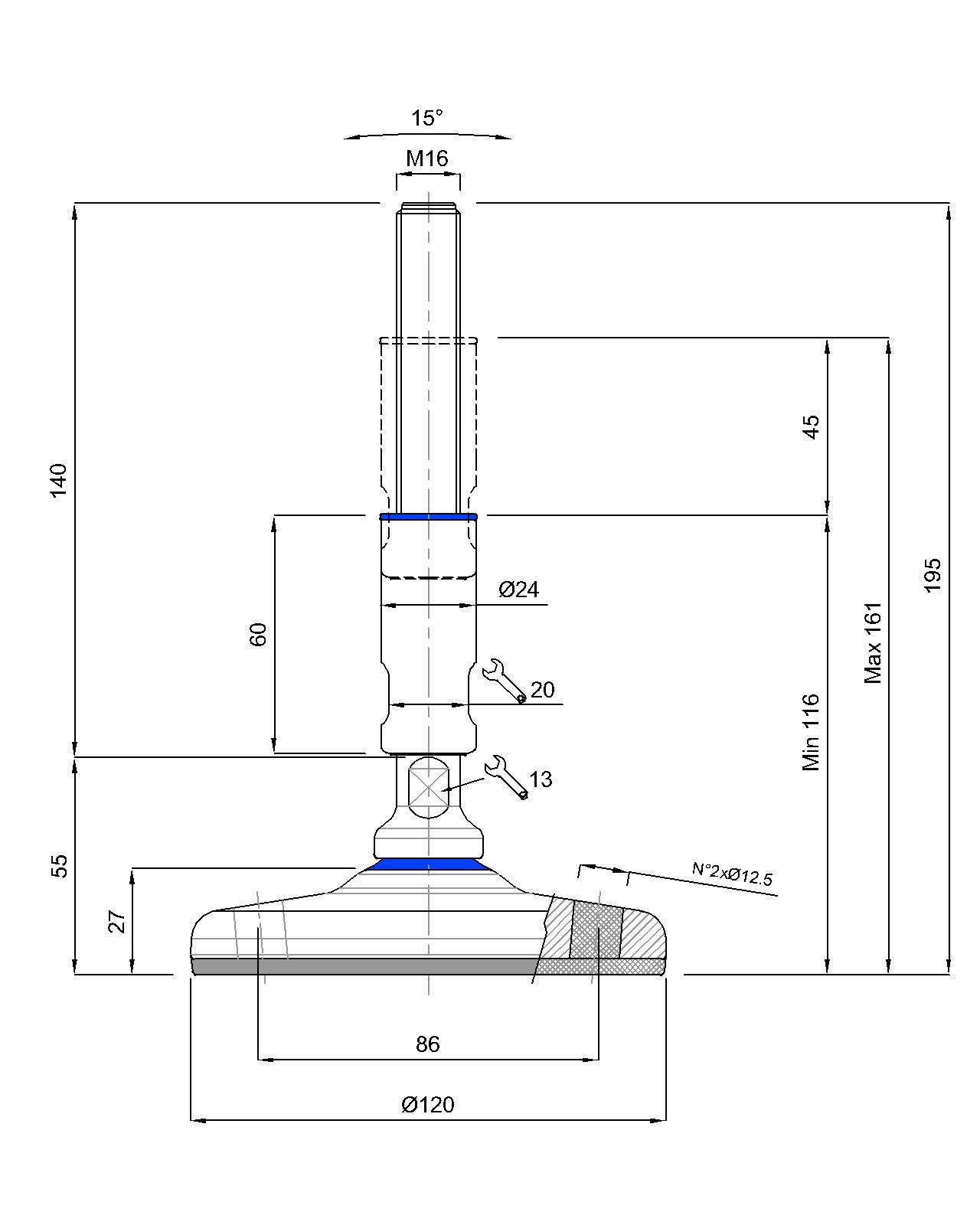

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 195 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 40.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
