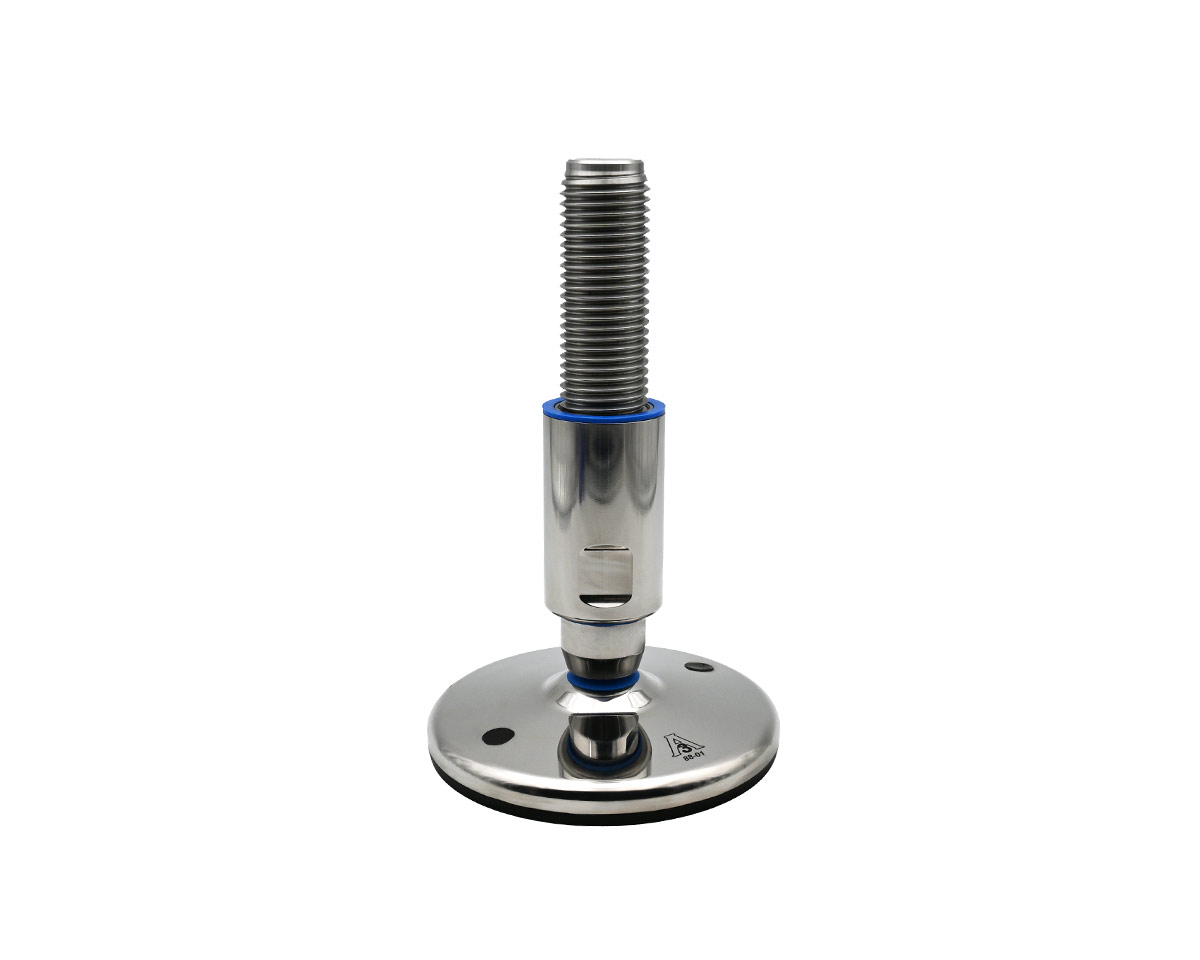

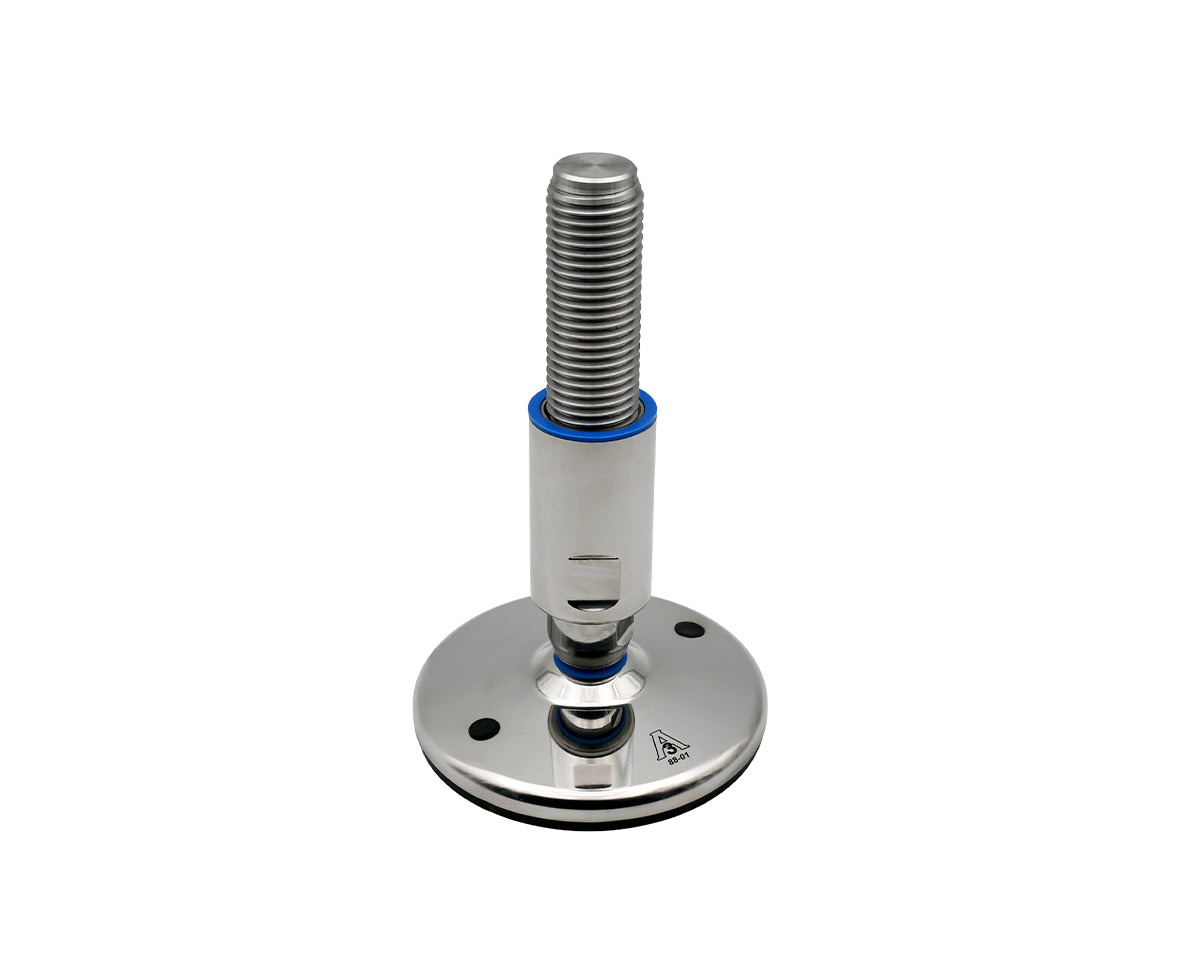

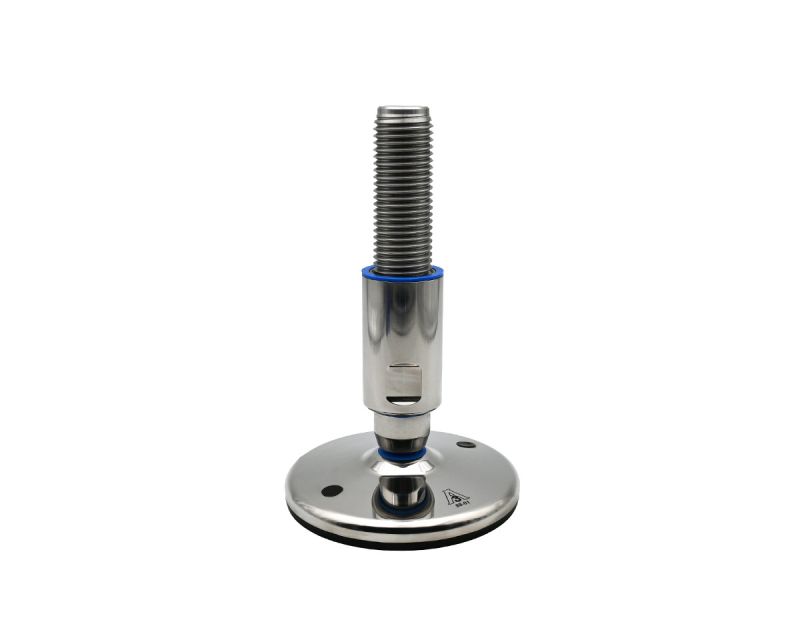

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 140 mm, Drills, NBR

4061408110070
45827361F/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot, featuring a robust stainless steel design and a 15° adjustable angle, certified for hygiene standards. Optimal for various industrial applications with a static load capacity of 40,000 N.

  • Constructed from high-quality stainless steel for enhanced durability and corrosion resistance.
  • Features a 15° articulated screw design allowing for precise leveling in uneven surfaces.
  • Equipped with an adjustable height range of 45 mm to accommodate various installation needs.
  • Certified to 3-A Sanitary Standards, ensuring suitability for hygienic environments.
  • Designed with non-slip NBR rubber to provide stability and support for static loads up to 40,000 N.
Quantity Price
From 1
€71.99*
From 13
€70.43*
From 41
€69.39*

Currently sold out, Refill time: 5 days

€71.99* / piece
Our payment methods:

Accessories

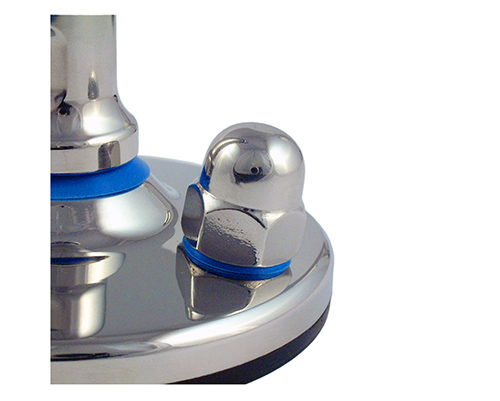

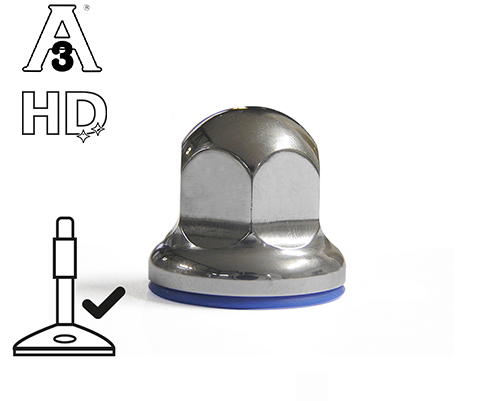

Hygienic 3-A nut M12 with blue silicone gasket
Type No.: 458DDM12I/3A

€7.24*

Product properties


Footplate material: Stainless steel
Anti-slip: NBR black
Ø range base plate (mm): 91-110
Ground fastening: 2 mounting holes
Vibration damping: No
Material spindle: Stainless steel
Ø spindle (mm): 16
Spindle length (mm): 140
Balancing angle: 15°
Hygiene: Yes
Hygiene certification: 3-A Sanitary Standard

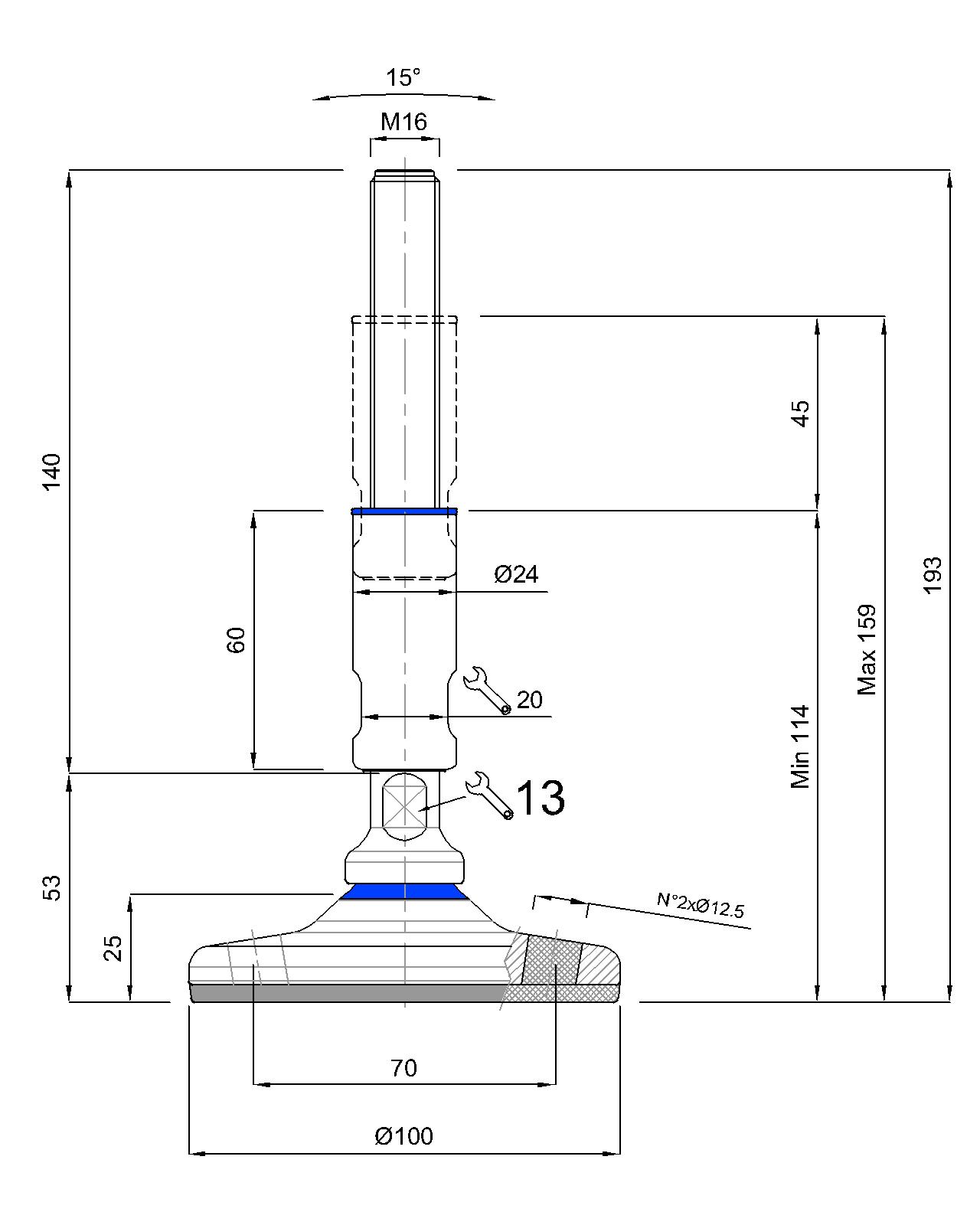

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 193 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 40.000 N
