Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M20 x 140 mm, Drills

EAN 4061408110056

Type 45827410F/3A

Introducing the TEKNO-HYGIENIC 3-A leveling foot: Crafted from stainless steel with a diameter of 150 mm, it offers exceptional stability, a static load capacity of 45,000 N, and hygiene compliance for demanding environments.

Constructed from high-quality stainless steel, ensuring durability and resistance to corrosion in demanding environments.
Features a 15° articulated screw for enhanced stability and precise leveling adjustments within a range of 45 mm.
Large 150 mm foot diameter provides superior load distribution, supporting a static load capacity of up to 45,000 N.
Designed with two bore holes (Ø 12.5 mm) for secure floor mounting, facilitating consistent alignment.
Complies with 3-A Sanitary Standards, ideal for use in hygiene-sensitive applications in industries like food processing and pharmaceuticals.

Quantity	Price
From 1	€96.97*
From 13	€94.86*
From 41	€93.46*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€96.97* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	No
Ø range base plate (mm):	131-230
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

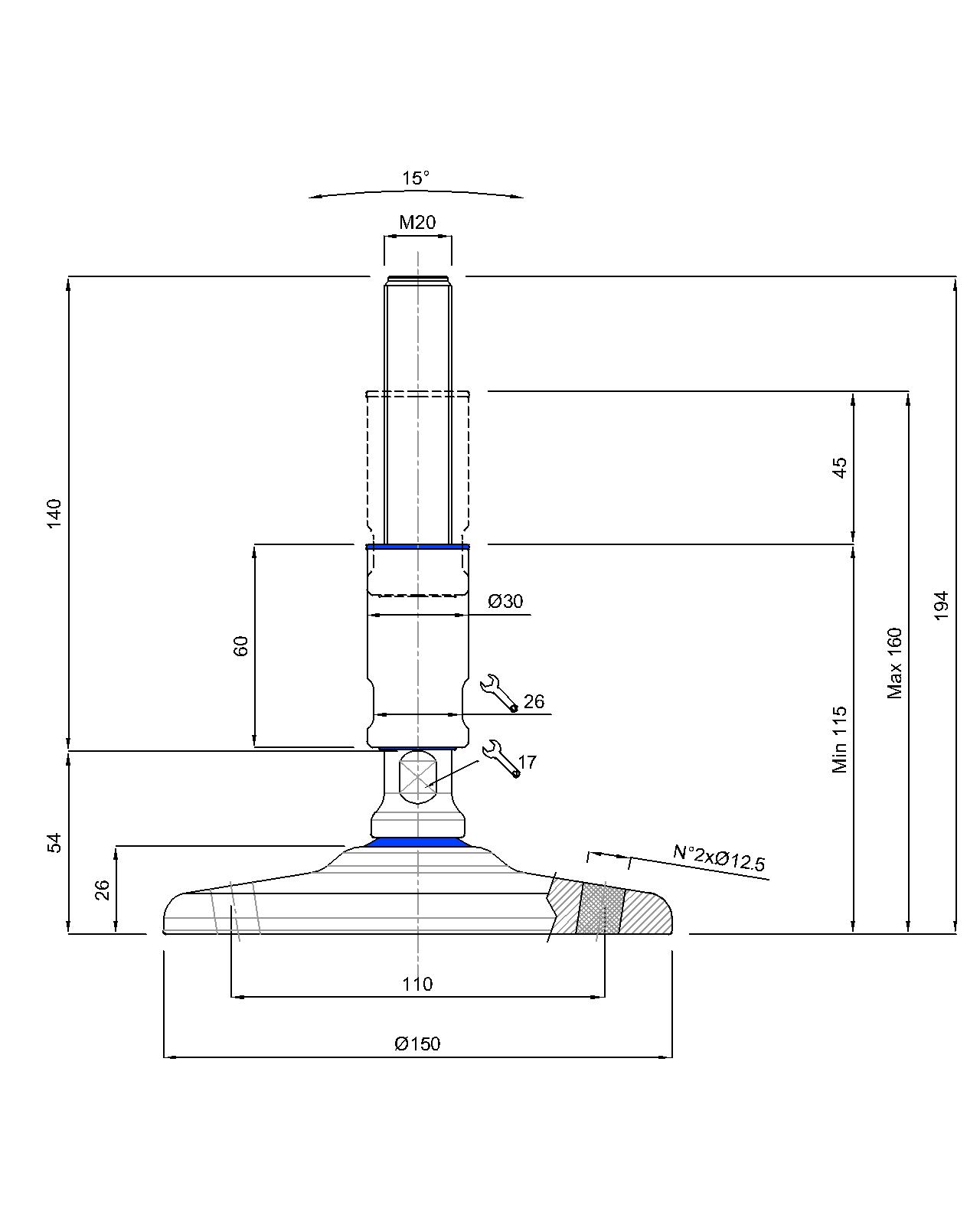

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 194 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
