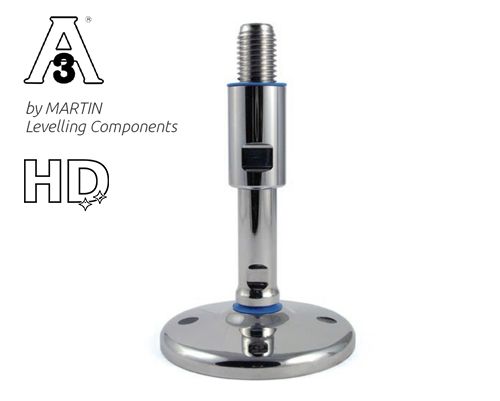

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M16 x 140 mm, Drills

EAN 4061408110032

Type 45827380F/3A

Optimize your installations with the TEKNO-HYGIENIC 3-A leveling foot. Featuring a durable stainless steel construction, articulated adjustability, and 3-A certification, it ensures stability and hygiene for demanding environments.

Made of high-quality stainless steel, ensuring corrosion resistance and longevity in demanding environments.
Hygienically certified to 3-A Sanitary Standards, making it ideal for applications requiring strict hygiene compliance.
Adjustable height range of 45 mm with an articulated screw allowing for a 15° tilt for optimal leveling.
Designed for static loads up to 40,000 N, providing robust support for heavy equipment and machinery.
Easy installation with 2 bore holes (Ø 12.5 mm) for secure floor mounting, handling various floor conditions effectively.

Quantity	Price
From 1	€76.26*
From 13	€74.60*
From 41	€73.50*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€76.26* / piece

Our payment methods:

Accessories

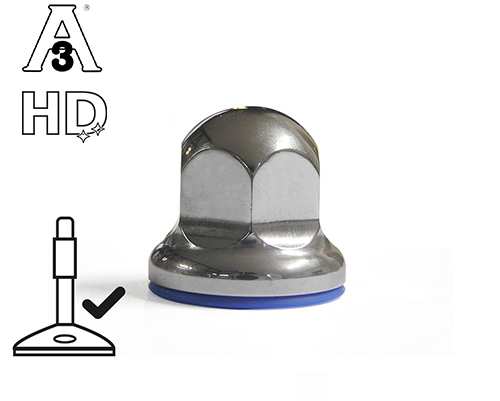

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

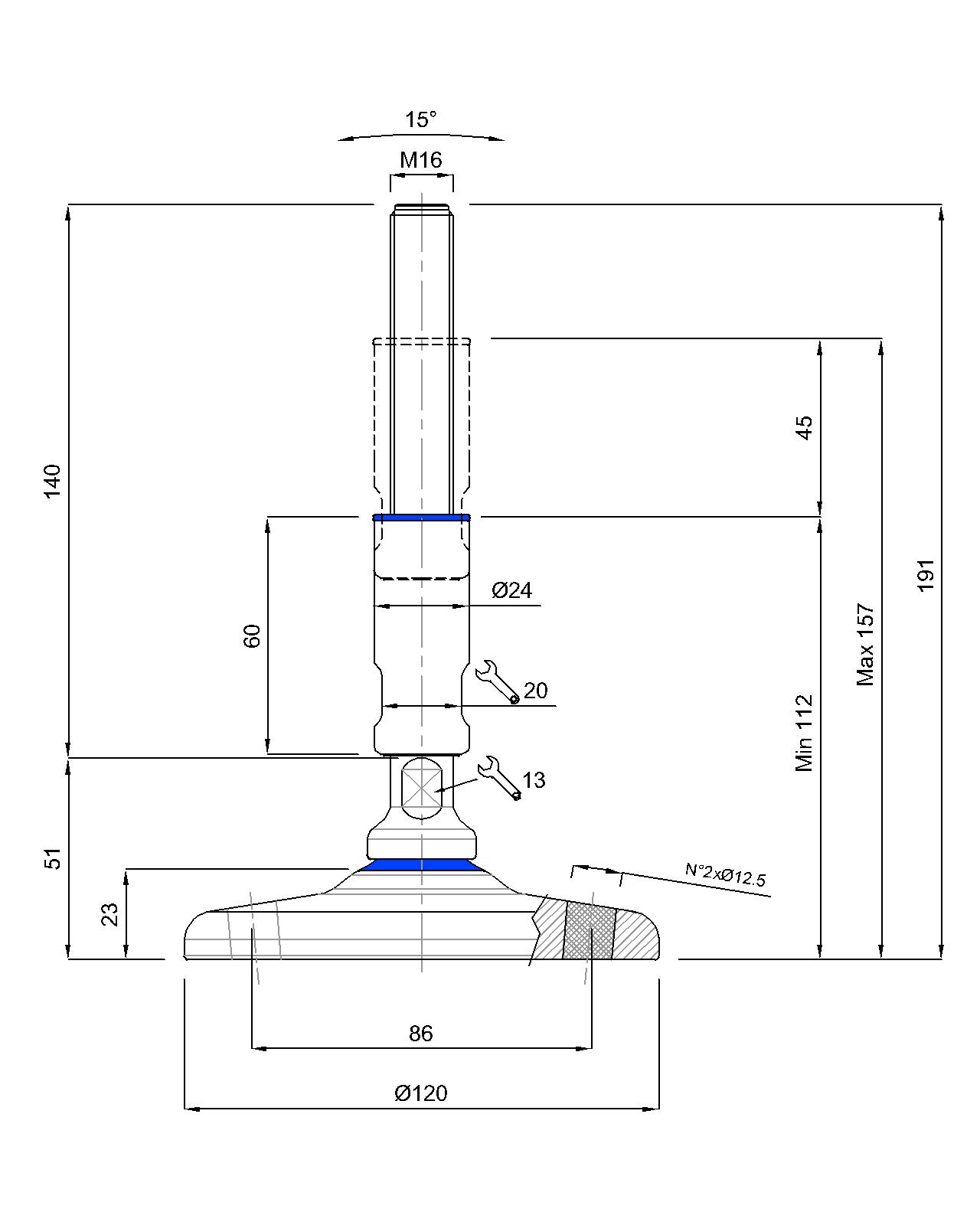

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 191 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Static load 40.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
