Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 140 mm, Drills

EAN 4061408110025

Type 45827360F/3A

Introducing the TEKNO-HYGIENIC 3-A leveling foot: engineered from stainless steel with a 100 mm diameter and 140 mm spindle length, boasting a 15° adjustment angle, 45 mm height range, and a robust static load capacity of 40,000 N. Ideal for hygiene-sensitive industries.

Constructed from high-quality stainless steel for enhanced durability and corrosion resistance
Features a total height of 189 mm with an articulated screw adjustment capability of 15°
Static load capacity of up to 40,000 N, ensuring reliable performance under heavy loads
Adjustable height range of 45 mm, providing flexibility for various applications
Complies with 3-A Sanitary Standards, making it ideal for hygienic environments

Quantity	Price
From 1	€70.31*
From 13	€68.78*
From 41	€67.76*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€70.31* / piece

Our payment methods:

Accessories

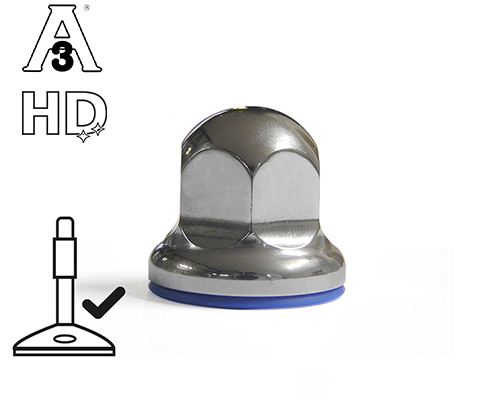

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	No
Ø range base plate (mm):	91-110
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 189 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Static load 40.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
