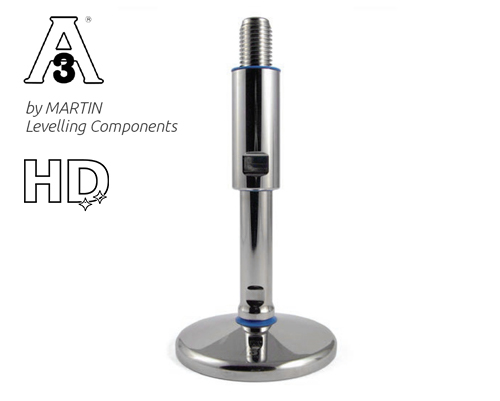

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M20 x 140 mm

4061408110018
45827410/3A

Optimize your applications with the TEKNO-HYGIENIC 3-A leveling foot. Crafted from stainless steel, it offers robust support, a 45,000 N static load capacity, and precise adjustment for hygiene-critical environments.

  • Constructed from high-quality stainless steel, ensuring superior durability and resistance to corrosion.
  • Features a total height of 194 mm with a robust adjustment range of 45 mm, allowing for precise leveling in various applications.
  • Designed with an articulated screw mechanism that accommodates an adjustment angle of 15°, providing optimal flexibility during installation.
  • Certified to 3-A Sanitary Standard, ensuring compliance with stringent hygiene regulations for use in sanitary environments.
  • Capable of supporting static loads up to 45,000 N, making it suitable for heavy-duty industrial applications.
Quantity Price
From 1
€82.48*
From 13
€80.69*
From 41
€79.49*

Currently sold out, Refill time: 5 days

€82.48* / piece
Our payment methods:

Product properties


Footplate material: Stainless steel
Anti-slip: No
Ø range base plate (mm): 131-230
Vibration damping: No
Material spindle: Stainless steel
Ø spindle (mm): 20
Spindle length (mm): 140
Balancing angle: 15°
Hygiene: Yes
Hygiene certification: 3-A Sanitary Standard

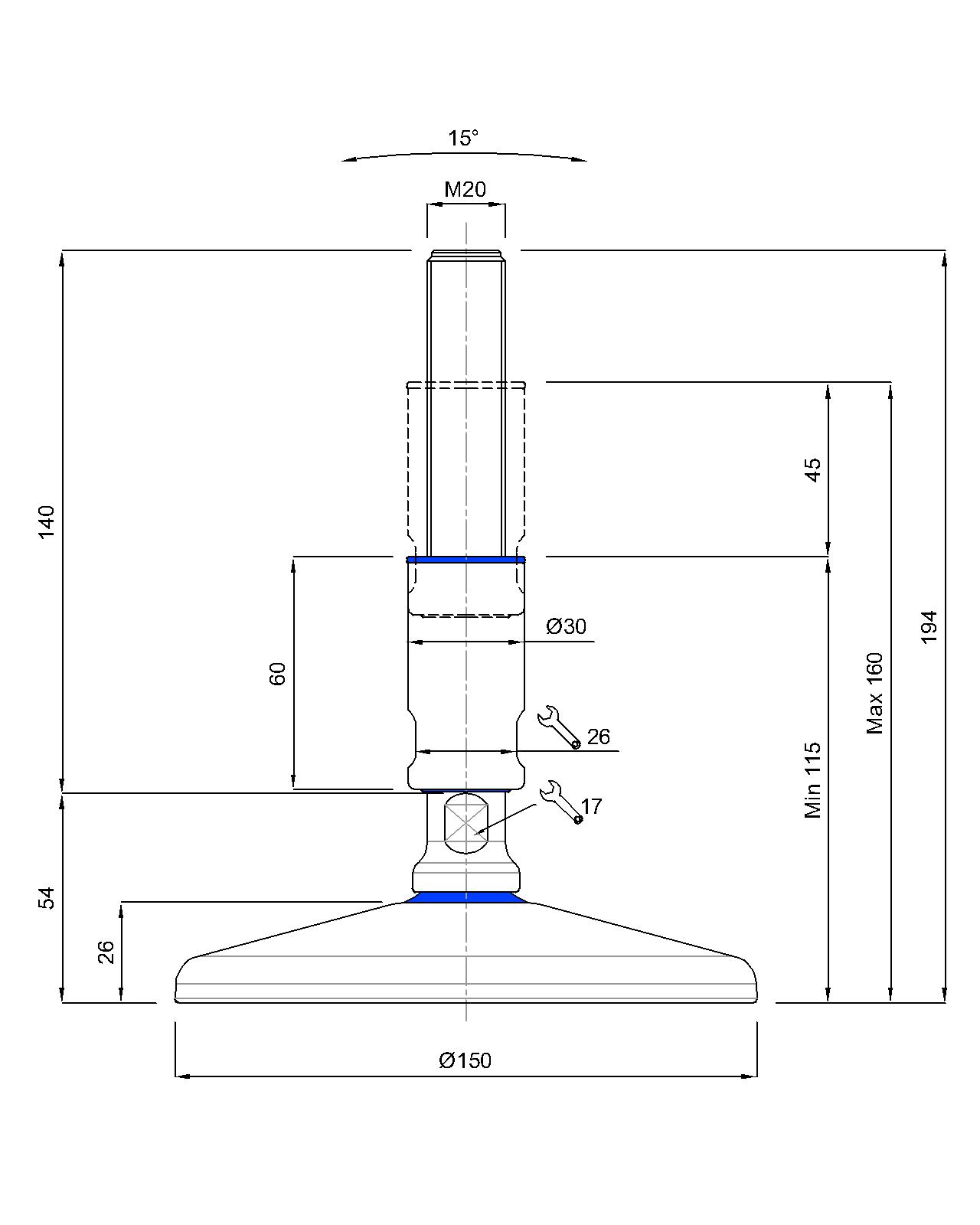

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 194 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Static load 45.000 N
