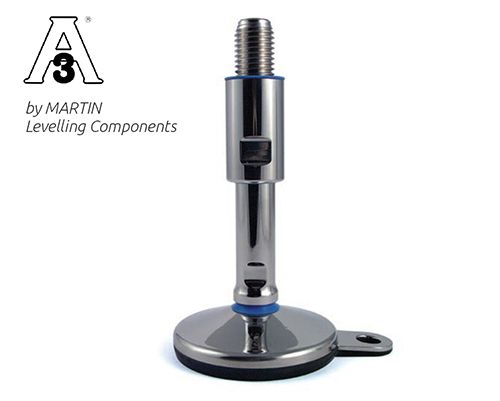

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 140 mm, Lug, NBR

EAN 4061408109999

Type 45827160F/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot, designed for optimal stability and hygiene. With a stainless steel construction, adjustable range, and 25,000 N static load capacity, it’s perfect for demanding industrial applications.

Constructed from high-quality stainless steel, ensuring durability and resistance to corrosion.
Features a robust static load capacity of 25,000 N, suitable for heavy-duty applications.
Adjustable height with a range of 45 mm and an articulated screw allowing for a 15° leveling angle.
Designed with an anti-slip NBR black base for enhanced stability on various surfaces.
Complies with the 3-A Sanitary Standard, making it ideal for hygienic environments in engineering and manufacturing.

Quantity	Price
From 1	€43.39*
From 13	€42.44*
From 41	€41.82*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€43.39* / piece

Our payment methods:

Accessories

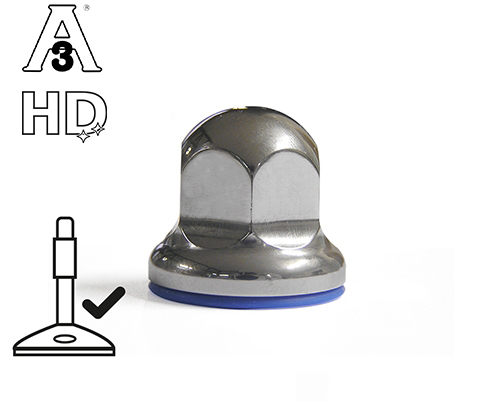

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	91-110
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 196 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip NBR black, Static load 25.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
