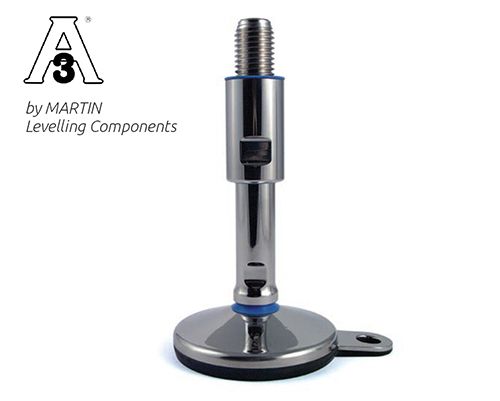

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 140 mm, Lug, NBR

EAN 4061408109982

Type 45827140F/3A

Discover the TEKNO-HYGIENIC 3-A levelling foot, crafted from stainless steel for optimal hygiene. Featuring an adjustable design, it supports static loads up to 20,000 N, ensuring stability in demanding environments.

Made of high-quality stainless steel, ensuring durability and resistance to corrosion in hygienic environments
Features a robust static load capacity of 20,000 N, ideal for demanding industrial applications
Adjustable height range of 45 mm with an articulated screw mechanism allowing 15° tilt, providing excellent leveling solutions
Compliant with 3-A Sanitary Standards, ensuring optimal hygiene and cleanliness for food processing environments
Equipped with a non-slip NBR base for enhanced stability and safety on various surfaces

Quantity	Price
From 1	€40.99*
From 13	€40.10*
From 41	€39.50*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€40.99* / piece

Our payment methods:

Accessories

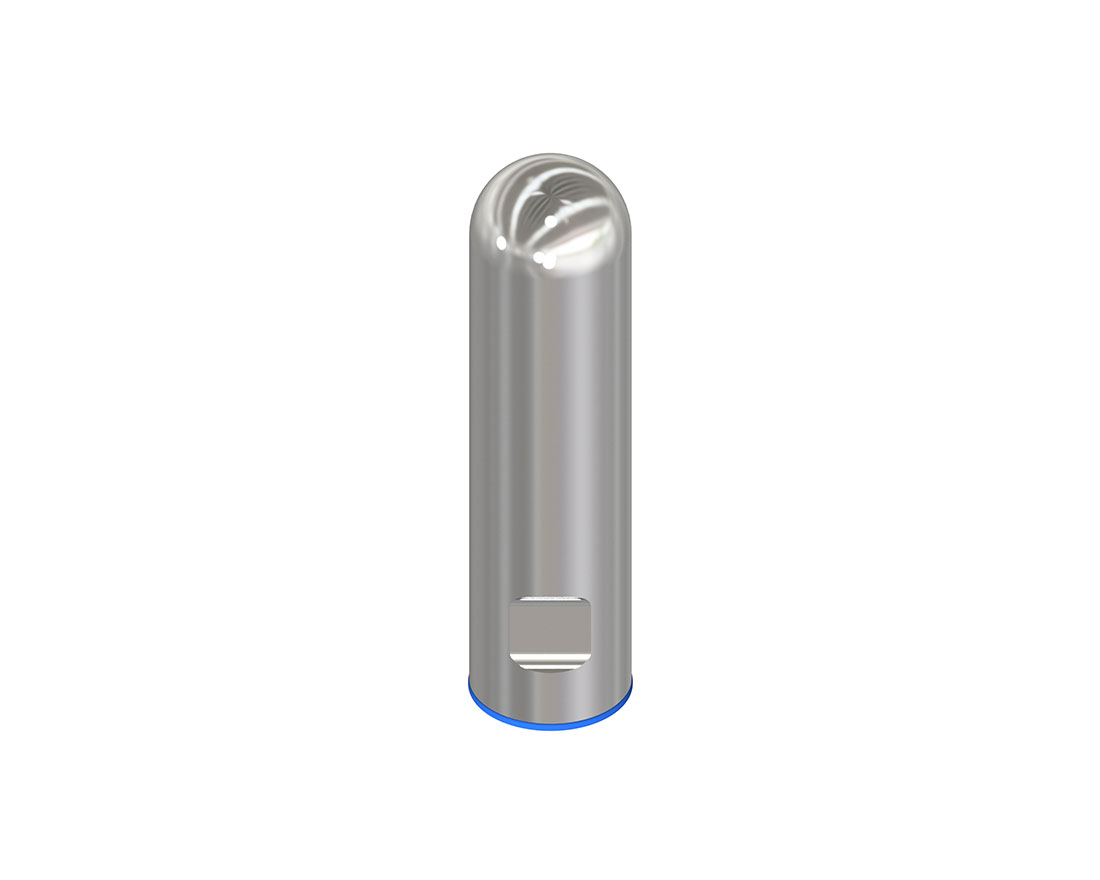

Hygienic 3-A thread cover with blue silicone gasket, M16, polished

Type No.: 458BO-M16L/3A

€16.86*

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

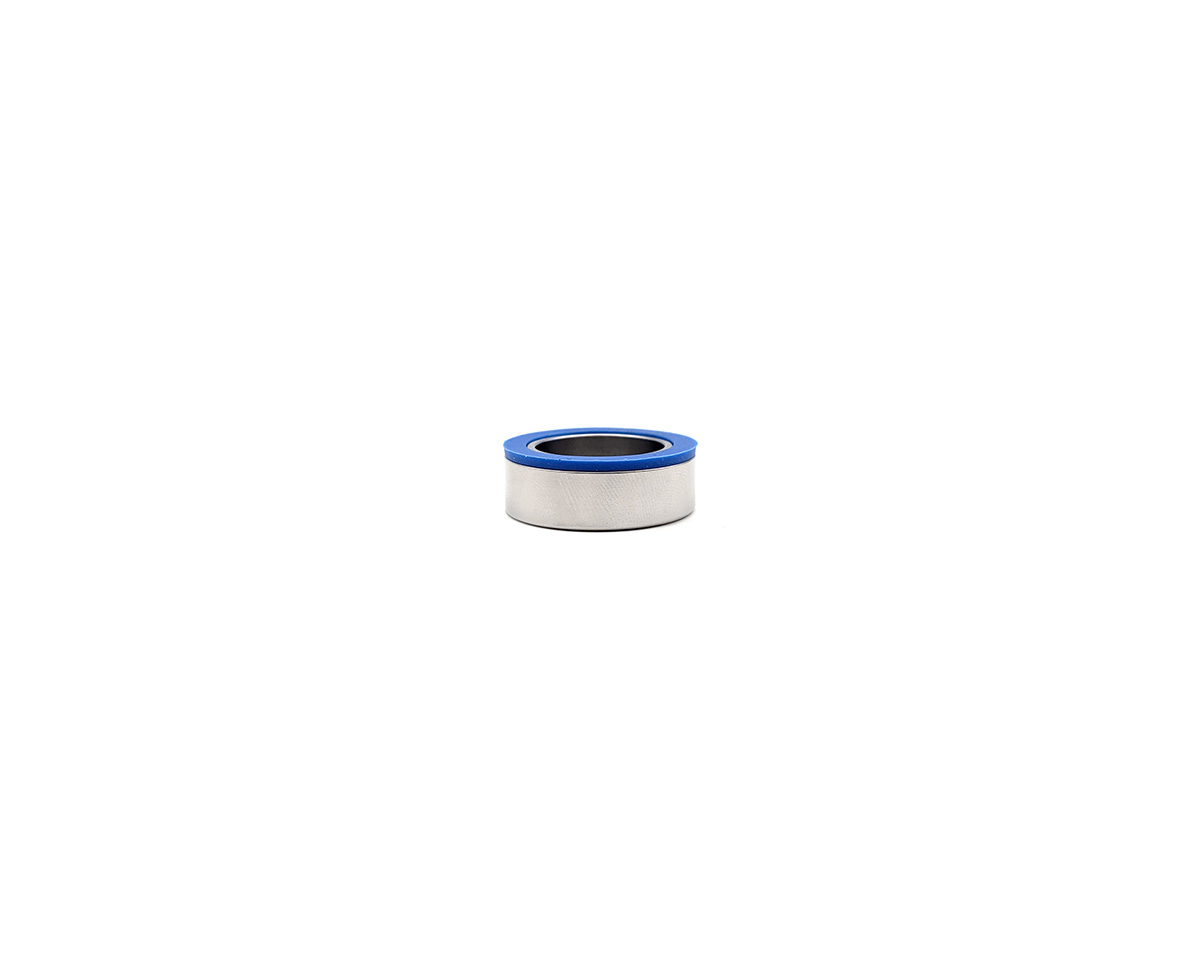

Spacer nut 16 mm 3A

Type No.: 458PROL2410/F16/3A

From €5.94*

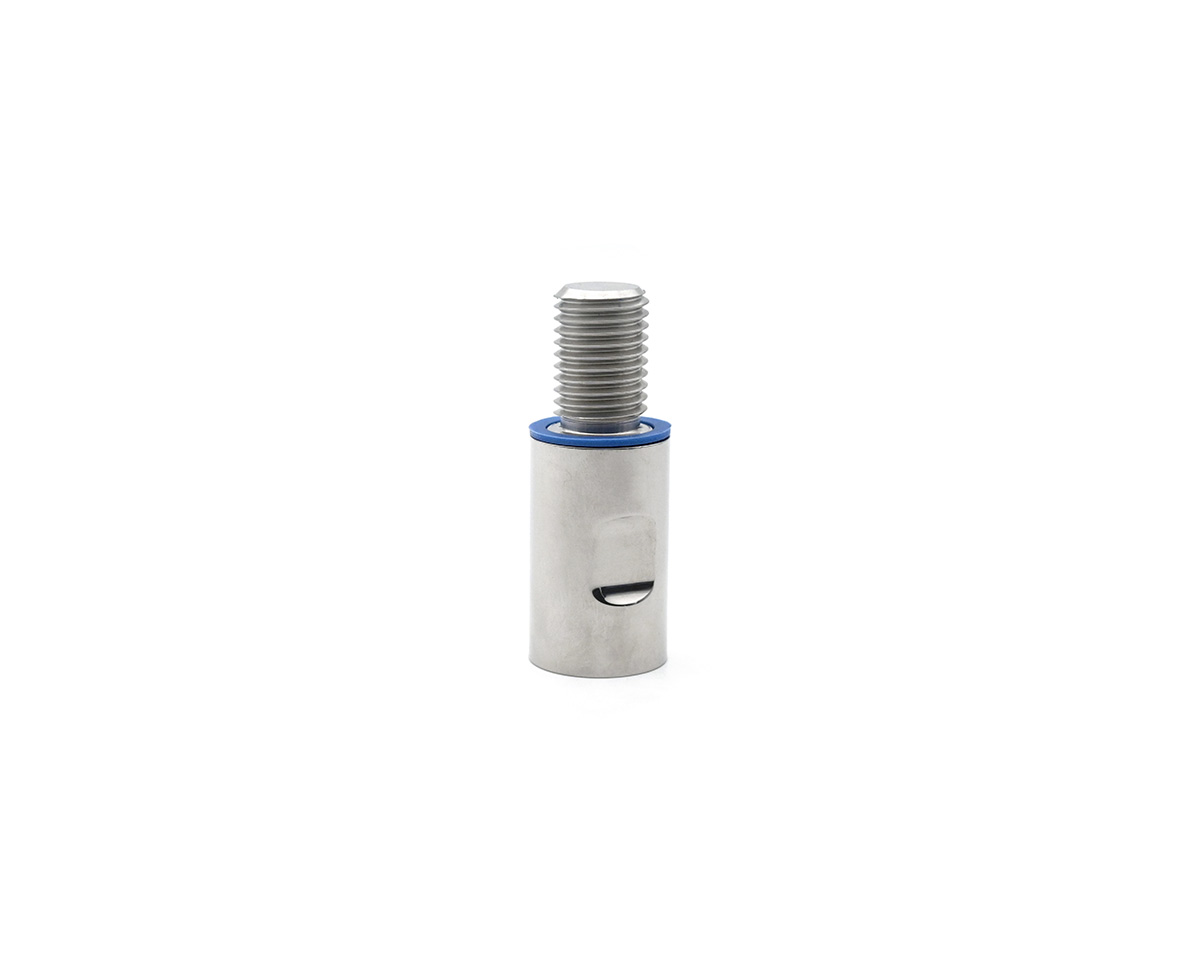

Spacer nut M16 x 40 3A

Type No.: 458PROL2450/3A

From €23.10*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 193 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
