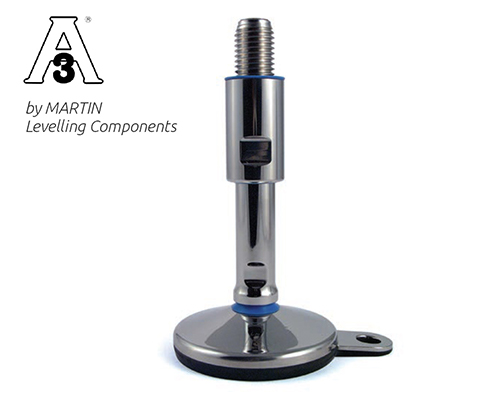

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M12 x 140 mm, Lug, NBR

EAN 4061408109975

Type 45827120F/3A

Optimize your installations with the TEKNO-HYGIENIC 3-A levelling foot. Made of stainless steel and certified for hygiene, it supports static loads up to 10,000 N while offering a versatile adjustment range of 45 mm and a 15° articulated screw for precise leveling.

Robust stainless steel construction ensures durability and corrosion resistance
Features a 3-A Sanitary Standard certification, suitable for hygiene-sensitive applications
Adjustable articulated screw allows for an inclination of up to 15° for precise leveling
Total height of 191 mm with an adjustment range of 45 mm provides flexibility in installation
Equipped with a NBR anti-slip pad for enhanced stability and static load capacity of 10,000 N

Quantity	Price
From 1	€39.30*
From 13	€38.45*
From 41	€37.88*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€39.30* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	51-70
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	12
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

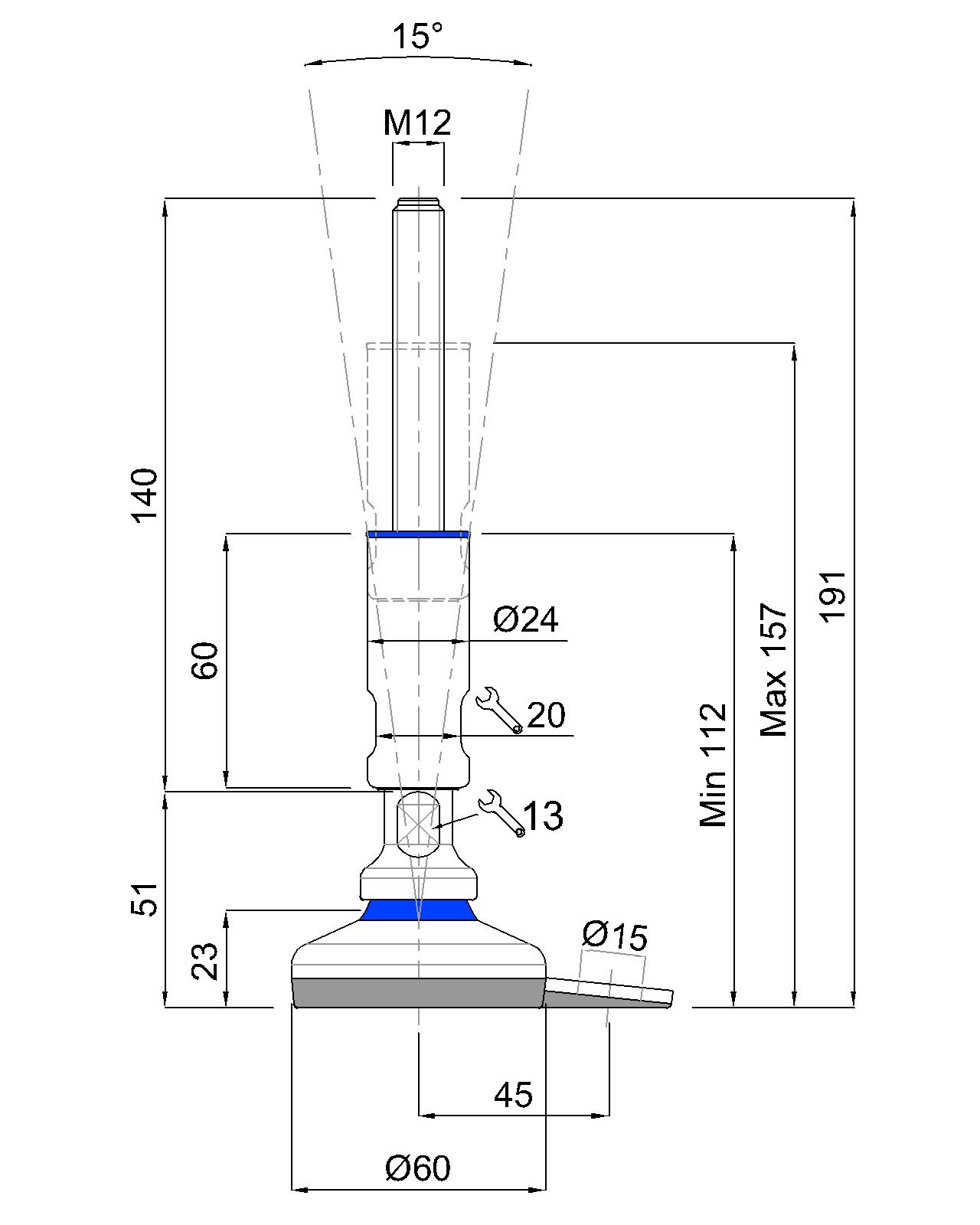

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M12 x 140 mm, Stainlees steel, Total height 191 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip NBR black, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
