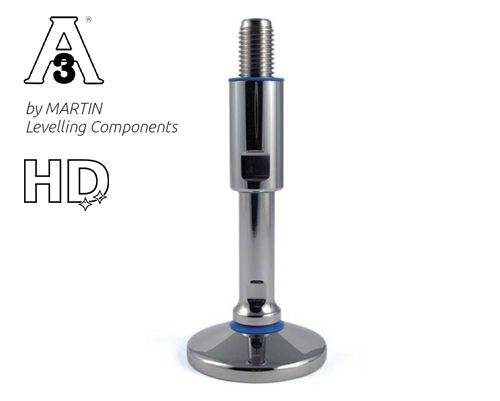

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M12 x 140 mm
EAN
4061408109944
Type
45827320/3A
Discover the TEKNO-HYGIENIC 3-A leveling foot, crafted from stainless steel, ensuring durability and compliance with 3-A Sanitary Standards. Featuring a 15° articulated screw and a 45 mm adjustment range, it supports static loads up to 25,000 N, ideal for demanding industrial environments.
| Quantity | Price |
|---|---|
| From 1 |
€45.58*
|
| From 13 |
€44.59*
|
| From 41 |
€43.93*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M12 x 140 mm, Stainlees steel, Total height 185 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Static load 25.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
