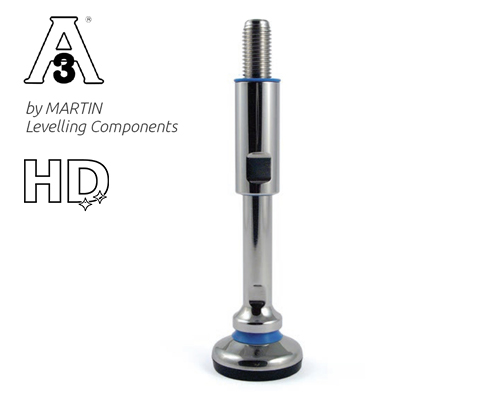

Levelling foot TEKNO-HYGIENIC 3-A, Ø 50 mm Stainless steel, M12 x 140 mm, NBR
Ensure stability and hygiene with the TEKNO-HYGIENIC 3-A levelling foot. Featuring a stainless steel design, 15° articulation, and a robust static load capacity of 5,000 N, it's perfect for demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€37.25*
|
| From 13 |
€36.44*
|
| From 41 |
€35.90*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

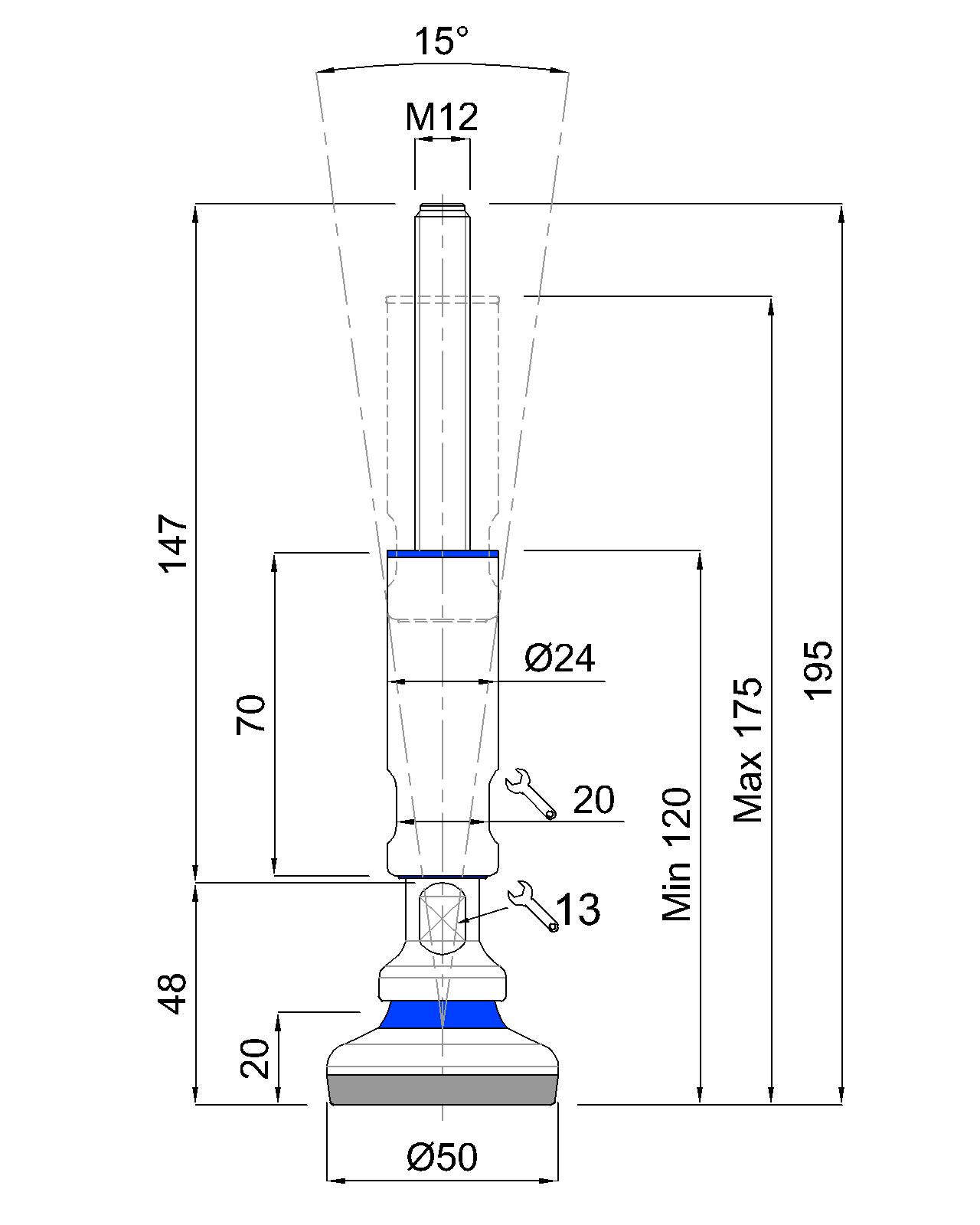

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
