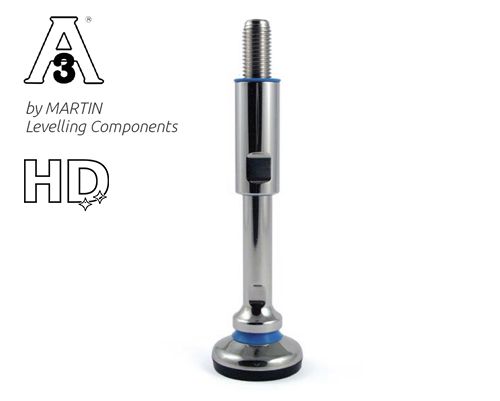

Levelling foot TEKNO-HYGIENIC 3-A, Ø 50 mm Stainless steel, M12 x 140 mm, NBR
EAN
4061408034680
Type
45827100/3A
Enhance your industrial setup with the TEKNO-HYGIENIC 3-A leveling foot. Crafted from stainless steel, it offers exceptional durability, a 15° adjustment angle, and a hygiene certification for optimal performance in sanitary environments.
| Quantity | Price |
|---|---|
| From 1 |
€36.13*
|
| From 13 |
€35.34*
|
| From 41 |
€34.82*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 50 mm Stainless steel, M12 x 140 mm, Stainlees steel, Total height 188 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Antislip NBR black, Static load 5.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
